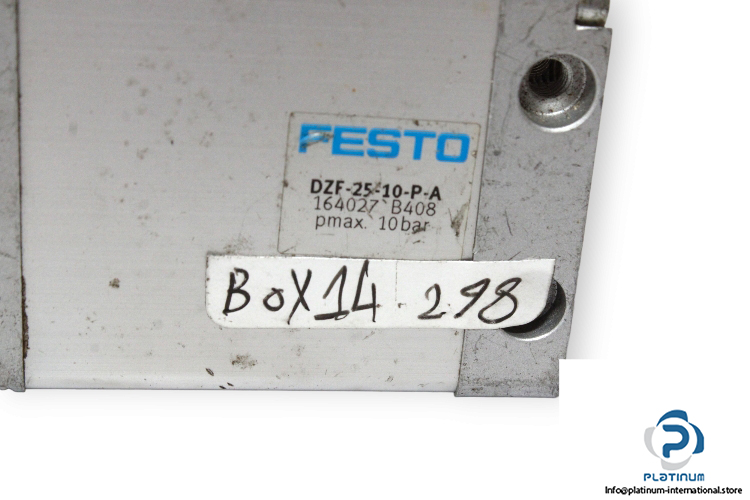

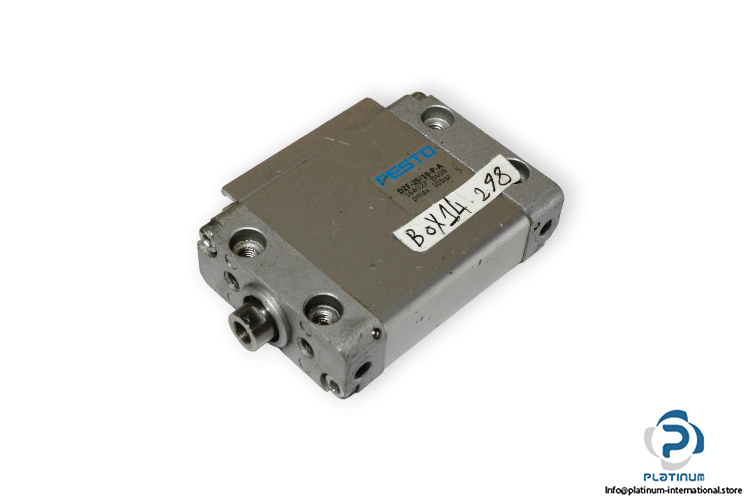

Festo 164027 Flat Cylinder

Manufacturer: FESTO

Type: Flat cylinder

Model: DZF-25-10-P-A

Part No.: 164027



Stroke Length: 10 mm

Piston Diameter: 25 mm

Max. angle of rotation of the piston rod +/-: 1 deg

Cushioning: Elastic cushioning rings/pads at both ends

Max. Operating Pressure: 10 bar

Mode of operation: Double acting

Position Sensing: For proximity sensing

Max. torque for protection against rotation: 0.5 Nm

Theoretical force at 6 bar, retracting: 247 N

Pneumatic Connection: 5 mm

Temperature: -20 … 80 °C
