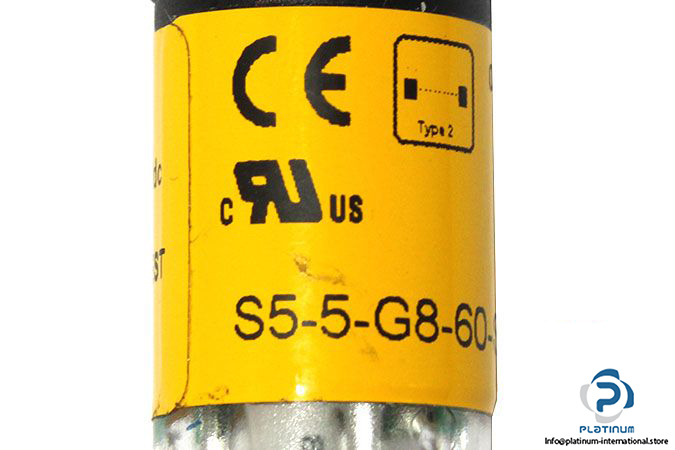

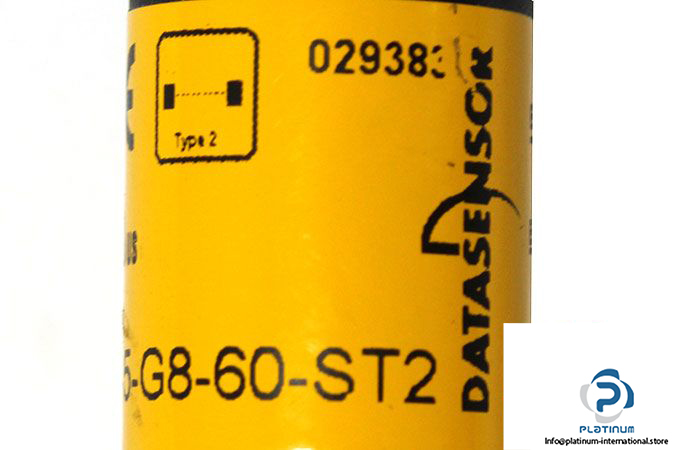

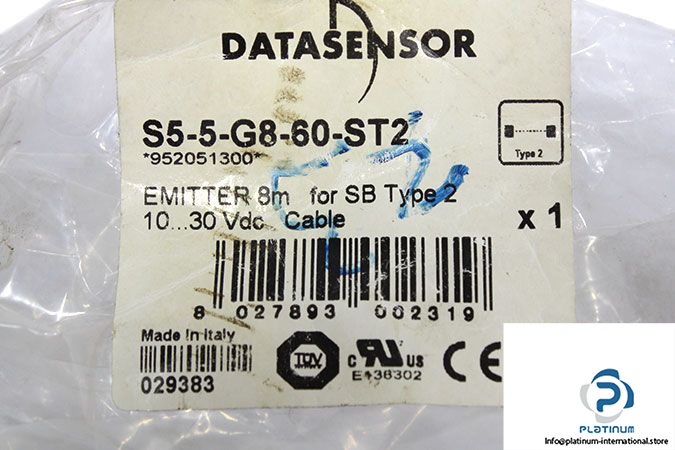

Datasensor S5-5-G8-60-ST2 Through Beam Photoelectric Sensor

Manufacturer: Datasensor

Type: Through-beam photoelectric sensor,  Emitter Sensor

Model: S5-5-G8-60-ST2

Order No.: 952051300



Sensing Distance: 8 m

Output: PNP

Power Supply: 10 … 30 V DC

Current: 200 mA max

Consumption current: 30 mA max

Switching frequency: 250 Hz max

Light emission: infrared LED 880 nm

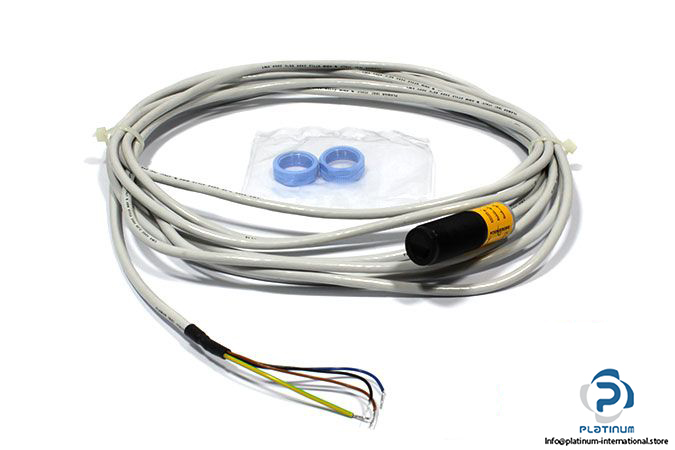

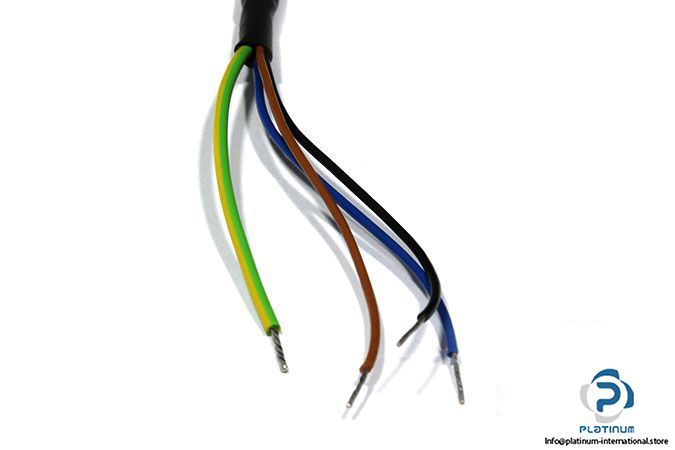

Electrical Connection: Cable 5 m, 4-wire

Sensor Diameter, Length: M18,  70 mm

Housing material: ABS

protection class: IP67

Operating temperature: -25 … +55 °C

Weight: 0.2 kg
