Dold AI 930 24 VAC Time Relay
Kullanılmış
Stokta1 birimSevkiyata hazır
Zaman Rölesi DOLD AI930, 0,1 ila 1 s ölçüm aralığı, 24 V AC bobin voltajı ve IP40/IP20 koruması ile enerji tüketiminin doğru izlenmesini sağlar. Endüstriyel kullanım için kompakt ve güvenilir.
24vACAI930AutomationCompactComponentConsumptionControlDelayDoldElectricalIndustrialmonitoringPowerRelayShortTime
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

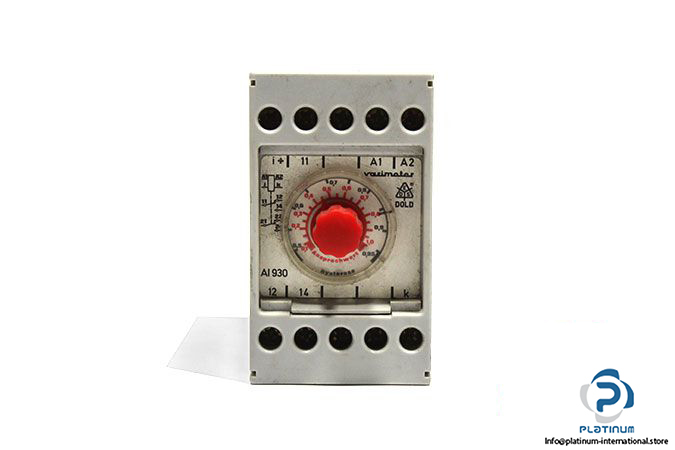

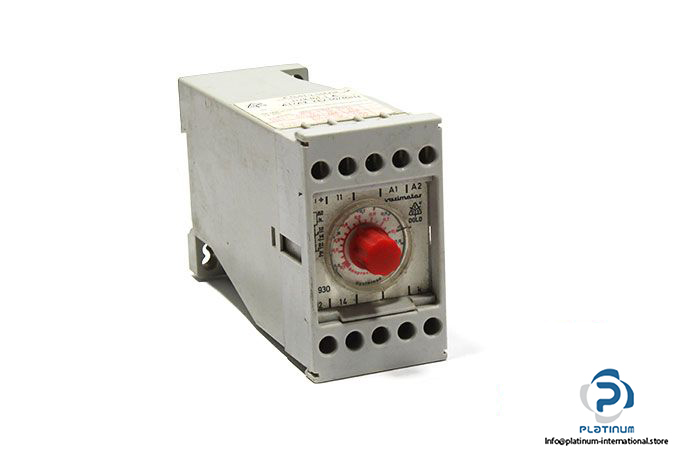

DOLD AI930 Time Relay
The DOLD AI930 is a precise and reliable time relay engineered for monitoring the power consumption of electrical consumers. With robust protection, compact dimensions, and dependable contact ratings, it is suitable for a wide range of industrial control applications.
Manufacturer: DOLD
Type: Time Relay
Model: AI930
| Application | For Monitoring the Power Consumption of Electrical Consumers |
| Coil Voltage | 24 V AC |
| Frequency | 50 / 60 Hz |
| Measuring Range | 0.1 / 1 s |
| Contact Rating @cos (1 / 0.7) | 110 V AC, 3 A / 220 V AC, 3 A / 24 V AC, 3 A |
| Protection Class Housing/Terminal | IP40 / IP20 |
| Temperature Range | -20 / +60 °C |
| Dimensions | 45 x 77 x 127 mm |
