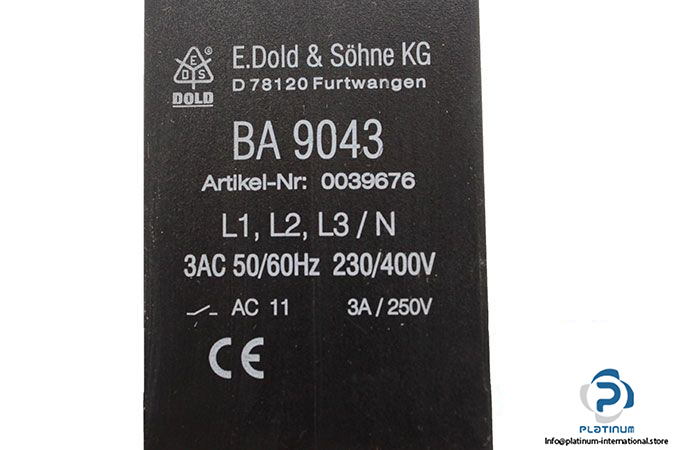

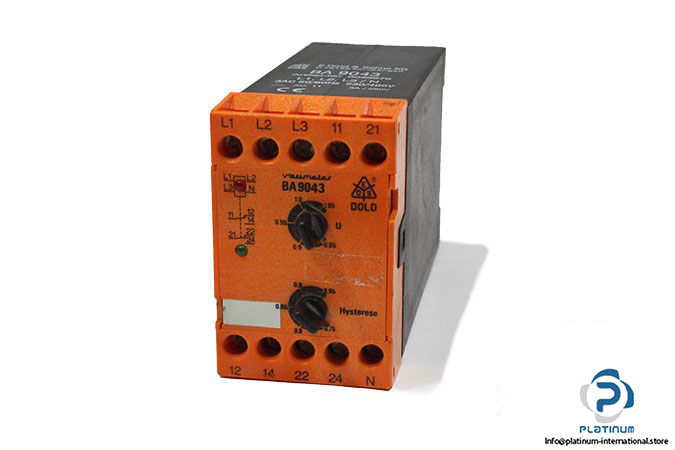

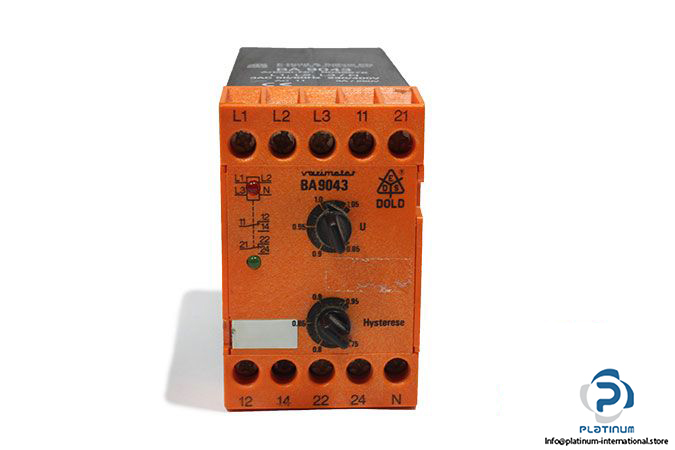

Dold BA 9043 Varimeter Undervoltage Relay

Manufacturer: DOLD

Type: Varimeter Undervoltage Relay

Model: BA 9043

Art No.: 0039676

Application: Undervoltage detection in 3 phase systems, for industrial and railway applications

Nominal Voltage: 3 phase 400 / 230 VAC

Frequency: 50/60 Hz

Fixing Torque: 0.8 Nm

Contact Voltage: 250 V, 3 A

Degree of Protection Housing / Terminals: IP 40 / IP 20

Output Contacts: 2 changeover contacts

Operation Temperature: – 20 … + 60°C

Dimensions: 45 X 73 X 132 mm

Weight: 0.31 Kg
