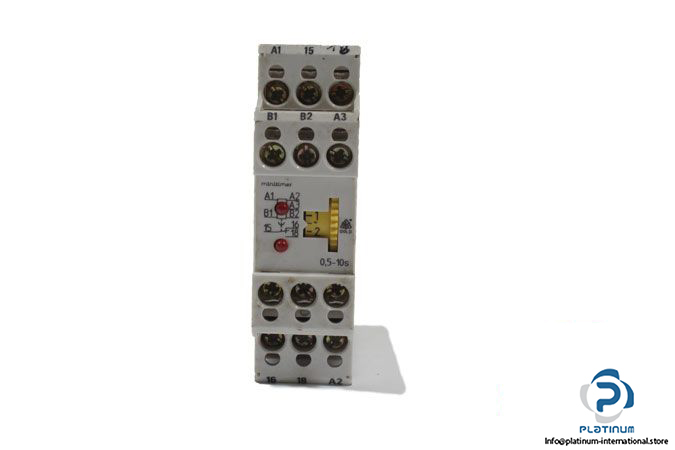

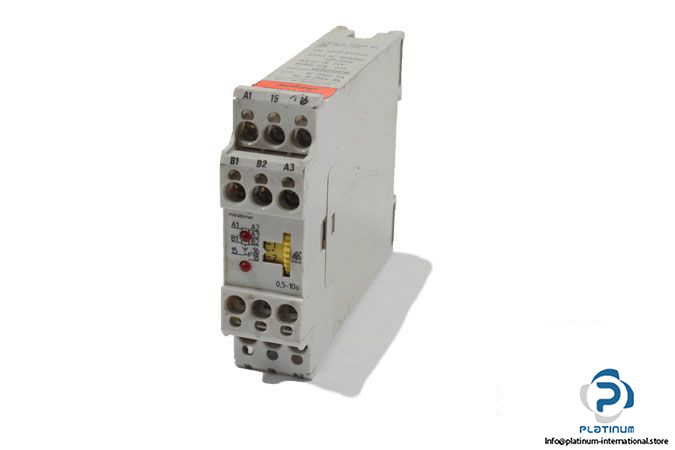

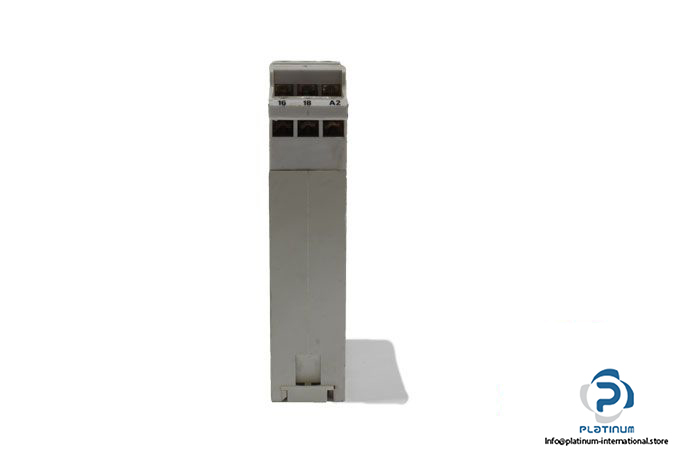

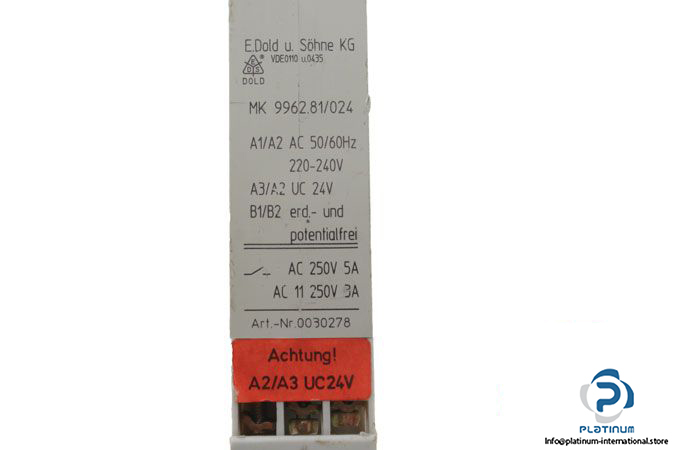

Dold MK 9962.81/024 Timer

Manufacturer: DOLD

Type: Timer, Electronic

Model: MK 9962.81/024

Article No.: 0030278

Applications: Time-dependent controllers

Voltage: 220 … 240 VAC

Nominal Frequency: 50/60 Hz

Time Range: 15 … 300 s

Fixing Torque: 0.4 Nm

Wire Connection: 2 X 1.5 mm² solid or 2 X 1.0 mm² stranded wire with sleeve

Degree of Protection Housing / Terminals: IP 40 / IP 20

Output: 2 changeover contacts

Dimensions: 22.5 X 82 X 99 mm

Operation Temperature: – 20 … + 60 °C

Weight: 0.18 Kg
