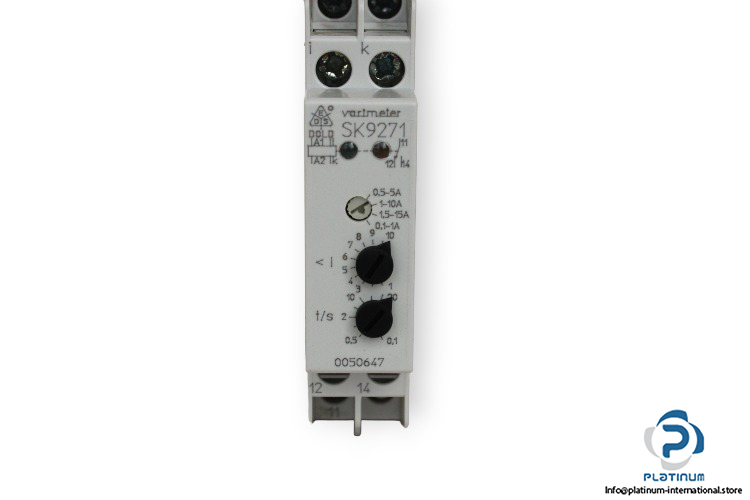

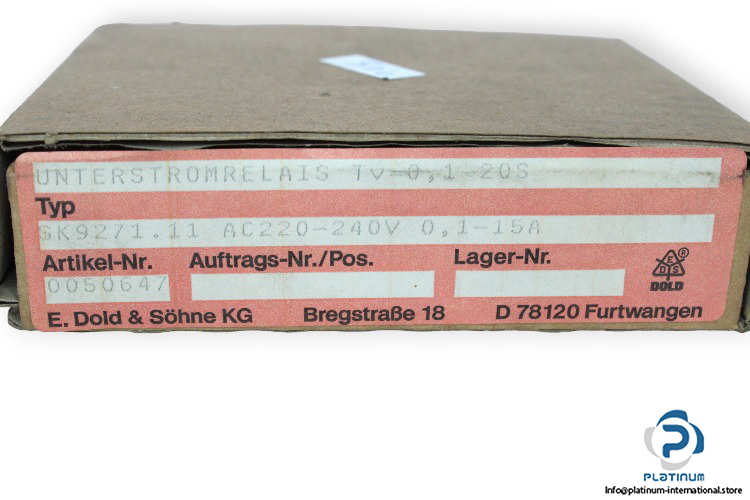

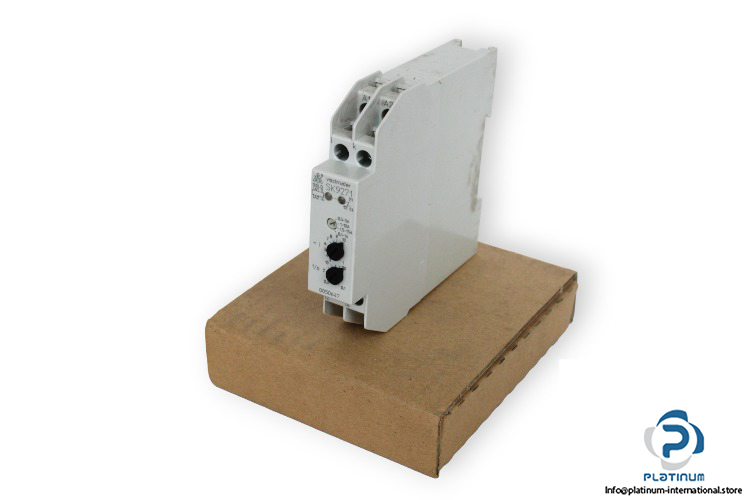

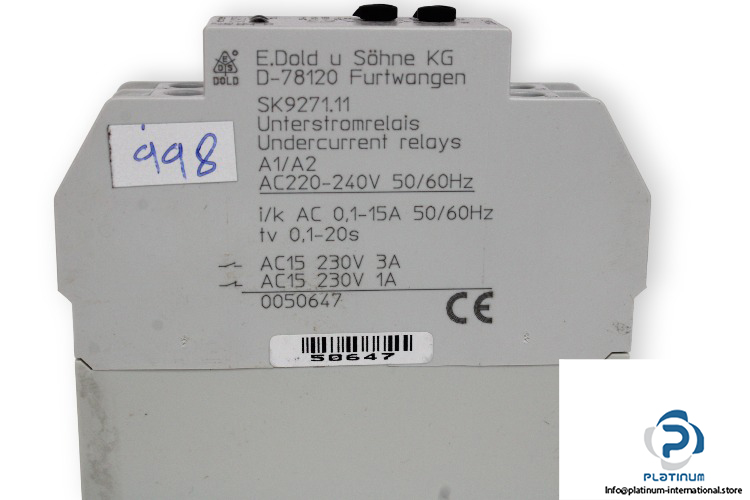

Dold SK9271.11 Undercurrent Relay

Manufacturer: Dold
Type: Undercurrent Relay
Model: SK927111

Auxiliary voltage: 220 … 240 V AC
Thermal current Ith: 5 A
Nominal consumption power: 2.3 VA
Current Measuring range: 0,1 … 15 A
Switching delay range: 0,1 … 20 s
Contacts: 1 changeover contact
AC15: 3 A/230 V AC
AC15: 1 A/230 V AC
Frequency: 50/60 Hz
Mounting: DIN rail
Degree of protection (terminal): IP20
Operation Temperature: -20 … + 60°C
Dimensions: 35 x 90 x 61 mm
