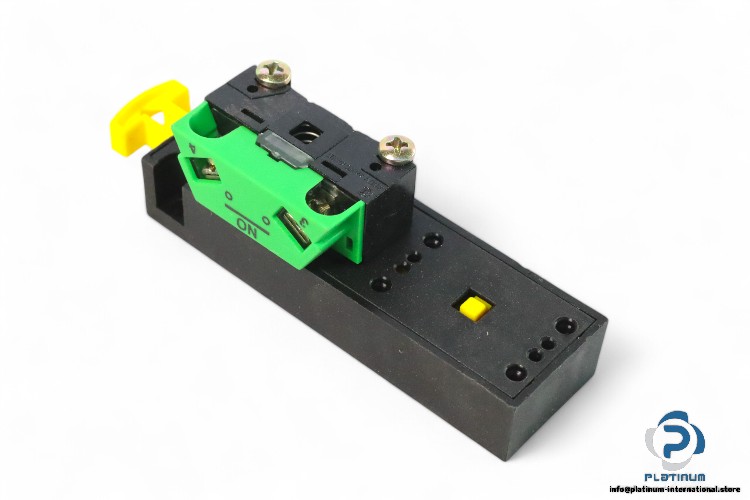

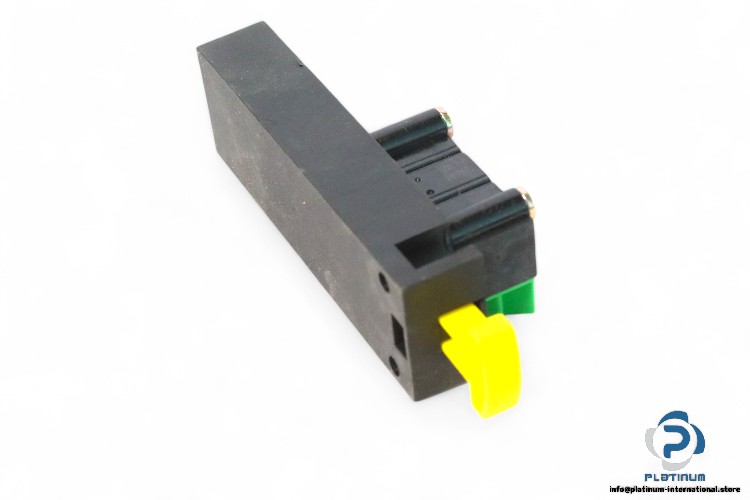

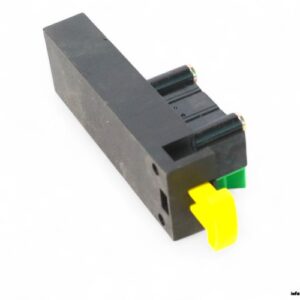

Elfin 050FI10 Interlock Limit Switch

Manufacturer: Elfin
Type: Interlock Limit Switch
Model: 050FI10

Rated insulation voltage Ui: 690V – Uimp 4KV
Rated thermal current Ith: 10A
Actuation speed: Min. 5mm/s – Max 20mm/s
AC Perfomances: 24V-10A, 120V-6A, 240V-3A, 600V-1.2A
DC Perfomances: 24V-5A, 120V-1.1A, 240V-0.55A
Contact movement: Slow action contact
Terminal screw material: Zinc plated steel
Terminal screw: Tightening torque 0.8 … 1 Nm
Terminal screw head shape:
Combined: cross Phillips2 or slotted flat D.5mm max
Protection degree: IP20
Housing material: PA Polyamide
Operating temperatures: -25 … 65°C
