Embraco NEU6187Z Compressor

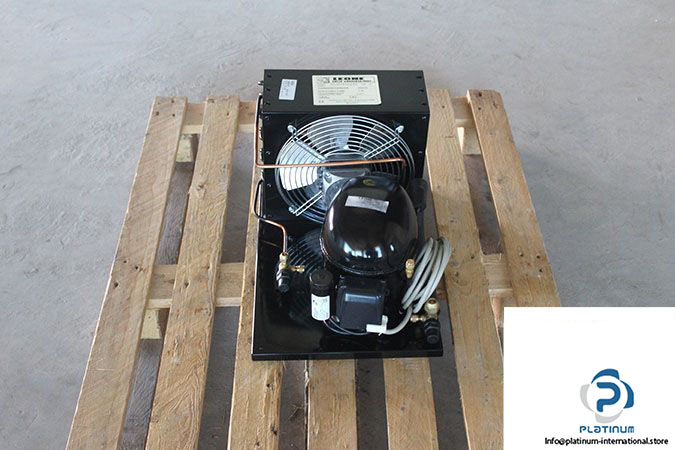

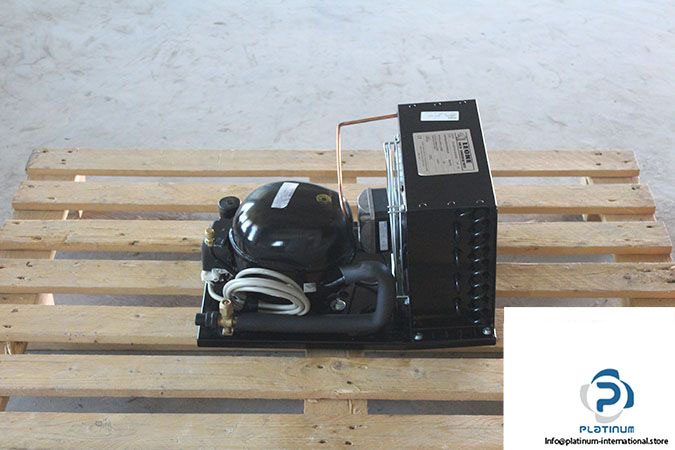

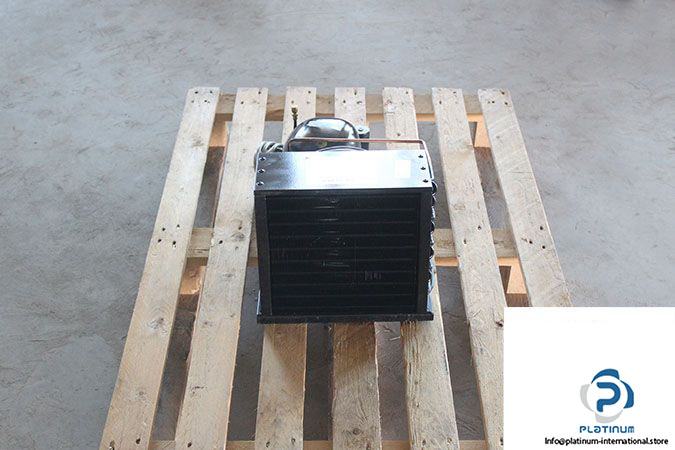

EMBRACO NEU6187Z COMPRESSOR WITH EBM PAPST FAN

This high-efficiency single-phase compressor unit from Embraco is engineered for medium and low temperature refrigeration applications. It delivers stable operation with a robust 1/3 horsepower motor, supported by a durable EBM Papst axial fan for consistent airflow and cooling. Ideal for commercial refrigeration systems using R-404a refrigerant.

Manufacturer: Embraco
Type: Compressor
Model: NEU6187Z
Part No.: P180DP9JI
Engineering Nr.: 267JN51

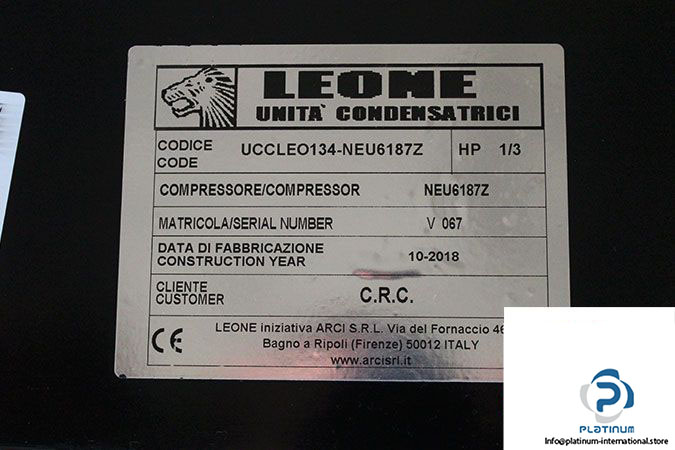

Code: UCCLEO134- NEU6187Z
Phase: 1~ Single Phase

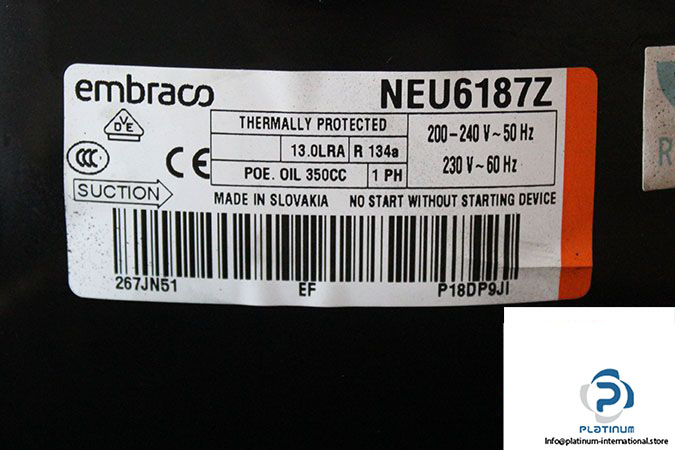

Technical Information “ Compressor

• Horsepower [Hp]: 1/3
• Rated Voltage [V]: 200 to 240 / 230
• Displacement [cm³]: 9.99
• Bore [mm]: 26.497
• Stroke [mm]: 18.12
• Range Temperature [°C]: -15 to 10
• Lubricants Type/Viscosity: ESTER / ISO22
• Lubricant Charge [ml]: 350
• Frequency [Hz]: 50/60
• Locked-Rotor Amperes [A]: 13.0
• Refrigerant: R-404a

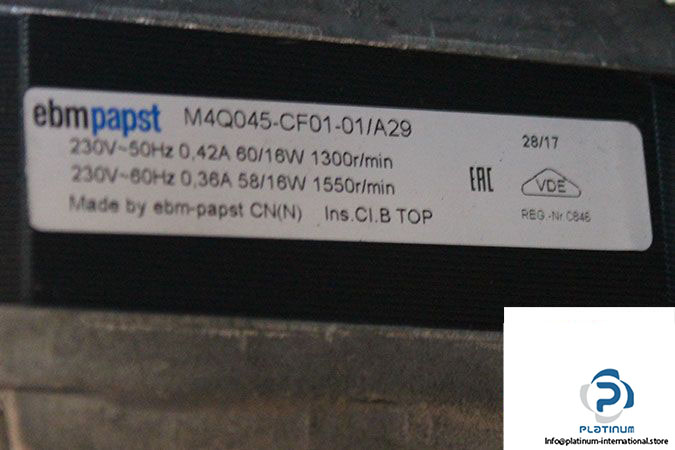

Technical Information “ Fan

• Manufacturer: Ebmpapst
• Type: Fan
• Model: M4Q045-CF01-01
• Nominal Voltage [V]: 230 / 230
• Current Draw [A]: 0.42 / 0.36
• Power Consumption [W]: 60 / 58
• Power Output [W]: 16 / 16
• Frequency [Hz]: 50 / 60
• Speed [rpm]: 1300 / 1550
• Ambient Temperature [°C]: -30 to 40
• Insulation Class: B
