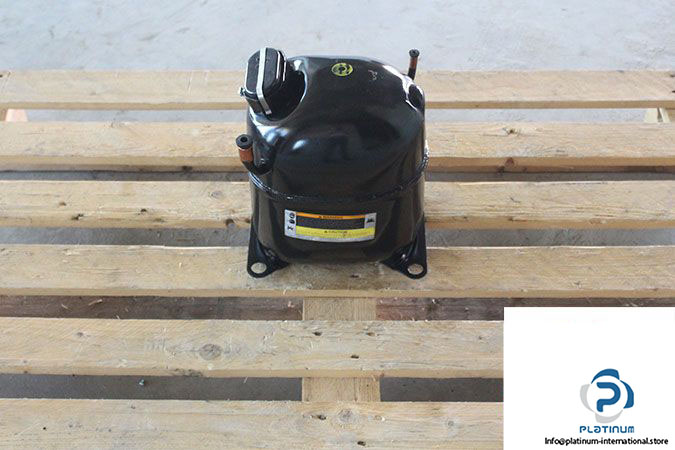

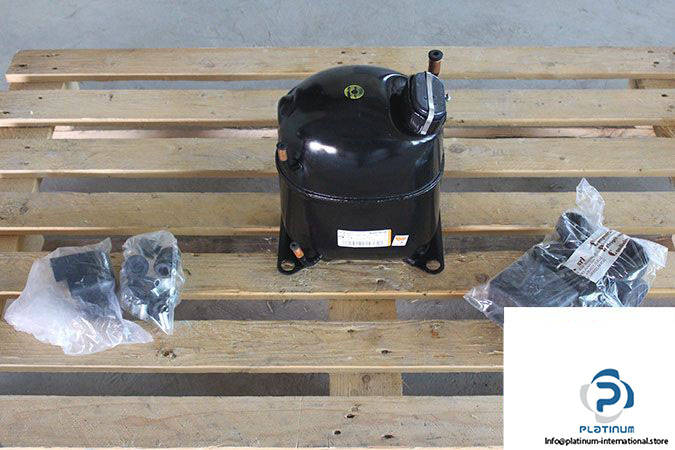

Embraco NJ9238GK Compressor
Stokta1 birimSevkiyata hazır
1,5 HP, 230 V nominal değerine ve R-134a uyumluluğuna sahip tek fazlı Embraco kompresör. Orta sıcaklık soğutma sistemlerinde verimli soğutma için tasarlanmıştır.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
EMBRACO NJ 9238GK COMPRESSOR
The Embraco NJ 9238GK is a high-performance single-phase compressor designed for reliable and efficient refrigeration systems. With a 1.5 HP motor, advanced winding protection, and R-134a refrigerant compatibility, it delivers robust performance for medium-temperature applications.
Manufacturer: Embraco
Type: Compressor
Model: NJ 9238GK

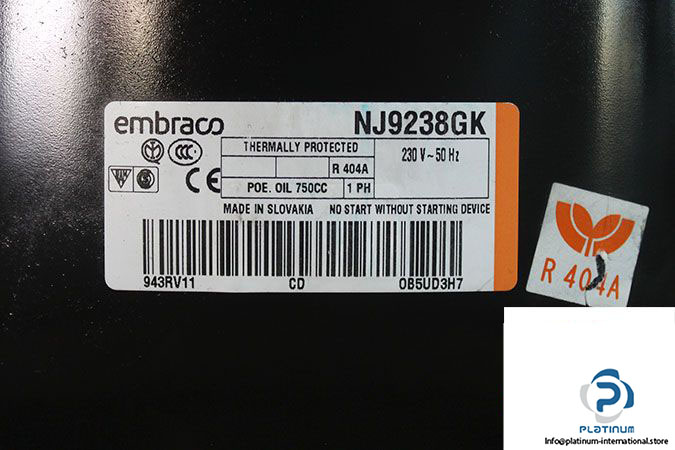

Part No.: OB5UD3H7
Engineering Nr.: 943RV11
Phase: 1~ Single Phase
| Horsepower | 1 1/2 HP |
| Rated Voltage | 230 V |
| Displacement | 32.67 cm³ |
| Bore | 41.77 mm |
| Stroke | 23.85 mm |
| Maximum Winding Temperature | 130°C |
| Max Condensing Pressure (Operating) | 25.7 kgf/cm² |
| Max Condensing Pressure (Peak) | 28.7 kgf/cm² |
| Evaporating Temperature Range | -20 to 10°C |
| Frequency | 50 Hz |
| Refrigerant | R-134a |
| Lubricant Charge | 750 ml |
| Lubricant Type/Viscosity | ESTER / ISO22 |
