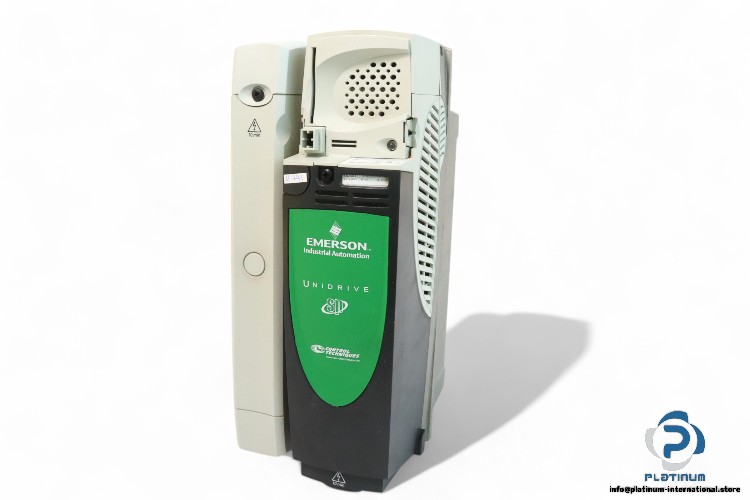

Emerson SP2403 Variable Speed Drive

EMERSON CONTROL TECHNIQUES Variable Speed Drive – Model SP2403

The EMERSON CONTROL TECHNIQUES SP2403 Variable Speed Drive from the renowned Nidec Unidrive SP range is engineered to deliver precision control, energy efficiency, and reliable performance in industrial motor control applications. Designed to meet the demanding requirements of modern automation systems, this drive ensures optimal speed and torque control.

Key Features:

• Input Supply Voltage: 3-Phase 380 / 480 V AC
• Input Rated Current: 25 A
• Input Frequency: 50 / 60 Hz
• Output Rated Voltage: 3-Phase 0 / 480 V AC
• Output Rated Current: 25 / 29 A
• Output Power: 11 / 15 kW
• Protection Class: IP20
• Dimensions: 368 x 155 x 219 mm

With its robust design and advanced control features, the SP2403 Variable Speed Drive is ideal for applications in manufacturing, HVAC systems, conveyor systems, and other critical industrial processes. Experience enhanced efficiency and precision with EMERSON CONTROL TECHNIQUES.
