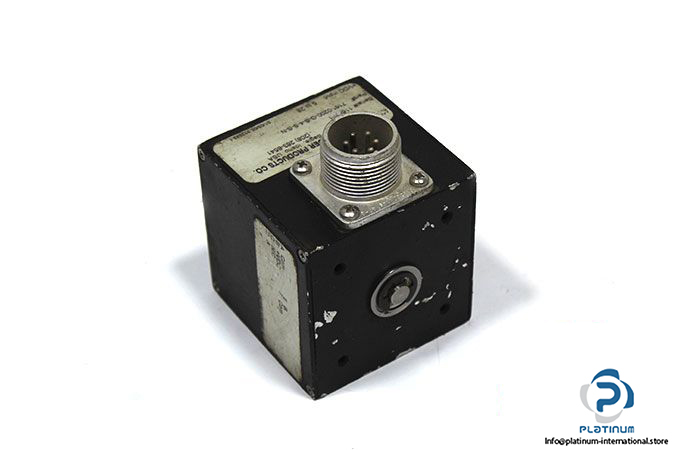

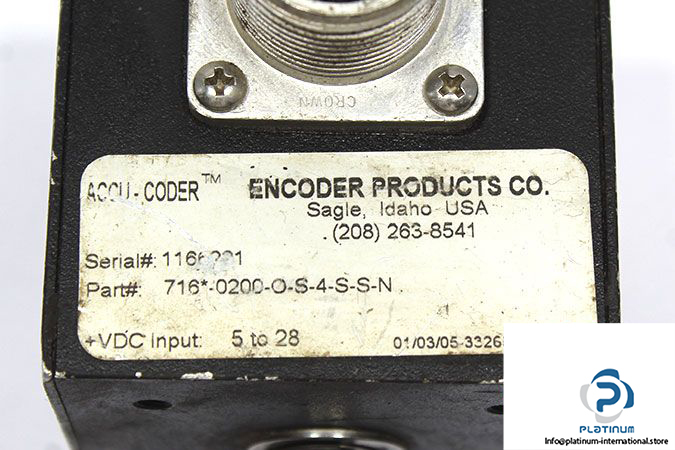

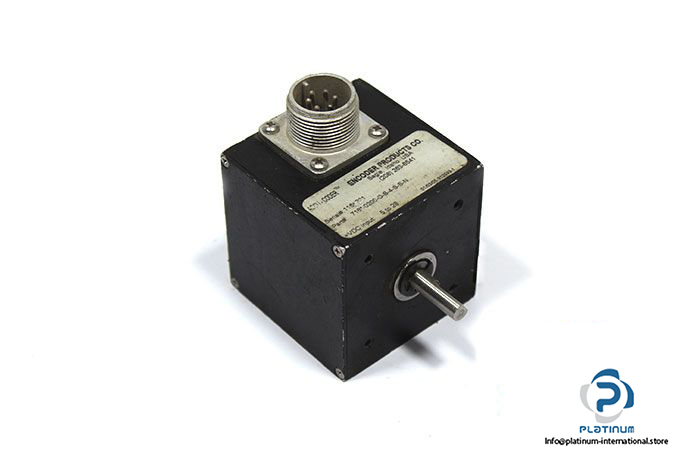

Encoder Products 716*0200-O-S-4-S-S-N Incremental ‎Shaft Encoder

Name: ENCODER PRODUCTS 716*0200-O-S-4-S-S-N INCREMENTAL ‎SHAFT ENCODER
Brand: ENCODER PRODUCTS CO
SKU: 979933
Availability: LimitedAvailability

encoder-products-7160200-o-s-4-s-s-n-incremental-shaft-%e2%80%8eencoder-1

encoder-products-7160200-o-s-4-s-s-n-incremental-shaft-%e2%80%8eencoder-2

encoder-products-7160200-o-s-4-s-s-n-incremental-shaft-%e2%80%8eencoder-3

Kullanılmış

Stokta1 birimSevkiyata hazır

ENDÜSTRİYEL ENKODER Encoder Products Co tarafından 200 CPR, tek 1/4 inç şaft, 6 pinli MS konektörü ve pull-up direnç çıkışına sahip Precision 716 serisi enkoder. 6000 RPM ve 5“28 VDC girişe kadar destekler.

Üretici

ENCODER PRODUCTS CO

SKU

979933

Kategori

Rotary Encoders

Koşul

Kullanılmış

200 5-28V 6-Pin 716 Co CPR Encoder Feedback Industrial Motion ms Output Precision products Pull-Up Series shaft

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

ENCODER PRODUCTS CO 716*0200-O-S-4-S-S-N ENCODER

Engineered for reliability and precision, the 716 series encoder from Encoder Products Co delivers dependable signal feedback for motion control applications. Designed to operate in demanding environments, it supports a wide input voltage range and high RPM, making it ideal for automated systems and industrial machinery.

Manufacturer: Encoder Products Co

Type: Encoder

Model: 716*0200-O-S-4-S-S-N

Ref No.: 01/03/05-3326

Cycles Per Revolution (CPR)	200
Output Type	Pull-Up Resistor
Shaft Diameter	1/4 in
Shaft Type	Single

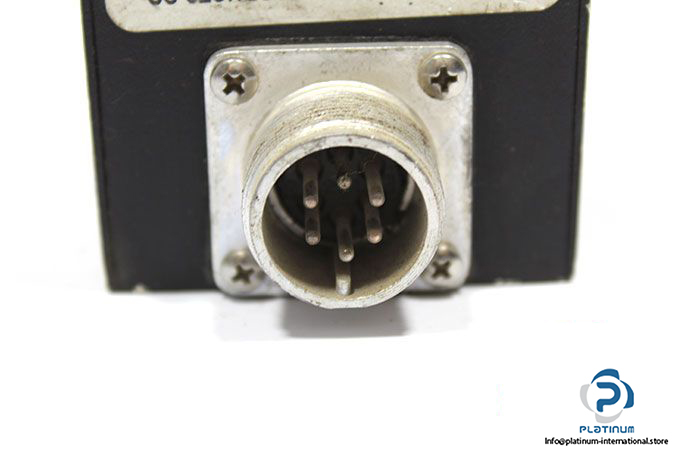

Connector Type	6-pin MS
Input Voltage	5 to 28 VDC
Input Current	Max. 80 mA
Rise Time	<1 µs
Speed	Max. 6000 RPM
Shaft Material	303 Stainless Steel
