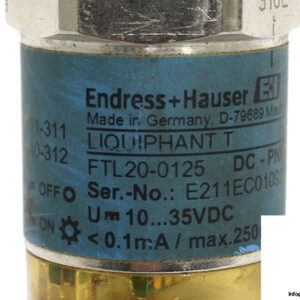

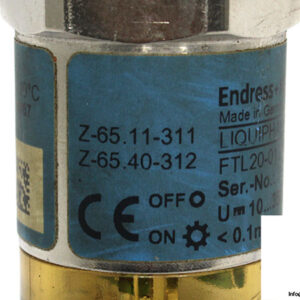

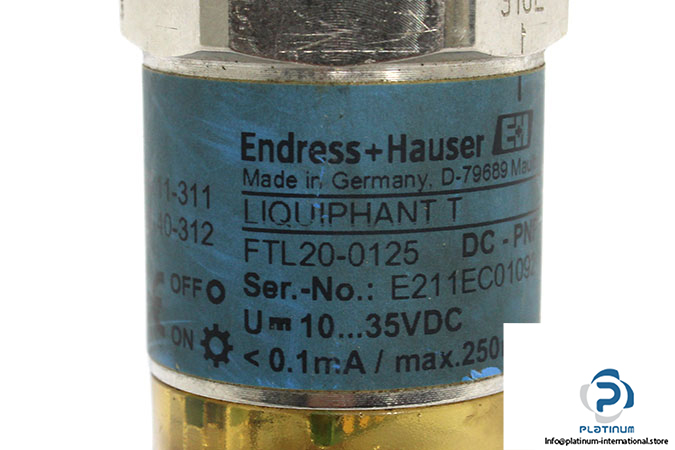

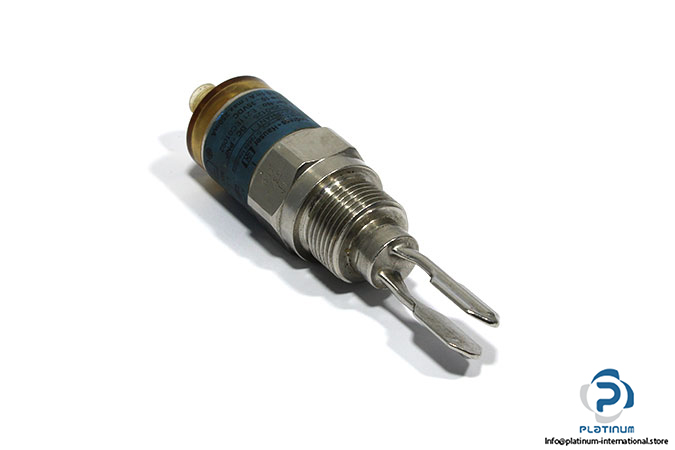

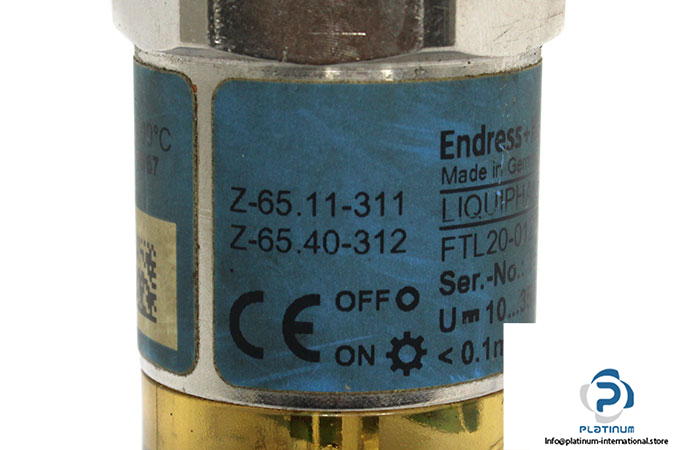

Endress Hauser FTL20-0125 Limit Switch

Manufacturer: Endress Hauser

Type: Limit Switch

Family: Liquiphant T

Model: FTL 20 0125

Application

The Liquiphant T FTL20 is a level limit switch for all kinds of fluids and is used in tanks, containers and pipelines. It is used in cleaning and filtering systems and coolant and lubricant tanks as an overspill protection or as a pump protector.

The FTL20 is ideal for applications which previously used float switches and conductive, capacitive and optical sensors.

It also works in applications which are unsuitable for these measuring methods due to conductivity, build-ups, turbulence, flows or air bubbles.

The FTL20 is not suitable for hazardous areas and areas where the medium temperature is above 150 °C.

For hygienic areas the use of FTL20H is recommended.

Power Supply: 10 … 35 V DC

Output: 3-wire, PNP 10… 35 V DC

Measured Variable: Density

Measuring range: > 0.7 g/cm3

Process Temp.: -40 … 150 °C

Process Density: > 0.7 g/cm3

Thread: ISO228 G ¾, 316L

Application; cable entry: 100 °C, Plug M12 IP67
