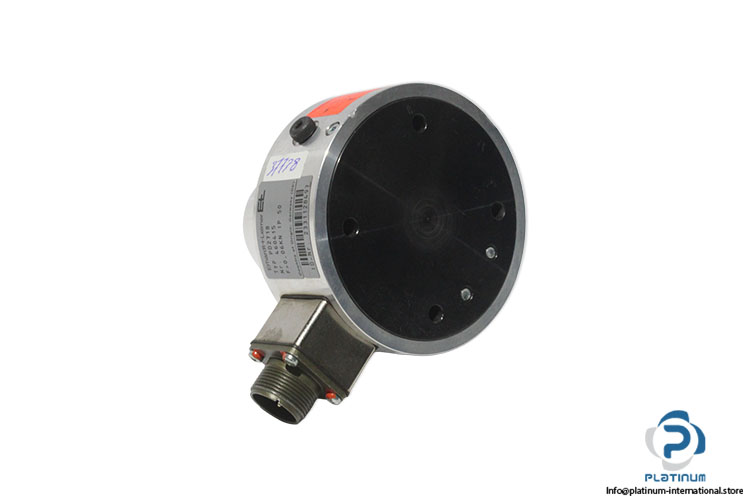

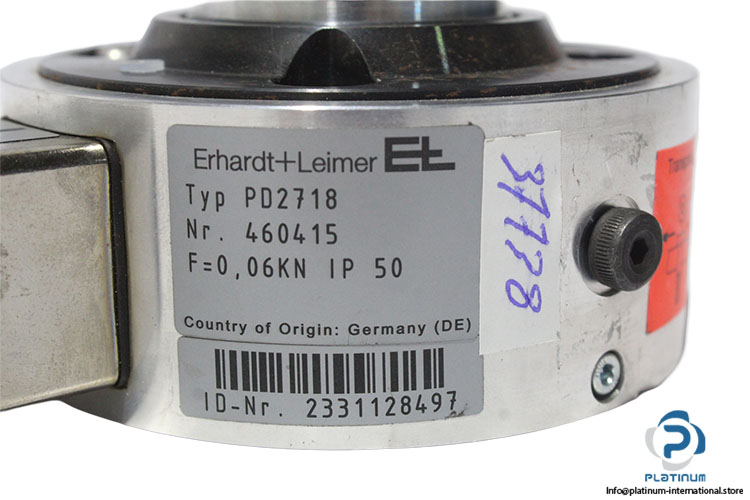

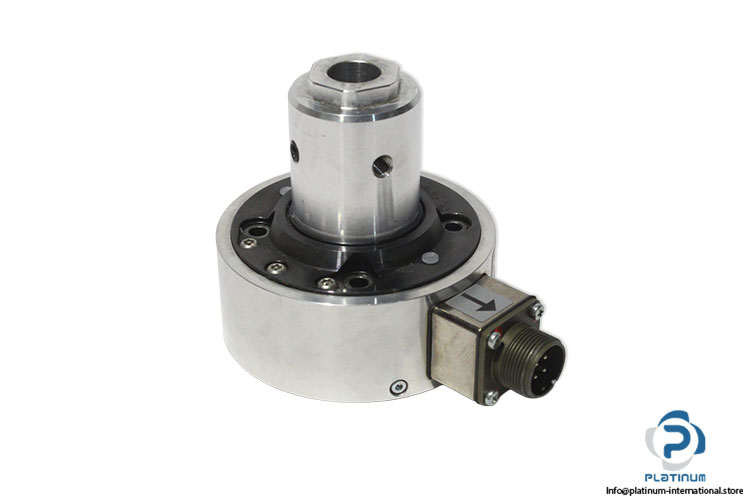

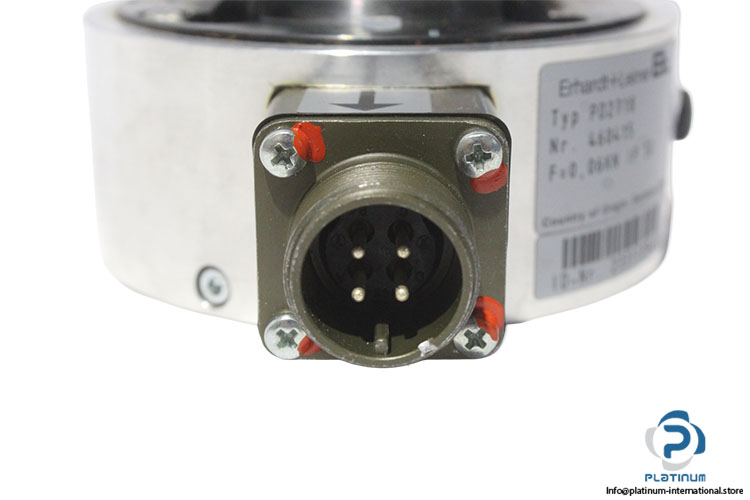

Erhardt+Leimer PD2718 Flange Load Cell

Stokta5 ünitelerSevkiyata hazır

511,11$

with 60 N nominal measuring force, 1 mV/V sensitivity, DMS full-bridge measurement, 0.5 accuracy class, and IP50 protection for precise industrial force measurement.

SKU
1093570
Kategori
Load Cells
Koşul
Yeni
Paylaş
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
Part No.460415
Code2331128497
Nominal measuring force FN60 N
Nominal characteristic value (sensitivity)1 mV/V
Measuring principleDMS full bridge
Nominal resistance of the DMS bridge700 Ohm
Nominal value10 V
Nominal measuring deflection0.3 to 0.4 mm
Accuracy class0.5
Resolution1:25
ambient temperature-10 to +60 °C
Protection ClassIP 50
ConditionNew
Stock keyJO-004
SKU1093570
Weight2,07
