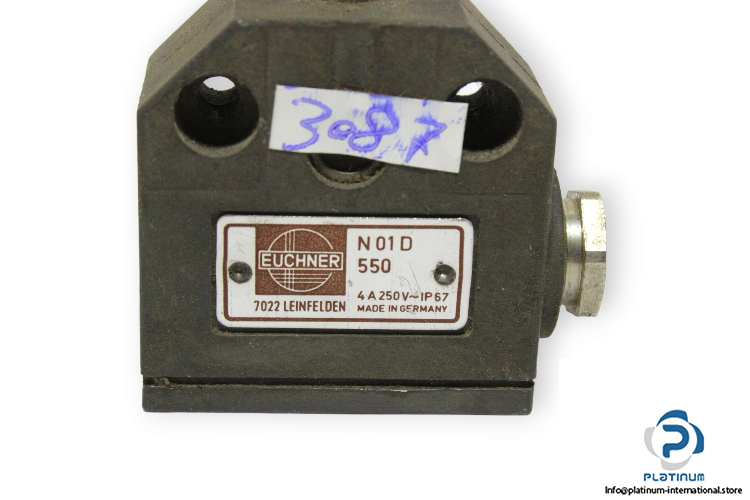

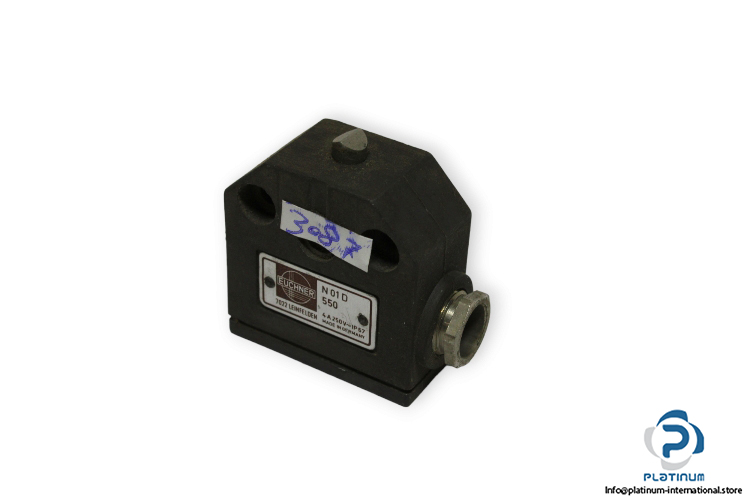

Euchner N01D550 Limit Switch

Manufacturer: EUCHNER
Type: Precision Single Limit Switch
Model: N01D550

Actuator Type: chisel plunger
Plunger material: stainless steel
Connection cross section: 0.14 … 1 mm²
Rated insulation voltage Ui: 250 V
Short circuit protection according to IEC 60269-1: 6A gG
Switching current: min. at DC 24V 10 mA
thermal rated current Ith: 6 A
Approach speed: 0.01 … 20 m/min
Actuating force: 15 … 20 N
Rated impulse withstand voltage Uimp: 2.5 kV
Connection: Cable entry
Protection class: IP67
Ambient temperature: -5 … 80 °C
