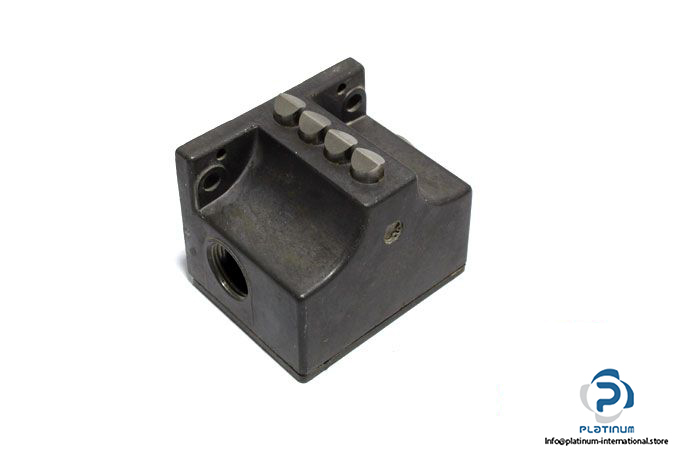

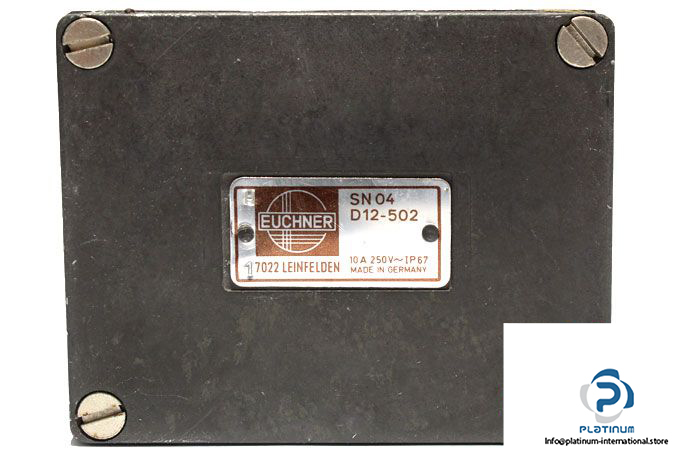

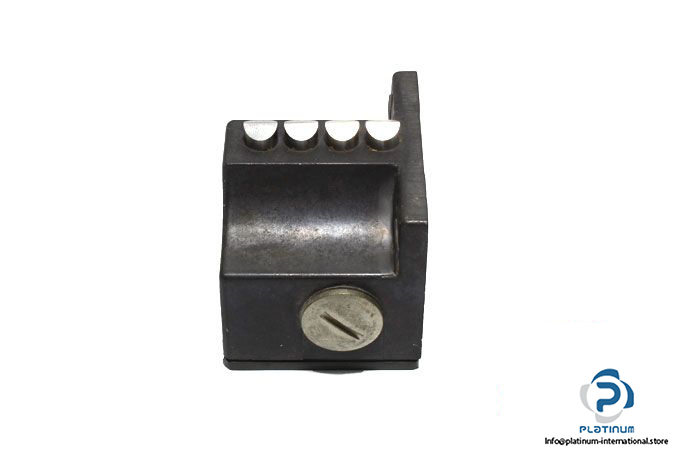

Euchner SN04 D12-502 Limit Switch

Manufacturer: EUCHNER

Type: LIMIT SWITCH

Model: SN04D12-502

Output Configuration: 2 Normally open + 2 Normally closed

Thermal Rated Current I_{th: 8 A}

Contact Operation: Snap Action

Actuator Type: Chisel Plunger

Number of Plungers: 4

Plunger Spacing: 12 mm

Design: upright

Housing Material: Die-Cast Aluminum, Anodized

Approach speed for Plunger: 80 m/min

Ambient Temperature: 5 … 80 °C

Degree of Protection: IP67

Weight: 0.4 kg
