Eurotherm 2500M/AI2 Analog Input Module
Analog Giriş Modülü Eurotherm 2500M/AI2 Analog Giriş Modülü 2 kanallıdır, çeşitli giriş türlerini destekler ve 0.003%'ten daha iyi doğrusal hassasiyet sunar. Çok yönlü ve hassas ölçümler gerektiren endüstriyel uygulamalar için idealdir.

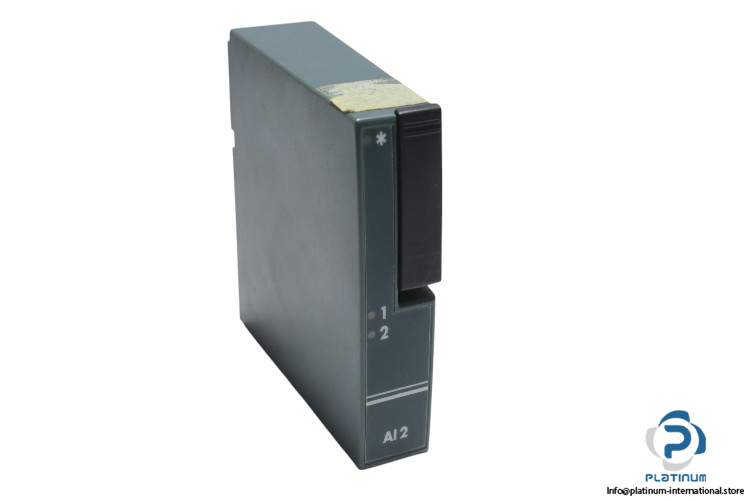

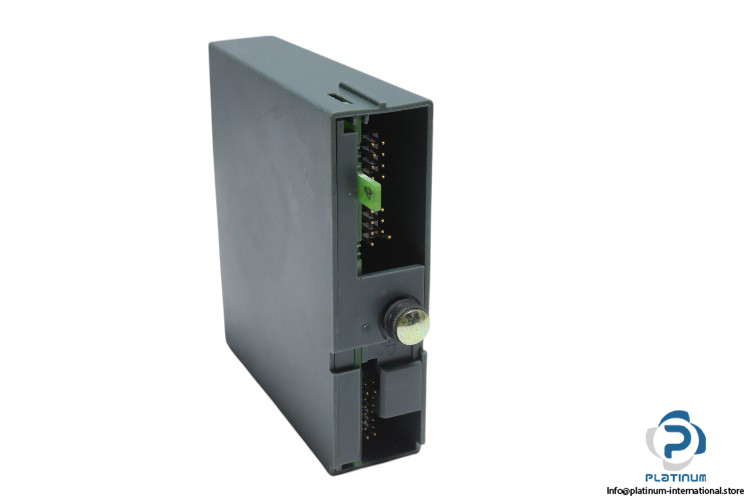

Eurotherm 2500M/AI2 Analog Input Module
The Eurotherm 2500M/AI2 Analog Input Module offers versatile and reliable analog input capabilities for a wide range of industrial applications. Designed to support multiple input types including TC, RTD, mA, mV, Potentiometer, and more, this module ensures high precision and flexibility in measurement.
Manufacturer: Eurotherm
Type: Analog Input Module
Model: 2500M/AI2

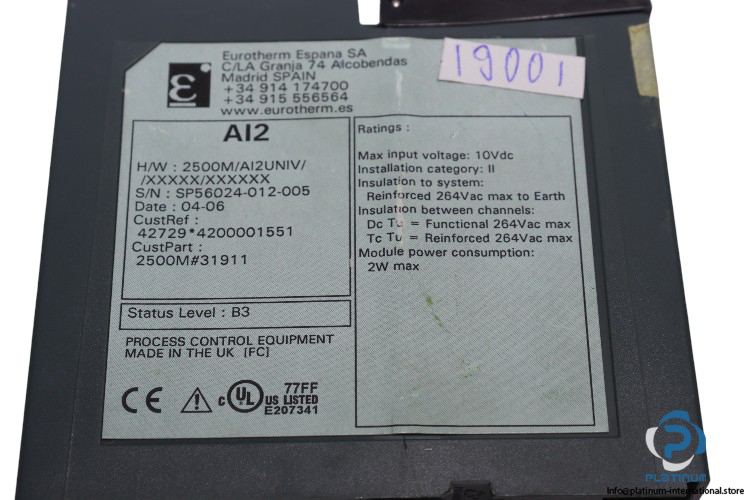

Part No.: 2500M/AI2UNIV/XXXXX/XXXXXX
This module is ideal for precise industrial measurements and applications, providing superior performance with exceptional linearity, resolution, and signal rejection.
| Input Voltage | 10 V DC |
| No. of Channels | 2 |
| Input Types | TC, RTD, Volts, mA, mV, Potentiometer, Pyrometer, Zirconia probe |
| Functional Voltage | 264 V AC |
| Voltage Range | -150mV to +150mV at input impedance >100M„¦ |
| Current Range | -22mA to +22mA with 5„¦ burden in the Terminal Unit |
| Series Mode Rejection | 60dB (50Hz to 60Hz, 1mA rms) |
| Common Mode Rejection | 120dB (50Hz to 5kHz, 50V rms) |
| Current Consumption | 100mA max |
| Power Consumption | 2 W max. |
| Ohms Range | 0 to 600 ohm 3- or 4-wire lead compensation |
| Resolution | Better than 0.001% of range |
| Linearity | Better than 0.003% of range |
| Input Filtering | OFF to 999.9 seconds |
| Ambient Temperature | -10 to +70°C |
