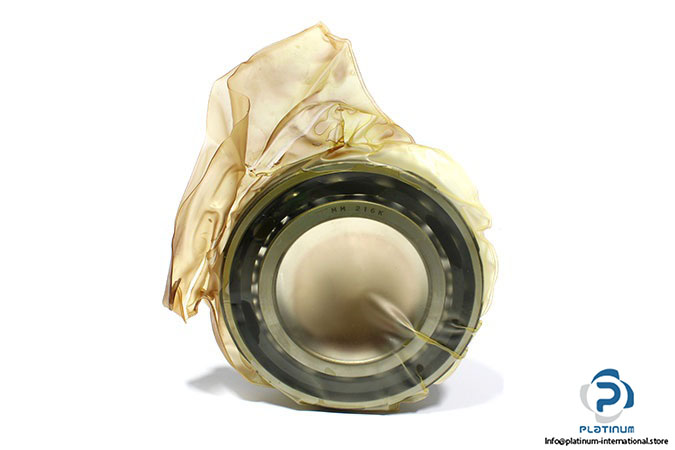

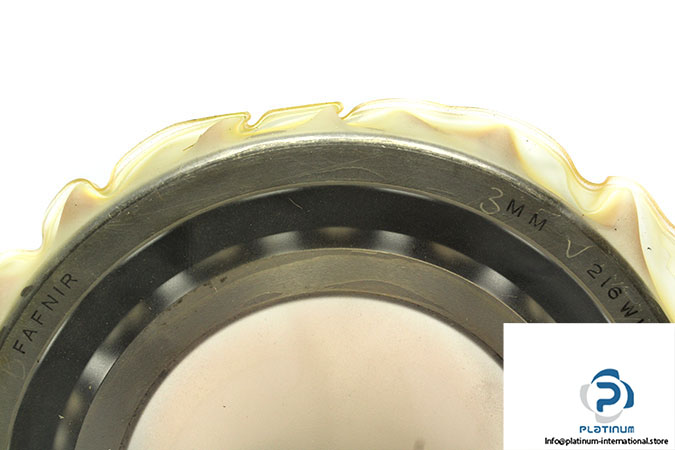

Fafnir 3MMV216WISUL Super Precision Angular Contact Ball Bearing
Yeni
Stokta2 ünitelerSevkiyata hazır
Üretici: FAFNIR Tip: Süper hassas açısal temaslı bilyalı rulman Model: 3MMV216WISUL (7216)
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
Manufacturer: FAFNIR
Type: SUPER PRECISION ANGULAR CONTACT BALL BEARING
Model: 3MMV216WISUL (7216)
Dimensions
Bore Diameter d: 80 mm
Outer diameter D: 140 mm
Width C: 26 mm
Contact angle α: 25 °
Basic load ratings:
Dynamic Cr: 73800 N
Static C0r: 98000 N
Speed Rating : 9100 RPM
Cage: CR phenolic (composition)
Precision Class: MMV, super high precision
Series: 200, light Preload
Construction: WI, Angular Contact; Low Shoulder On Outer Ring
Flush Ground: SUL, Single Bearing light Preload
