Fafnir UM 2.1 Measurement Evaluation Unit

Name: FAFNIR UM 2.1 MEASUREMENT EVALUATION UNIT
SKU: 1064382
Availability: LimitedAvailability

fafnir-UM-2.1-measurement-evaluation-unit-(used)

fafnir-UM-2.1-measurement-evaluation-unit-(used)-1

Kullanılmış

Stokta1 birimSevkiyata hazır

Fafnir UM 2.1 Ölçüm Değerlendirme Ünitesi, 0 ila 10 V DC girişi, 230 V yardımcı güç ve kırmızı LED ışık şerit göstergesi sunarak endüstriyel uygulamalarda güvenilir ölçüm ve izleme sağlar.

Üretici

FAFNIR

SKU

1064382

Kategori

Electrical Measuring Instruments

Koşul

Kullanılmış

0 10 2.1 Changeover Contact Control dc Evaluation Fafnir Floating Indicator Industrial Input LED Light-Strip Measurement monitoring Process Signal to UM Unit V

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

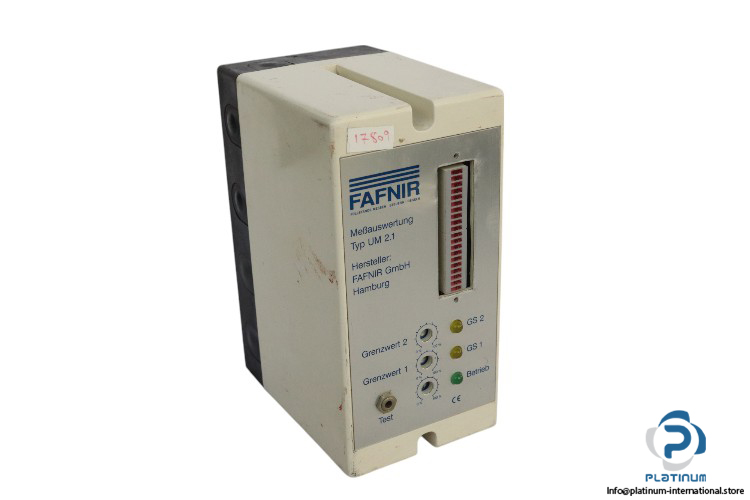

Fafnir UM 2.1 Measurement Evaluation Unit

The Fafnir UM 2.1 Measurement Evaluation Unit is a highly effective unit for evaluating and monitoring measurement signals in industrial applications. With its compact design and advanced features, it provides precise monitoring and easy integration into control systems for real-time data evaluation.

Manufacturer: Fafnir
Type: Measurement Evaluation Unit
Model: UM 2.1

Technical Specifications:

Degree of Protection: IP40
Auxiliary Power: 230 V, 50 Hz
Input: 0 to 10 V DC
Output Signal: 0 V to 10 V parallel to signal input 2x floating changeover contact

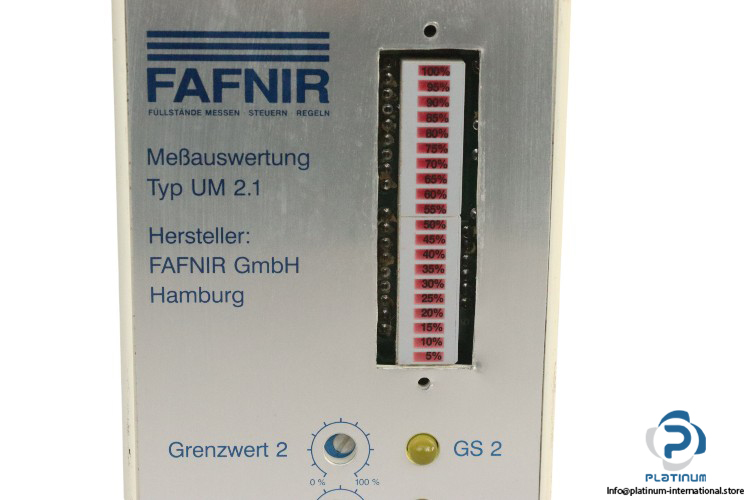

Display: Red LED light-strip indicator (filling level), resolution 5%

The Fafnir UM 2.1 Measurement Evaluation Unit is designed for accurate signal measurement and monitoring, ensuring real-time data for process control and optimization. Its red LED light-strip indicator allows easy visibility of the filling level, and its floating changeover contacts provide reliable signal output, making it ideal for a range of industrial environments.
