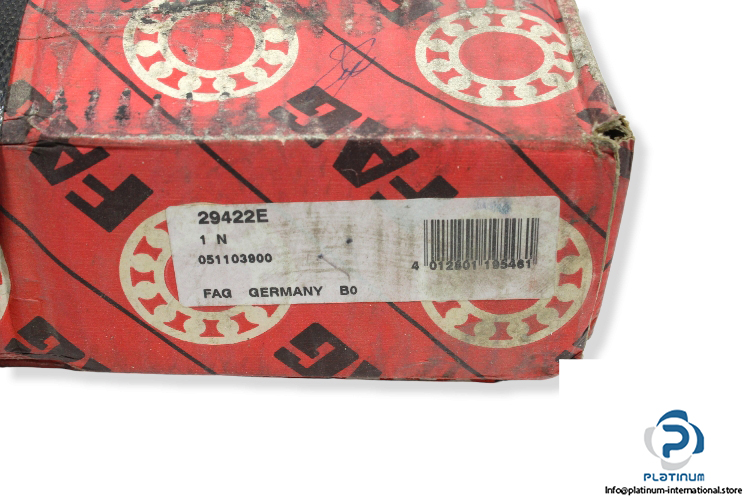

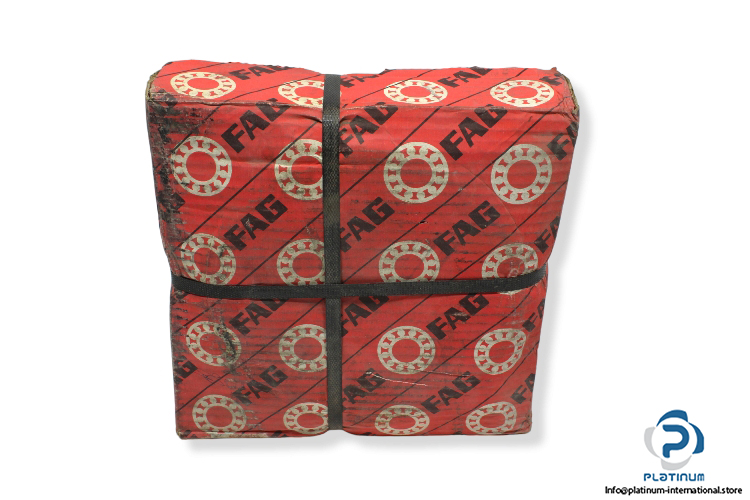

FAG 29422E Spherical Roller Thrust Bearing

Manufacturer: Schaeffler FAG

Type: Axial spherical roller bearing

Model: 29422 E

Replaces: 29422-E1, 29422-E1-XL

Dimensions:

Bore Diameter d: 110 mm

Outer diameter D: 230 mm

Width: 73 mm

Dynamic load rating: 1260000 N

Static load rating: 3150000 N

Fatigue load limit: 350000 N

Limiting speed: 3100 RPM

Reference speed: 1600 RPM

Cage material: Sheet metal
