FAG KM10 Locknut
Yeni
Stokta1 birimSevkiyata hazır
19,99$
Somun FAG KM10, M50x1.5 dişe ve 93.000 N aksiyal statik yük kapasitesine sahip dayanıklı bir somundur. MB10 sigortayla uyumludur ve endüstriyel uygulamalar için hassas mil kilitleme sağlar.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

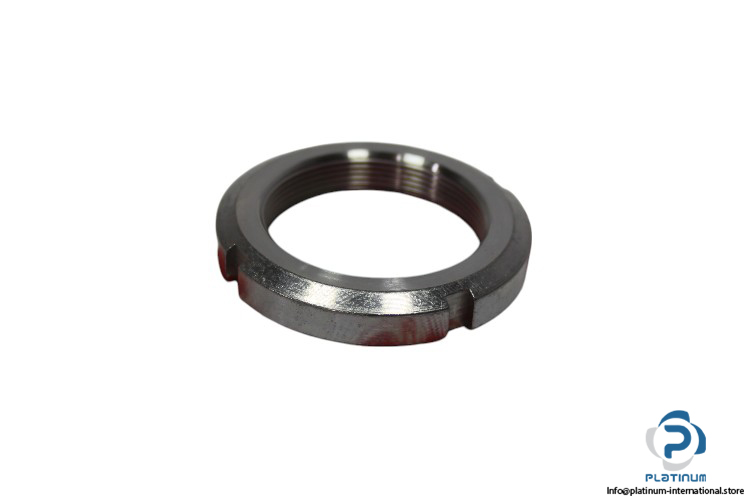

FAG KM10 Locknut
The FAG KM10 Locknut is a high-precision mechanical component designed to secure bearings and other machine elements onto a shaft. Featuring an M50x1.5 thread and compatible MB10 fuse, this locknut ensures axial positioning and resistance to vibration in demanding applications.
Manufacturer: FAG
Type: Locknut
Model: KM10
| Thread (d) | M50x1.5 |
| Outer Side Diameter | 70 mm |
| Width | 11 mm |
| Chamfer Diameter | 61 mm |
| Width Retaining Slot | 6 mm |
| Groove Base Distance | 65 mm |
| Axial Load Capacity, Static | 93,000 N |
| Fuse | MB10 |
| Chamfer Angle | 30° |
