FRONT PANEL VALVE
FESTO SVS-3-1/8 front panel valve with mechanical actuation and 3/2-way monostable function. Ideal for precise air control in compact installations.1203/2-wayActuationANDconnectionDesignFestoflowforFrontG1/8l/minMechanicalMonostablePanelPneumaticRateSVS-3-1/8SystemsValveWith
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

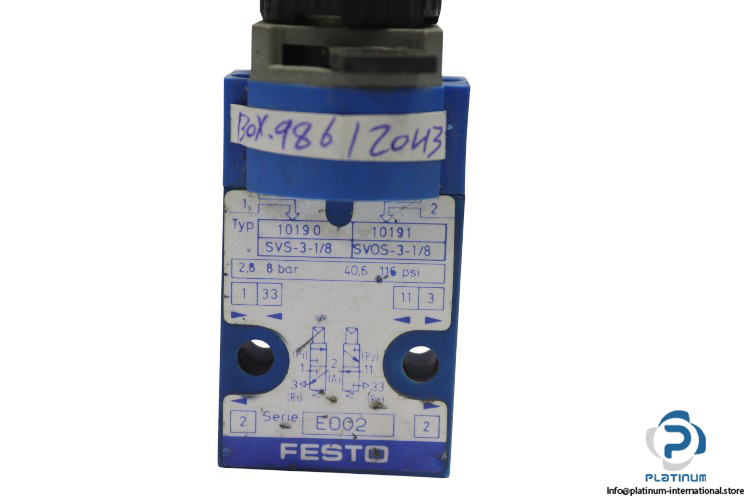

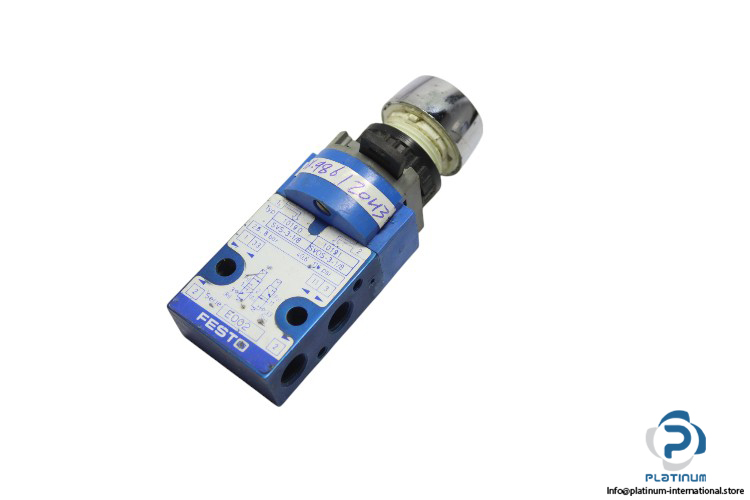

FESTO SVS-3-1/8 FRONT PANEL VALVE
The FESTO SVS318 is a high-precision front panel valve engineered for reliable air control in industrial pneumatic systems. Designed with a piston seat and 3/2-way function, this monostable valve delivers dependable switching with mechanical actuation.
Manufacturer: FESTO
Type: Front Panel Valve
Model: SVS-3-1/8
Part No.: 10190
| Fluid | Air |
| Design | Piston seat |
| Function | 3/2-way, closed, monostable |
| Type of Actuation | Mechanically |
| Operating Pressure | 3.5 ... 10 bar |
| Nominal Flow Rate | 120 l/min |
| Actuating Force | 8 N |
| Pneumatic Connection | G1/8 |
| Material | Aluminum |
| Ambient Temperature | -10 / 60 °C |
