Festo 11914 Front Panel Valve
Kullanılmış
Stokta2 ünitelerSevkiyata hazır
33,33$
FRONT PANEL VALVE
FESTO SV-5-M5B front panel valve with manual actuation and poppet design. 5/2-way monostable function, rated at 95 l/min with M5 connection.
Yeni
Stokta 45,00$
Bu ürün ayrıca yeni olarak da mevcuttur
Yeni Sürümü Görüntüle →
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

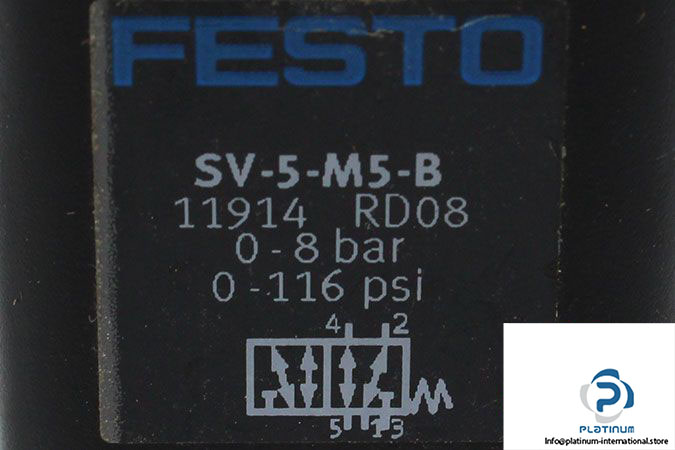

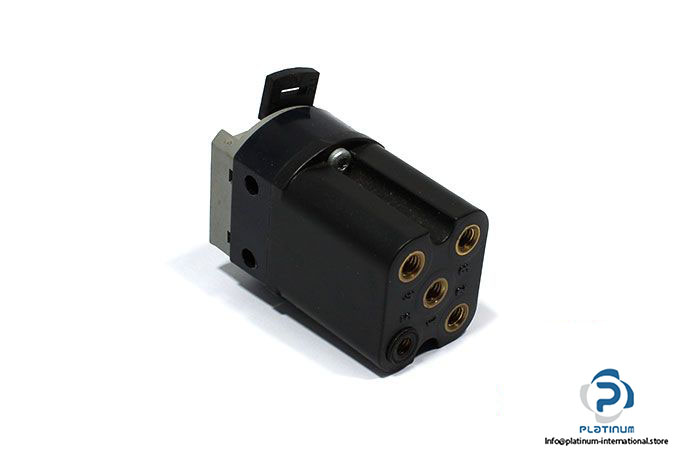

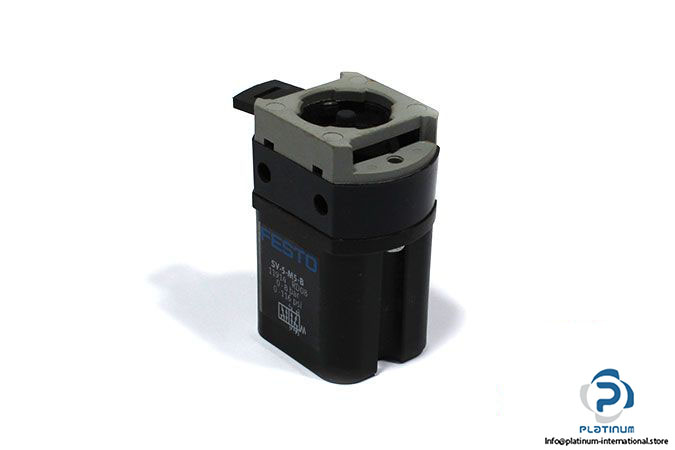

FESTO SV-5-M5 B FRONT PANEL VALVE
The FESTO SV5M5B is a high-precision front panel valve engineered for reliable manual control in pneumatic systems. Designed with a poppet valve and spring return mechanism, it delivers a stable 5/2-way monostable function with efficient airflow management.
Manufacturer: FESTO
Type: Front Panel Valve
Model: SV-5-M5-B
Part No.: 11914
| Fluid | Air |
| Design | Poppet valve with spring return |
| Function | 5/2-way, monostable |
| Type of Actuation | Manually |
| Operating Pressure | 0 ... 8 bar |
| Nominal Flow Rate | 95 l/min |
| Actuating Force | 17 N |
| Pneumatic Connection | M5 |
| Material | Polymer, Brass |
| Ambient Temperature | -10 / 60 °C |
