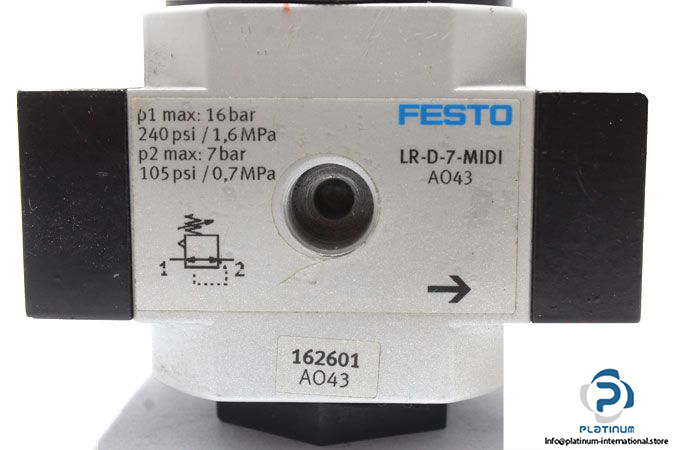

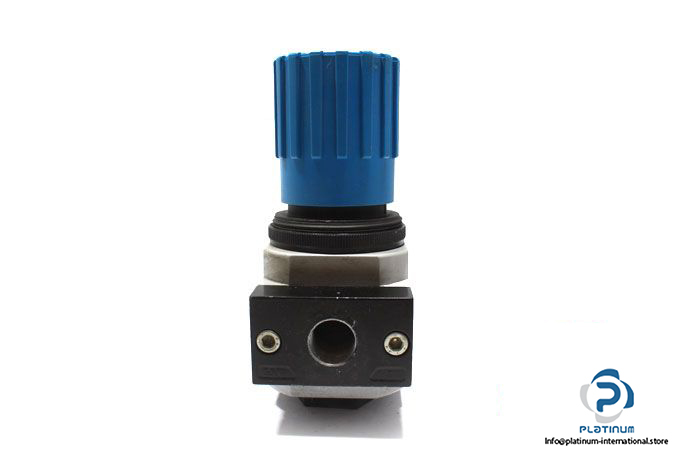

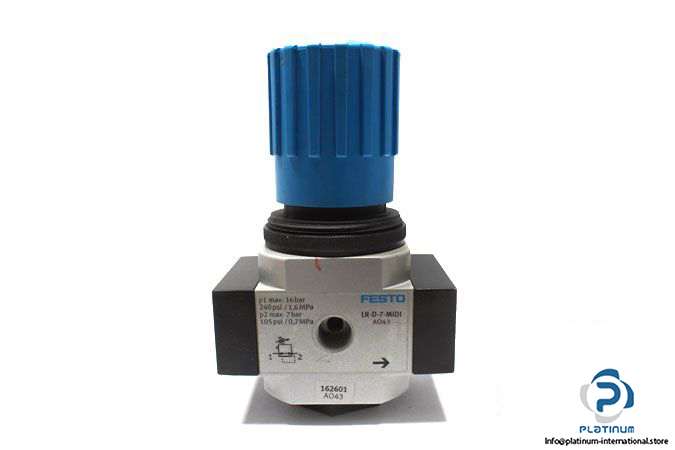

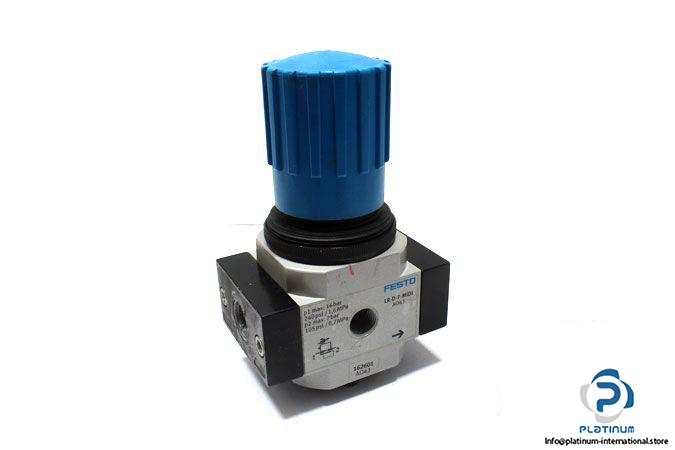

Festo 162601 Pressure Regulator

Manufacturer: FESTO

Type: Pressure Regulator

Model: LR-3/8-D-7-O-MIDI

Part No.: 162601

Pneumatic Connection 1: G 3/8

Pneumatic Connection 2: G 3/8

Gauge Pressure: G1/4 prepared

Pressure Range: 0 … 16 bar

Max. Pressure P1: 16 bar

Max. Pressure P2: 7 bar

Flow: 3300 I/m

Actuator Lock: Rotary knob with detent

Bowl Material: Die-cast zinc

Temperature Range: -10 … 60°C

Weight: 0.940 kg
