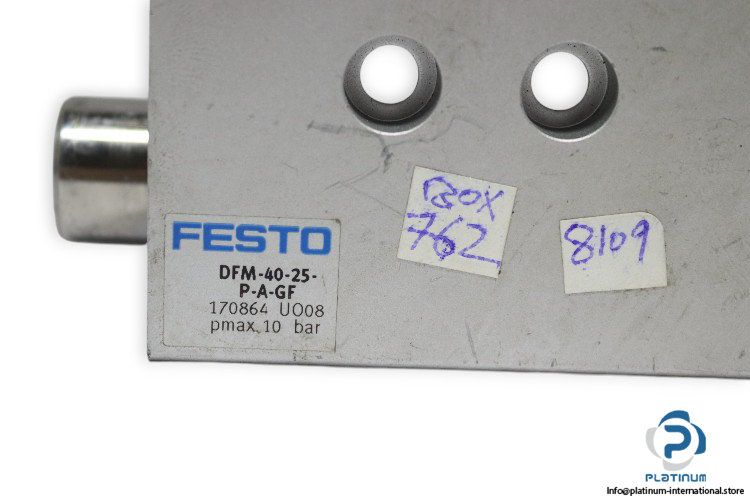

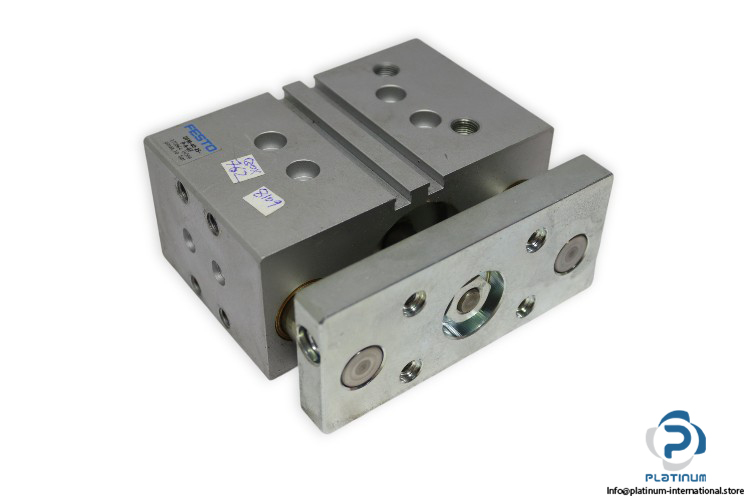

Festo 170864 Guided Actuator

Manufacturer: FESTO
Type: Guided actuator
Model: DFM-40-25-P-A-GF
Part No.: 170864

Piston diameter: 40 mm
Theoretical force at 6 bar, advancing: 754 N
Stroke: 25 mm
Cushioning: Elastic cushioning rings/pads at both ends
Position sensing: For proximity sensor
Distance of centre of gravity of payload to yoke plate xs: 50 mm
Guide: Sliding guide
Structural design: Guide
Position sensing: For proximity sensor
Operating pressure: 1.5 bar … 10 bar
Max. speed: 0.8 m/s
Mode of operation: Double-acting
Operating medium: Compressed air
Pneumatic Connection: G1/8
Housing material: Wrought aluminum alloy
Piston rod material: High-alloy stainless steel
