Festo 174818 Angle Gripper
Yeni
Stokta1 birimSevkiyata hazır
Angle Gripper
The FESTO HGW-10-A is a double-acting pneumatic angle gripper with 40 degree opening, high repeatability, and aluminum nickel plated housing, ideal for automated handling applications.40ActingAluminumAngleAutomationComponentsDegreeDoubleFestoGripperHGWHGW-10-AIndustrialNickelopeningPlatedPneumaticSeries
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

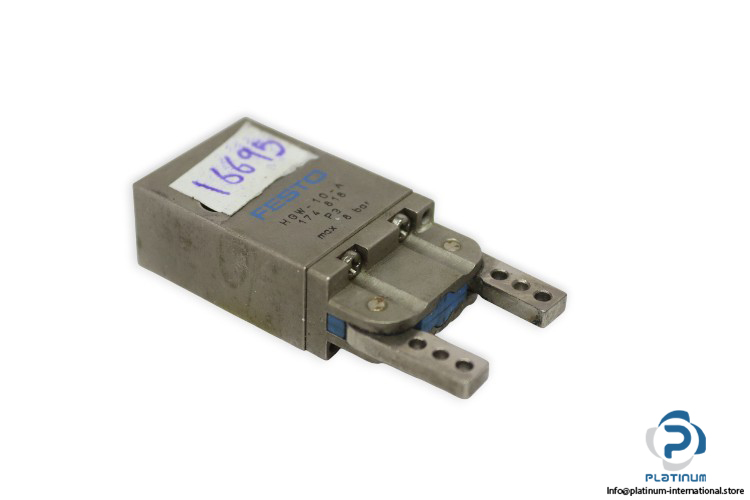

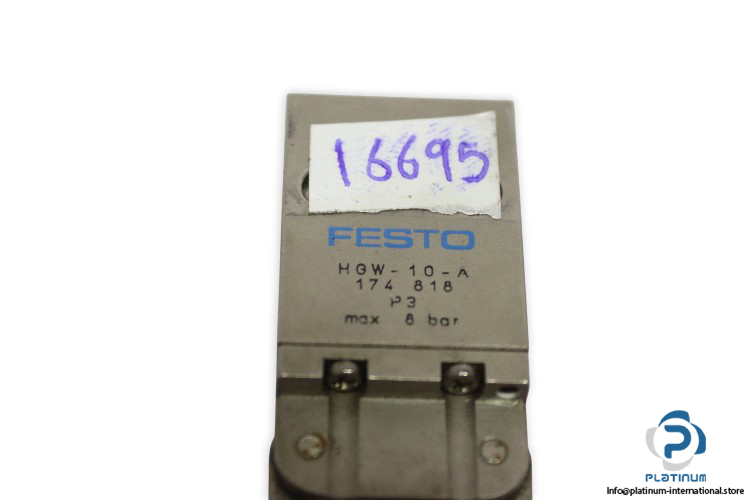

FESTO HGW-10-A Angle Gripper
The FESTO HGW-10-A Angle Gripper is a high-precision pneumatic component designed for reliable gripping and positioning in automated handling systems. With double-acting operation and compact construction, it offers excellent accuracy and repeatability for industrial automation applications.
Manufacturer: FESTO
Type: Angle Gripper
Model: HGW-10-A
MRN: 174 818
| Size | 10 |
| Maximum Replacement Accuracy | 0.2 millimeters |
| Maximum Opening Angle | 40 degrees |
| Repetition Accuracy (Gripper) | less than or equal to 0.04 millimeters |
| Number of Gripper Fingers | 2 |
| Mode of Operation | Double acting |
| Gripper Function | Angle |
| Design Structure | Lever |
| Position Detection | For proximity sensor |
| Operating Pressure | 2 to 8 bar |
| Maximum Operating Frequency of Gripper | 4 hertz |
| Minimum Opening Time at 6 bar | 5 milliseconds |
| Minimum Closing Time at 6 bar | 5 milliseconds |
| Operating Medium | Filtered compressed air |
| Corrosion Resistance Classification (CRC) | 2 |
| Ambient Temperature | 5 to 60 degree Celsius |
| Total Gripping Torque at 6 bar (Opening) | 25 newton centimeters |
| Total Gripping Torque at 6 bar (Closing) | 22 newton centimeters |
| Maximum Force on Gripper Jaw (Fz static) | 16 newton |
| Maximum Torque at Gripper (Mx static) | 0.3 newton meter |
| Maximum Torque at Gripper (My static) | 0.1 newton meter |
| Material (Housing) | Aluminum nickel plated |
| Pneumatic Connection | M3 |
