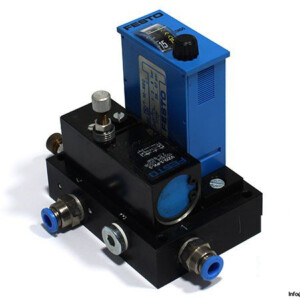

Festo 187416 Subplate
Yeni
Stokta35 ünitelerSevkiyata hazır
77,77$
FESTO SUB PLATE ASSEMBLY FESTO SA-23678 sub plaka, VZO-3-3.3 temel valf ve PZVT-30-SEC zamanlayıcı ile kompakt formda hassas pnömatik kontrol ve zamanlama sunar.
Kullanılmış
Stokta 55,55$
Bu ürün ayrıca ikinci el olarak da mevcuttur
Kullanılmış Sürümü Görüntüle →
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

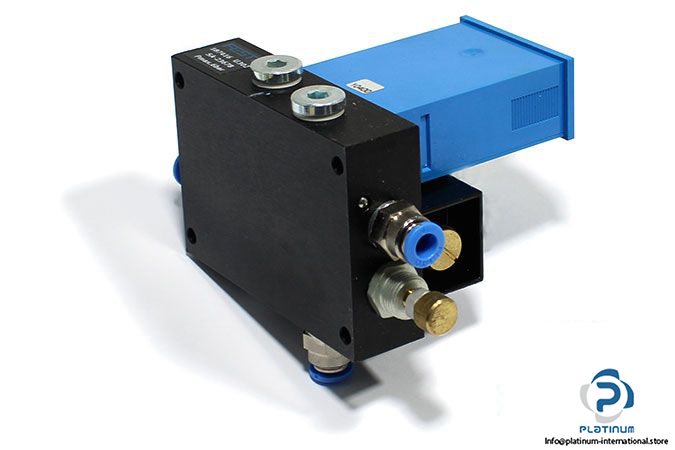

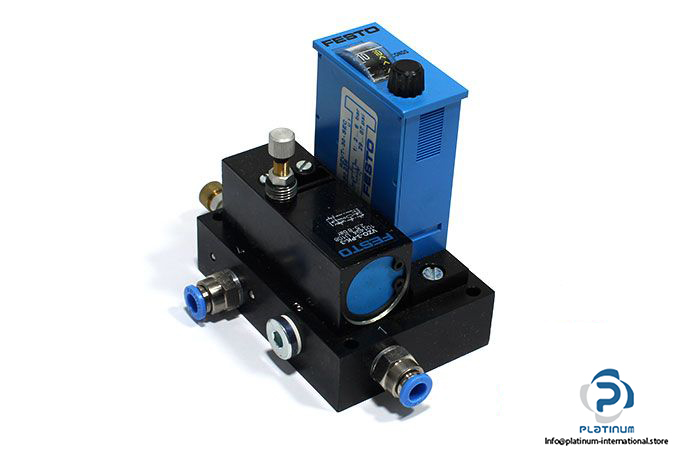

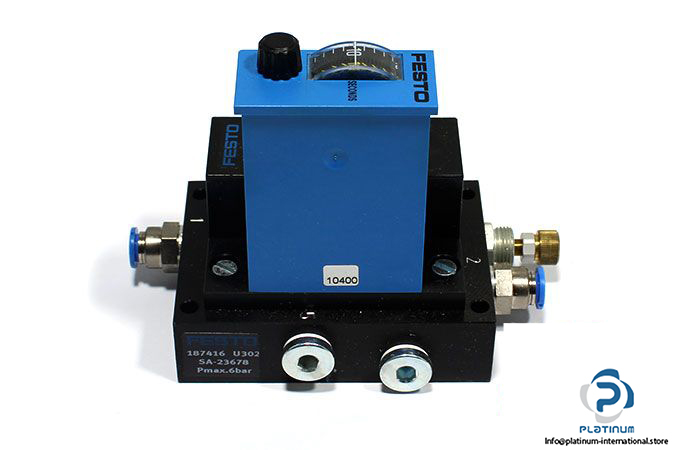

FESTO SA-23678 SUB PLATE WITH BASIC VALVE AND TIMER
The FESTO SA23678 is a durable sub plate designed for use with FESTO's modular pneumatic control components. This assembly includes the FESTO VZO-3-3.3 basic valve and the PZVT-30-SEC timer, providing precise timing control and reliable valve switching for industrial pneumatic systems.
Manufacturer: FESTO
Type: Sub Plate

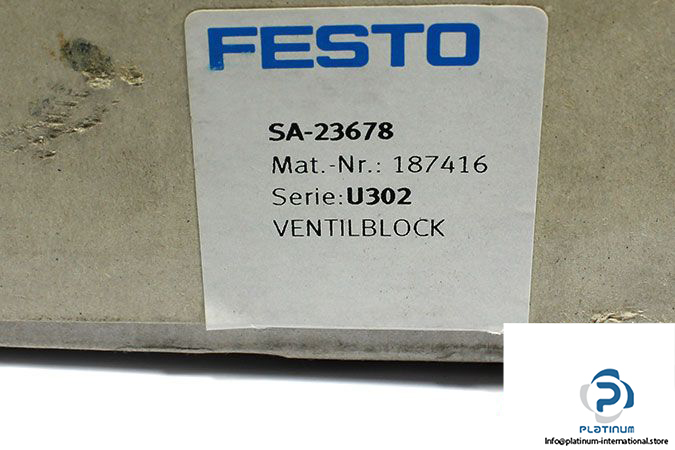

Model: SA-23678
Part No.: 187416

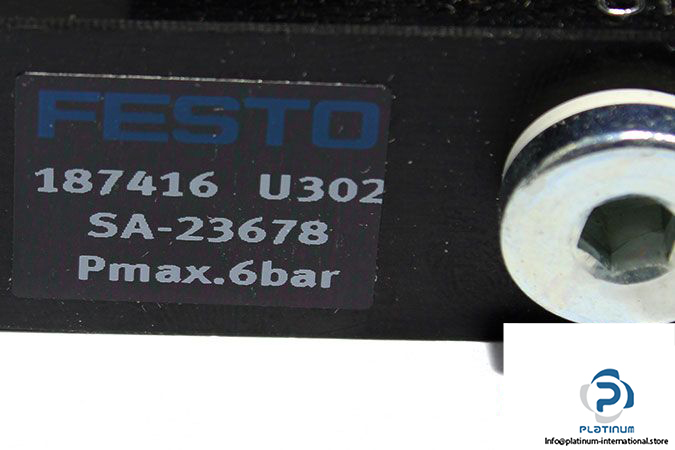

| Operating Pressure Max. | 6 bar |
| Port Size | G1/4 |

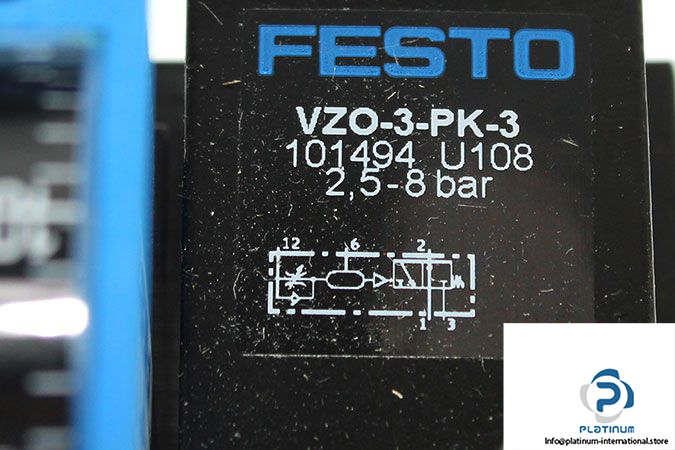

| Attachment | FESTO 101494 BASIC VALVE |
| Part No. | 101494 |
| Operating Pressure | 2.5 / 8 bar |

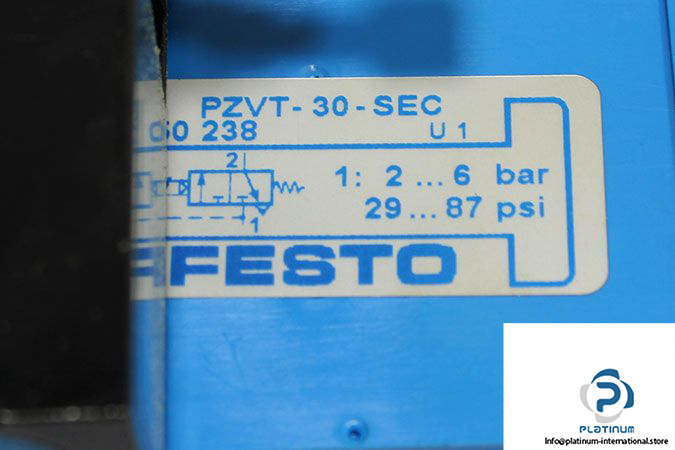

| Attachment | FESTO 150238 TIMER |
| Part No. | 150238 |
| Design Structure | Mechanical Sequence Counter with Pneumatic Drive |
| Operating Medium | Compressed Air, Lubricated Operation Not Possible |
| Adjustable Delay Times | 2 / 30 s |
| Operation Pressure Range | 2 / 6 bar / 29 / 87 PSI |
| Switch On Pressure | 1.6 bar |
| Switch Off Pressure | 0.1 bar |
| Nominal Flow Rate | 50 l/min |
| Connection | M5 Female, Threaded |
| Ambient Temperature | -10 / 60°C |
