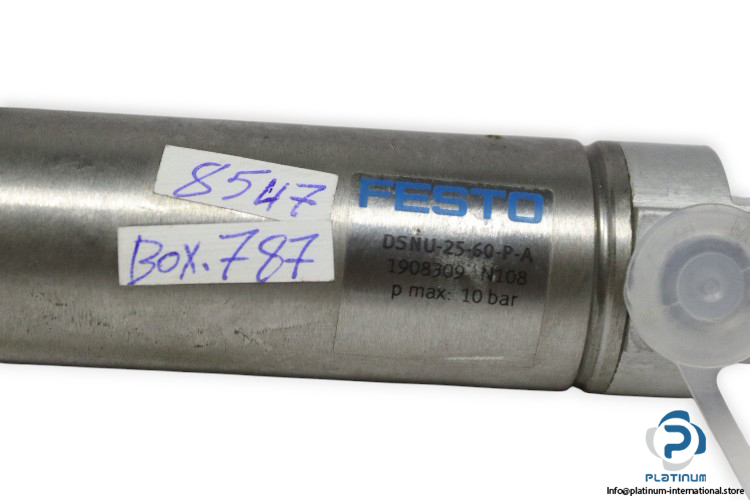

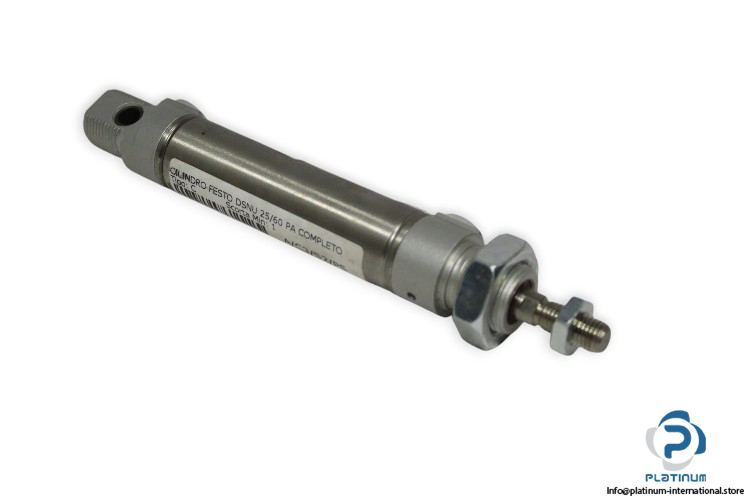

Festo 1908309 ISO Cylinder

Manufacturer: FESTO
Type: ISO CYLINDER
Model: DSNU-25-60-P-A
Part No.: 1908309

Stroke Length: 60 mm
Piston Diameter: 25 mm
Piston rod thread: M10x1.25
Cushioning: Elastic cushioning rings/pads at both ends
Piston rod end: External thread
Position sensing: For proximity sensor
Variants: Piston rod at one end
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Pneumatic Connection: G1/8
Temperature: -20 … 80 °C
Material of cylinder barrel: High-alloy stainless steel
