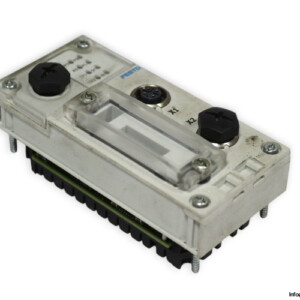

Festo 1912451 BUS Node
Yeni
Talep üzerine mevcut
666,66$
BUS NODE
FESTO CPX-FB36 offers robust communication with 64-byte I/O capacity, Ethernet support, and IP67-rated housing for industrial environments.24vAddressAutomationBUSCommunicationControlCPX-FB36EthernetFestoFieldbusHousingI/OIndustrialIP67MACModuleNodePA-reinforced
Kullanılmış
Stokta 333,33$
Bu ürün ayrıca ikinci el olarak da mevcuttur
Kullanılmış Sürümü Görüntüle →
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

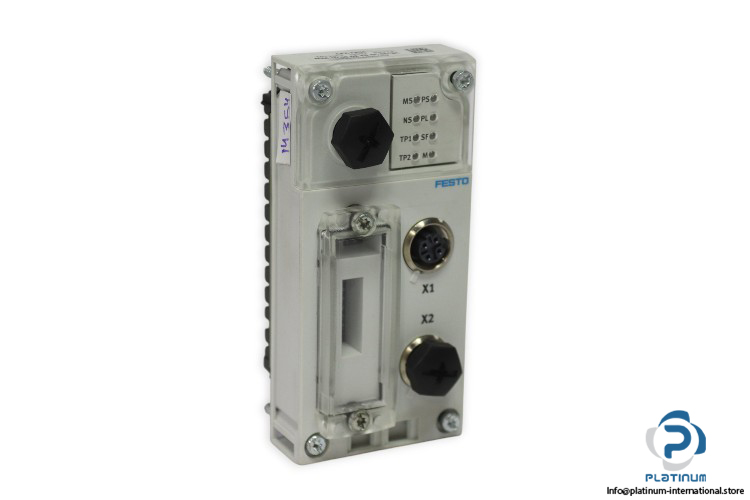

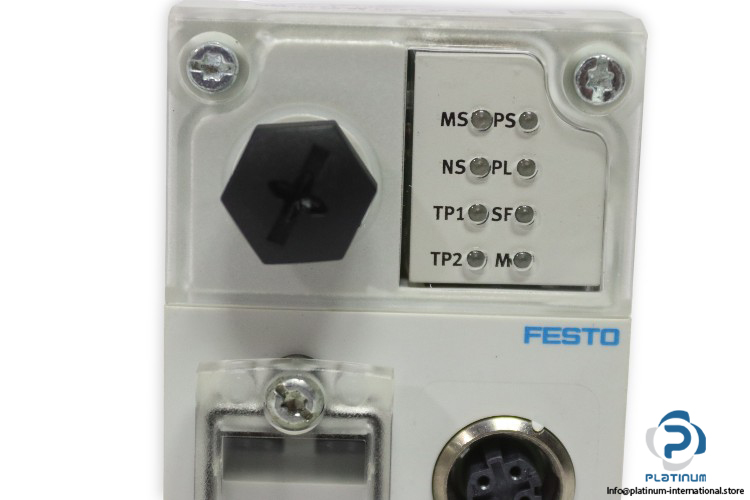

FESTO CPX-FB36 BUS NODE
The FESTO CPX-FB36 is a high-performance bus node designed for modular automation systems, offering reliable connectivity, robust housing, and seamless integration into fieldbus environments.
Manufacturer: FESTO
Type: Bus Node

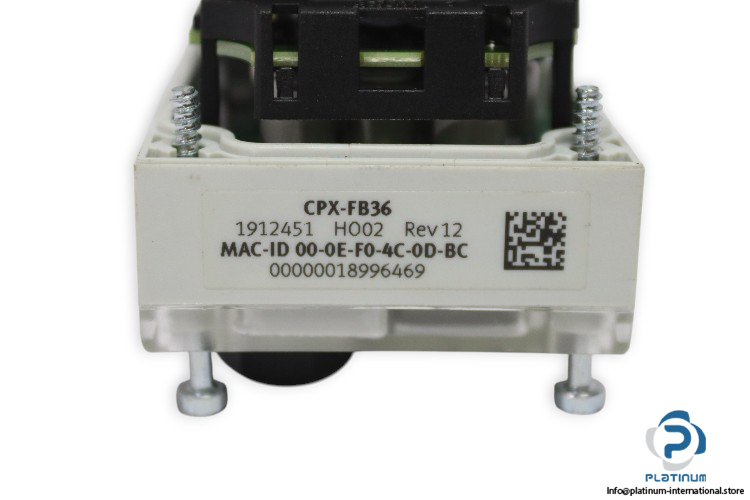

Model: CPX-FB36
Part No.: 1912451
Ref. Code: HO02
MAC ID Address: 00-0E-F0-4C-0D-BC
Ref. No.: 00000018996469
Revision: Rev.12
| Fieldbus Interface | 2x socket, M12x1, 4-pin, D-coded |
| Max. Address Capacity Inputs | 64 bytes |
| Max. Address Capacity Outputs | 64 bytes |
| Operating Voltage Range | 18 V to 30 V DC |
| Nominal Operating Voltage | 24 V DC |
| Baud Rate | 10/100 Mbit/s |
| Dimensions (W x L x H) | 50 mm x 107 mm x 50 mm |
| Ambient Temperature | -5 to 50 °C |
| Degree of Protection | IP65, IP67 |
| Housing Material | PA-reinforced |
