Festo 192629 Filter Regulator
Kullanılmış
Stokta1 birimSevkiyata hazır
Filter Regulator
Festo LER-D-5M-MAXI-A MAXI-size filter regulator designed for high-flow industrial pneumatic systems, providing compressed air filtration and precise pressure regulation.AirComponentCompressedFestofilterflowHighIndustrialLER-D-5M-MAXI-AMaxiPneumaticPreparationPressureRegulationregulatorSizeUnit
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

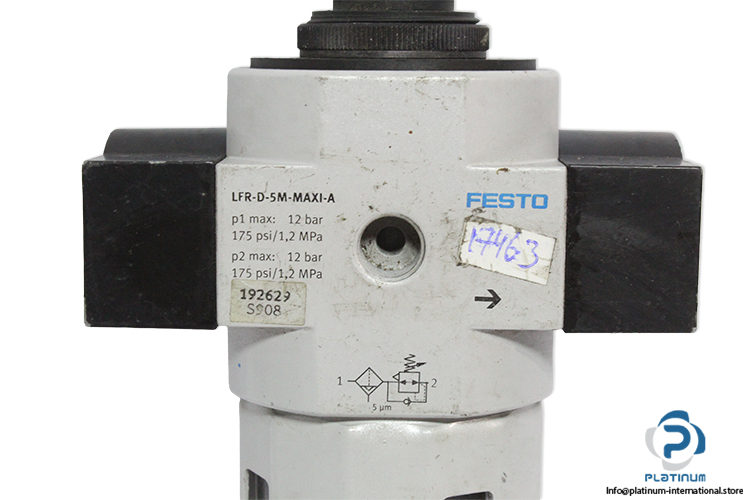

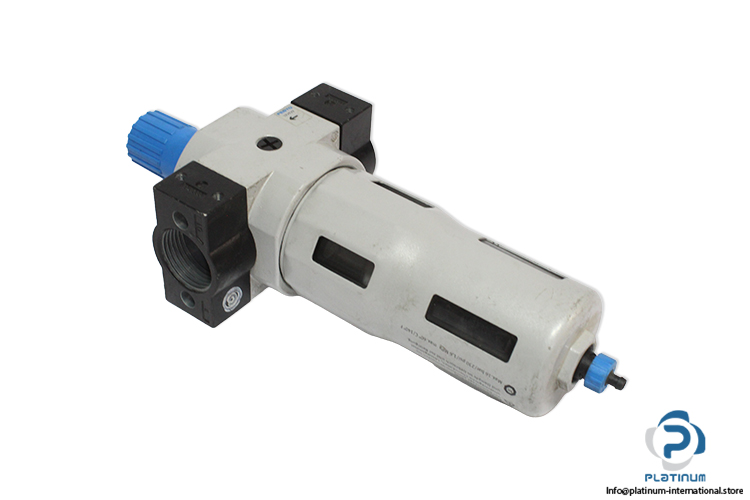

Festo LER-D-5M-MAXI-A Filter Regulator
A high-capacity filter regulator manufactured by Festo, designed to ensure clean compressed air supply and precise pressure regulation in demanding industrial pneumatic systems. This MAXI-size unit offers high flow performance, robust construction, and stable regulation, making it suitable for heavy-duty automation and industrial air preparation applications.
Manufacturer: Festo
Type: Filter Regulator
Model: LER-D-5M-MAXI-A
Part No.: 192629
Code: S908
| Size | MAXI |
| Series | D |
| Actuator Lock | Rotary knob with detent |
| Grade of Filtration | 5 µm |
| Condensate Drain | Fully automatic |
| Max. Condensate Volume | 80 ml |
| Bowl Guard | Metal bowl guard |
| Pressure Gauge | Without pressure gauge |
| Operating Pressure | 2 bar to 12 bar |
| Pressure Regulation Range | 0.5 bar to 12 bar |
| Max. Pressure Hysteresis | 0.4 bar |
| Normal Nominal Flow Rate | 8000 l/min |
| Operating Medium | Compressed air |
| Temperature of Medium | 5 °C to 60 °C |
| Ambient Temperature | 5 °C to 60 °C |
| Pneumatic Connection | G 1 |
| Housing Material | Die-cast zinc |
| Bowl Material | PC |
