Festo 194611 Pressure Regulator
Pressure Regulator and Pressure Gauge

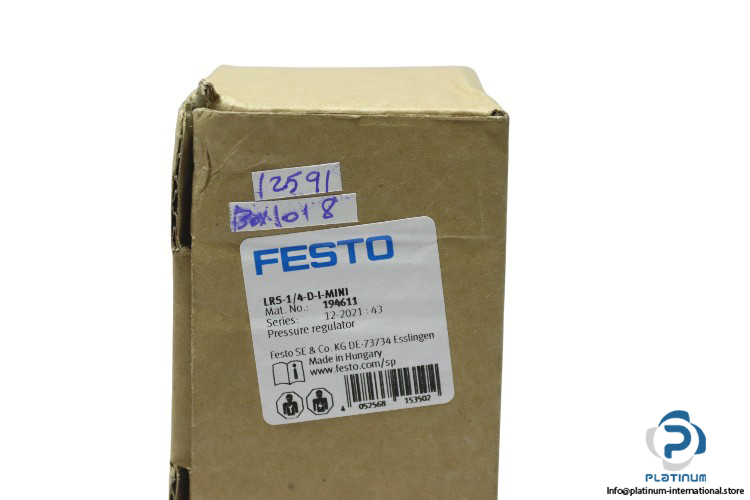

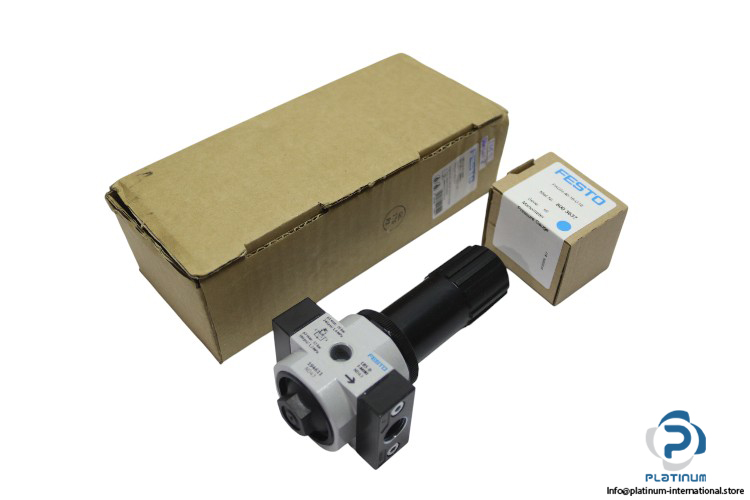

The Festo LRS-1/4-D-I-MINI is a mini-sized pressure regulator offering accurate control of compressed air pressure, paired with the Festo PAGN-40-16-G18 pressure gauge for seamless system monitoring.Festo LRS-1/4-D-I-MINI “ Pressure Regulator

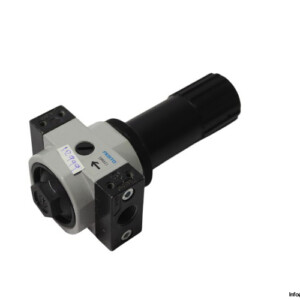

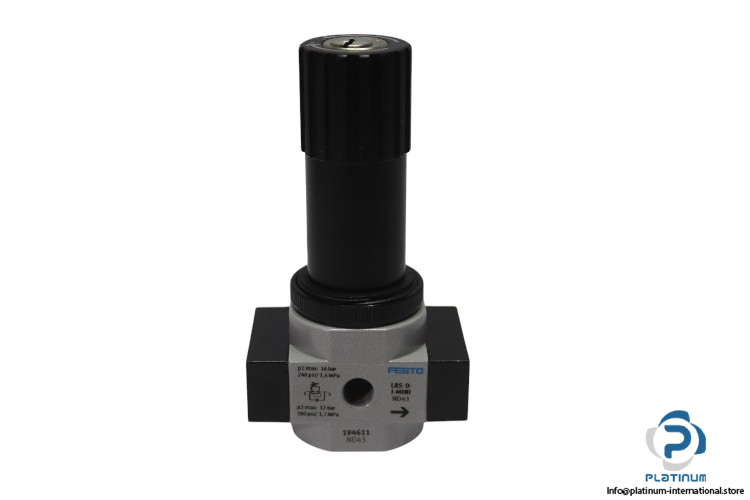

The Festo LRS-1/4-D-I-MINI pressure regulator is a compact, high-performance solution designed for accurate pressure control in compressed air systems. This mini-sized regulator is equipped with a rotary knob lock and provides a reliable operating pressure range from 1 to 16 bar.
Manufacturer: Festo
Type: Pressure Regulator
Model: LRS-1/4-D-I-MINI
Part No.: 194611

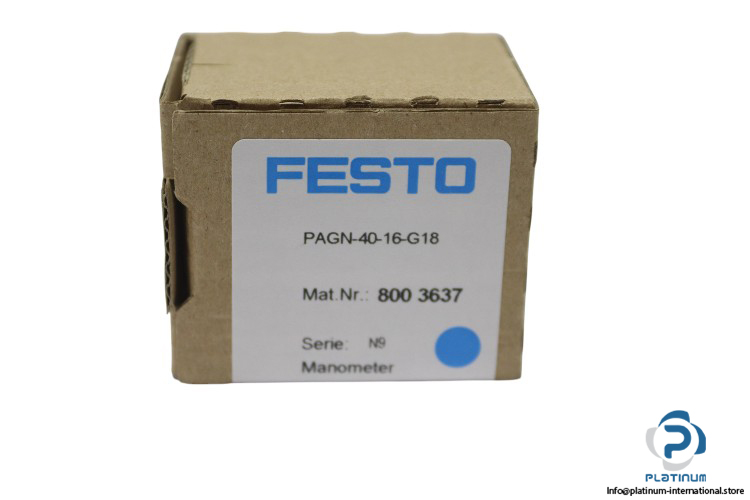

Festo PAGN-40-16-G18 “ Pressure Gauge

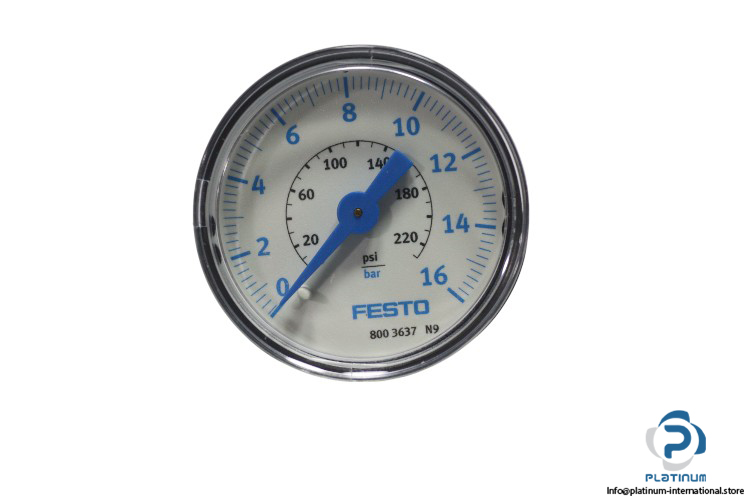

The Festo PAGN-40-16-G18 pressure gauge is an essential accessory for monitoring system pressure in pneumatic applications. This reliable gauge integrates seamlessly with the Festo LRS-1/4-D-I-MINI pressure regulator, providing accurate readings for efficient system management.
| Size | MINI |
| Fluid | Compressed air |
| Operating Pressure | 1 to 16 bar |
| Actuator Lock | Rotary knob with integrated lock |
| Nominal Flow Rate | 1500 l/min |
| Pneumatic Connection | G1/4 |
| Material | Die-Cast Zinc |
| Material Seals | NBR |
| Ambient Temperature | -10 to 60 °C |
| Attachment | Festo 8003637 Pressure Gauge |
| Part No. | 800 3637 |
| Series | N9 |
