Festo 197899 Mini Slide
Kullanılmış
Stokta1 birimSevkiyata hazır
Mini Slide
The Festo SLT-16-100-A-CC-B Mini Slide is a double-acting pneumatic actuator with 100 mm stroke and plain-bearing guidance, ideal for compact automation tasks.100165ActuatorAirAutomationCompresseddouble-actingDriveFestoGuideIndustrialMinimmOperationPistonplain-bearingPneumaticPortSlideSLT-16-100-A-CC-BStrokeYoke
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

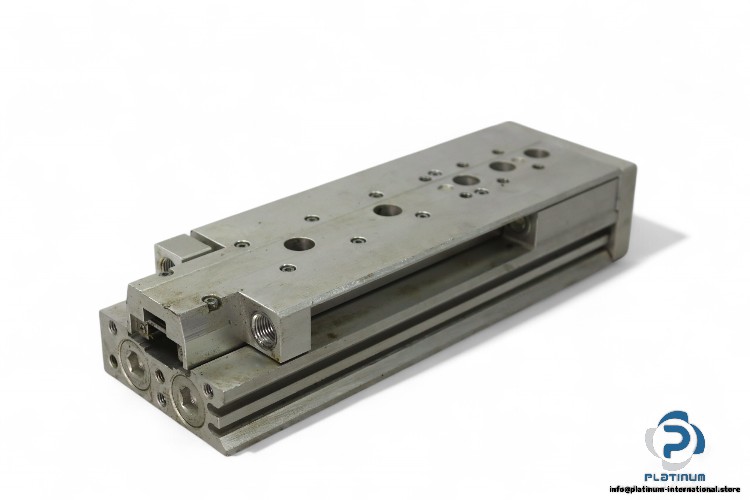

Festo SLT-16-100-A-CC-B Mini Slide
The Festo SLT16100ACCB Mini Slide is a compact and precise actuator designed for space-saving pneumatic applications. With double-acting operation, a 100 mm stroke, and plain-bearing guidance, it delivers smooth and controlled motion for high-performance automation systems.
Manufacturer: FESTO
Type: Mini Slide

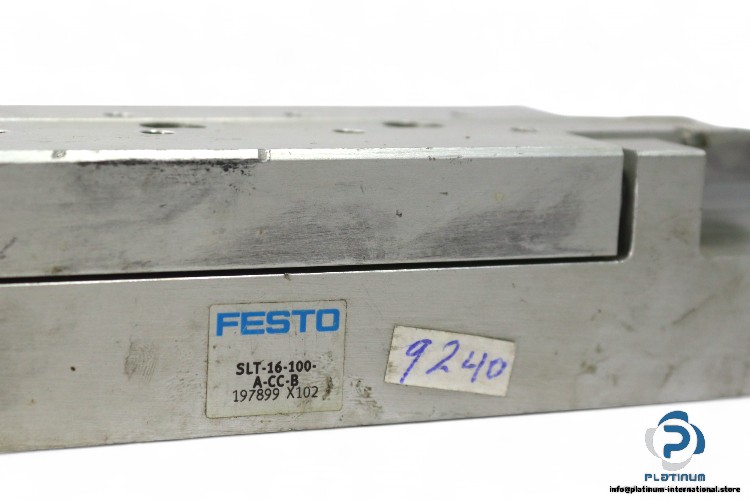

Model: SLT-16-100-A-CC-B
Part No.: 197899
| Fluid | Compressed Air |
| Adjustable End-Position Range/Length | 5 mm |
| Piston Diameter | 16 mm |
| Stroke | 100 mm |
| Operating Pressure | 1 / 10 bar |
| Operation Mode | Double-Acting |
| Guide | Plain-Bearing Guide |
| Operation Mode of Drive Unit | Yoke |
| Port Size | 5 mm |
| Temperature | -20 / 60 °C |
