Festo 197904 Mini Slide
Kullanılmış
Stokta1 birimSevkiyata hazır
The FESTO Mini Slide (Model: SLT-20-50-A-CC-B) features a 50 mm stroke, 20 mm piston diameter, ball bearing cage guide, and shock absorber cushioning. Max pressure: 10 bar. Pneumatic connection: G1/8.
2050AbsorberActingAutomationBallbearingCageconnectionCushioningdiameterDoubleG1/8GuideIndustrialMinimmPistonPneumaticShockSlideStroke
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

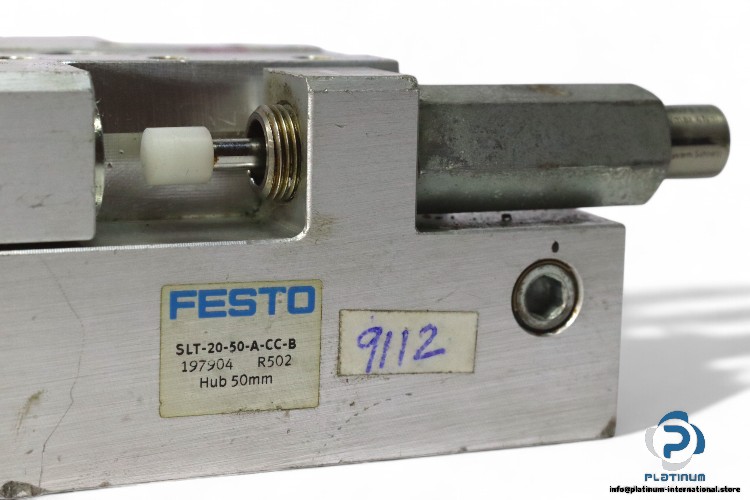

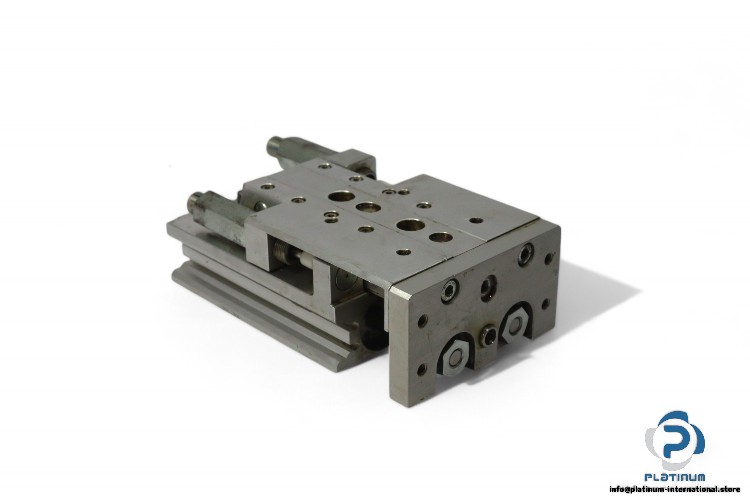

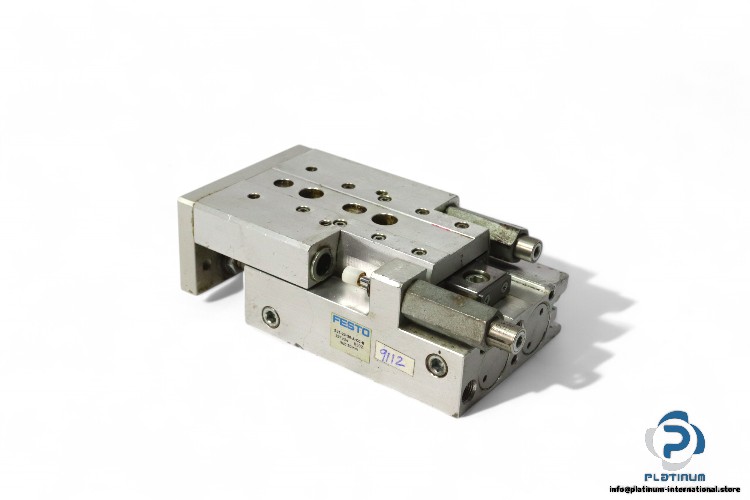

FESTO Mini Slide – Model SLT-20-50-A-CC-B
The FESTO Mini Slide (Model: SLT-20-50-A-CC-B, Part No.: 197904) is a compact, precise, and robust slide unit designed for high-performance linear motion applications. Its ball-bearing cage guide ensures smooth operation and longevity.
Technical Specifications:
- Stroke Length: 50 mm
- Piston Diameter: 20 mm
- Adjustable End-Position Range/Length: 12 mm
- Guide Type: Ball bearing cage guide
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Cushioning: Shock absorber at both ends
- Position Sensing: For proximity sensing
- Theoretical Force at 6 bar (Return Stroke): 317 N
- Theoretical Force at 6 bar (Advance Stroke): 376 N
- Pneumatic Connection: G1/8
- Temperature Range: -20 to 60 °C
This mini slide is ideal for applications requiring precise positioning, durability, and compatibility with proximity sensing.
