Festo 34482 Guide Unit

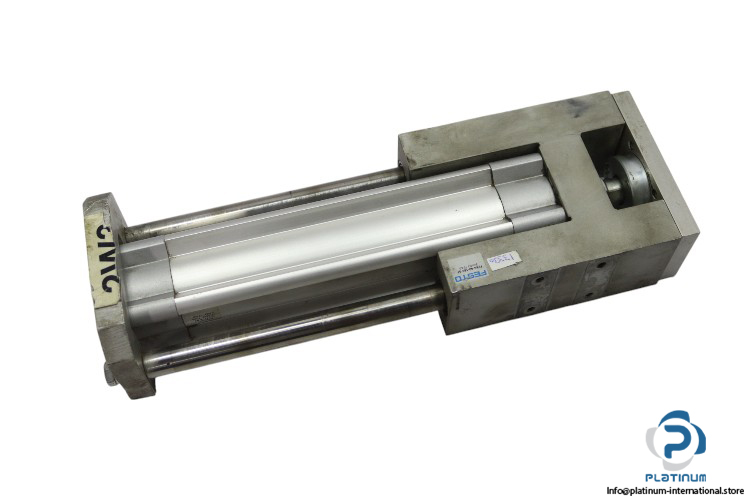

FESTO FENG-40-160-GF Guide Unit & FESTO DSBC-40-160-PPVA-N3 ISO Cylinder

The FESTO FENG-40-160-GF Guide Unit is designed for use with cylinders featuring metric rod threads. It provides reliable bearing support for smooth operation with a 40 mm piston diameter and a 160 mm stroke length. The unit uses a plain bearing for maximum durability. When combined with the FESTO DSBC-40-160-PPVA-N3 ISO cylinder, it offers double-acting operation with adjustable pneumatic cushioning at both ends.

Manufacturer: FESTO

Type: Guide Unit

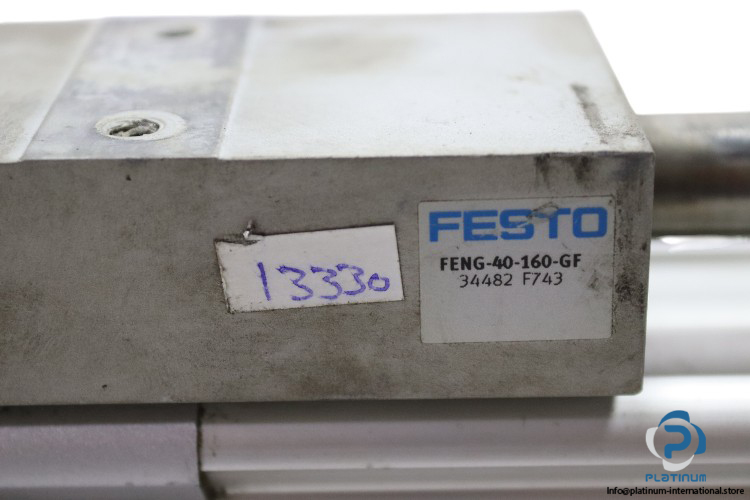

Model: FENG-40-160-GF

Part No.: 34482

Technical Data for Guide Unit:

• Used For: Cylinders with metric rod threads
• Bearing Type: Plain Bearing
• Suitable Piston: 40 mm
• Stroke: 160 mm

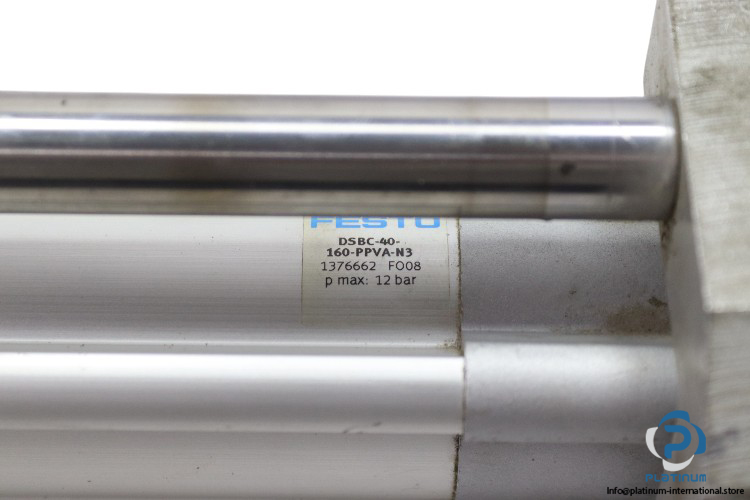

Attached with FESTO DSBC-40-160-PPVA-N3 ISO Cylinder:

Manufacturer: FESTO

Type: ISO Cylinder

Model: DSBC-40-160-PPVA-N3

Part No.: 1376662

Technical Data for ISO Cylinder:

• Mode of Operation: Double-acting
• Piston Diameter: 40 mm
• Theoretical Force at 6 bar, Advancing: 754 N
• Stroke: 160 mm
• Cushioning: Pneumatic cushioning, adjustable at both ends
• Max Pressure: 12 bar
