Festo 35533 Vacuum Generator
Kullanılmış
Stokta1 birimSevkiyata hazır
VACUUM GENERATOR
FESTO VAD-ME-I-3/8 vacuum generator with 2 FESTO solenoid coils for high-efficiency vacuum generation in pneumatic systems.AirAluminiumcoildcEfficiencyFestoGeneratorHighIndustrialLavalMEH-2-24VMOEH-3-0.9NozzlePneumaticsolenoidSystemvacuumVAD-ME-I-3/8
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

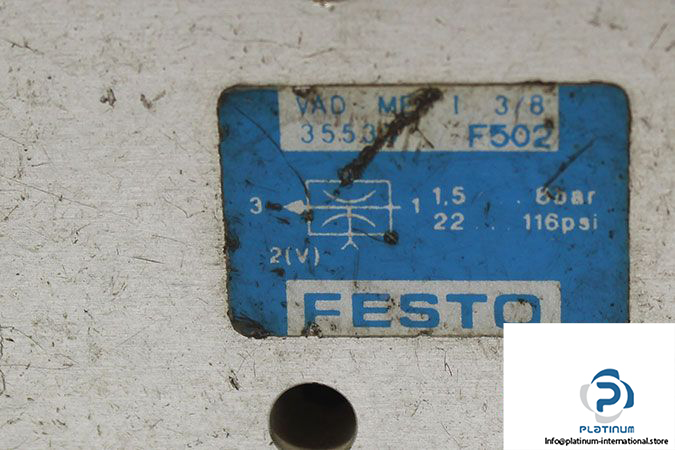

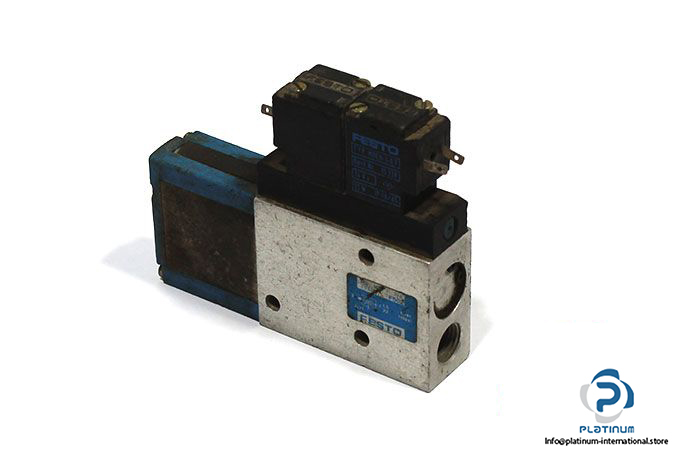

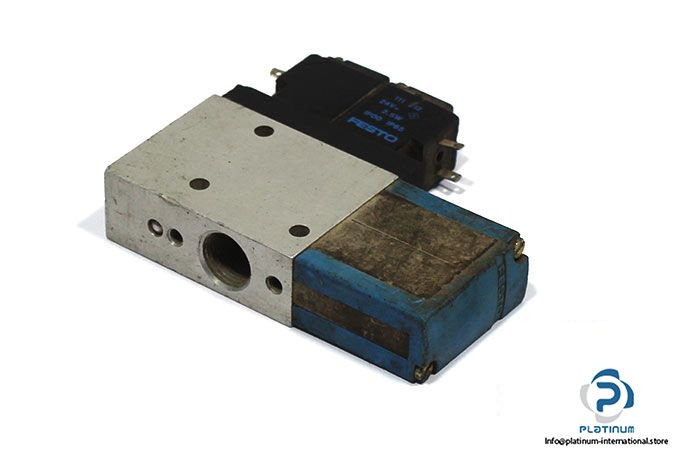

FESTO VAD-ME-I-3/8 VACUUM GENERATOR WITH SOLENOID COILS
The FESTO VAD-ME-I-3/8 is a high-performance vacuum generator designed for industrial pneumatic systems. Its robust aluminum body and efficient Laval nozzle ensure strong and stable vacuum generation. The unit includes FESTO solenoid coils for reliable electrical control and automation.
Manufacturer: FESTO
Type: Vacuum Generator
Model: VAD-ME-I-3/8
Part No.: 35533
| Fluid | Air |
| Design | T-shape |
| Laval Nozzle Nominal Size | 2 mm |
| Operating Pressure | 1.5 to 8 bar |
| Vacuum Max. | 90% |
| Pneumatic Connection | G1/4 / G3/8 |
| Material | Aluminium |
| Ambient Temperature | 0 “ 50 °C |

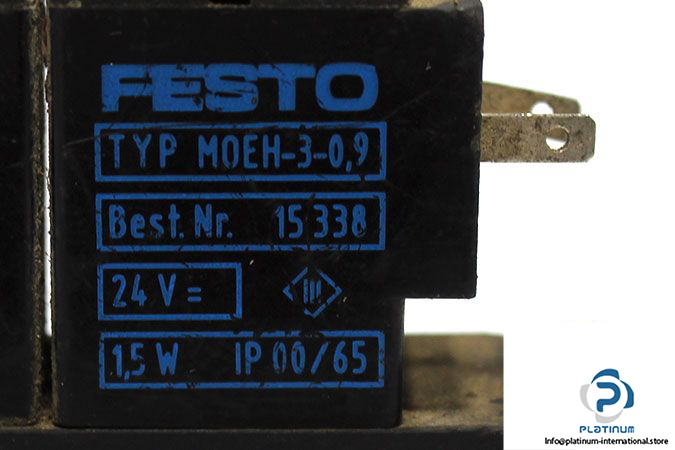

| Attachment | FESTO 15338 Solenoid Coil |
| Part No. | 15338 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |

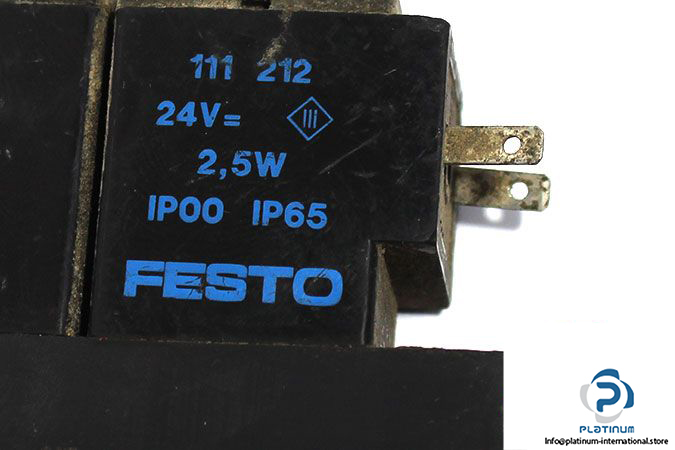

| Attachment | FESTO 111212 Solenoid Coil |
| Part No. | 111212 |
| Supply Voltage | 24 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP00 / IP65 |
