Festo 36144 Vacuum Suction CUP
Kullanılmış
Stokta1 birimSevkiyata hazır
Vacuum Suction Cup
The FESTO VAS-55-1/4-NBR suction cup features a 55 mm diameter, NBR construction, and G1/4 vacuum connection for reliable gripping and handling in pneumatic automation systems.AutomationComponentconnectioncupFestoFlatG1/4GripperhandlingIndustrialNBRPneumaticRoundSuctionSystemvacuumVAS-55-1/4-NBR
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

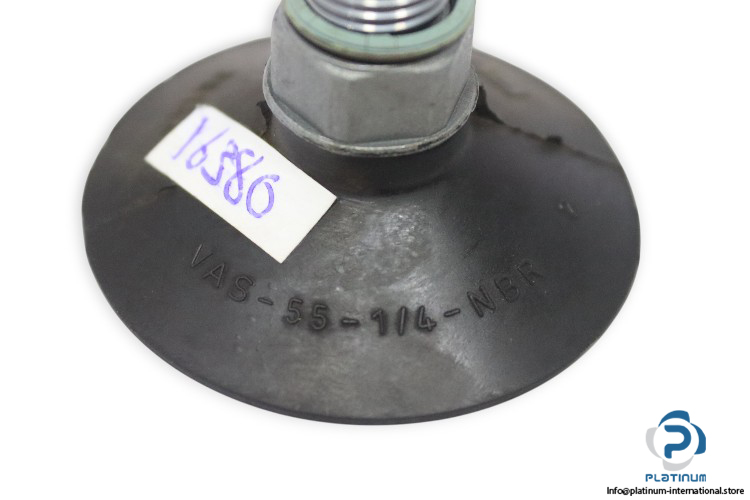

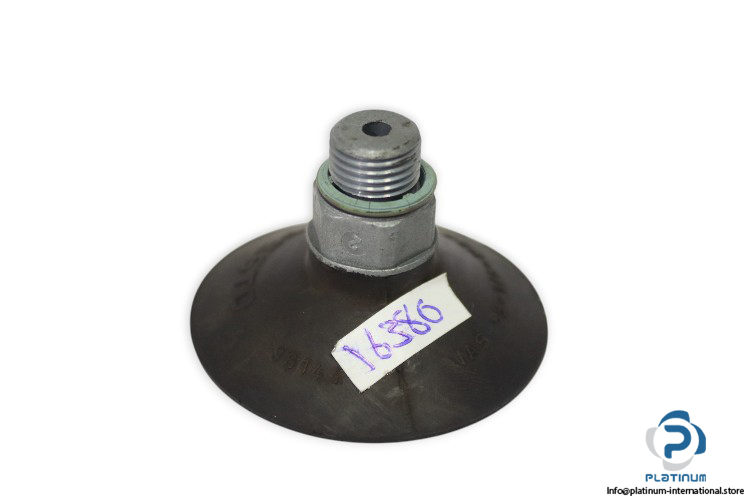

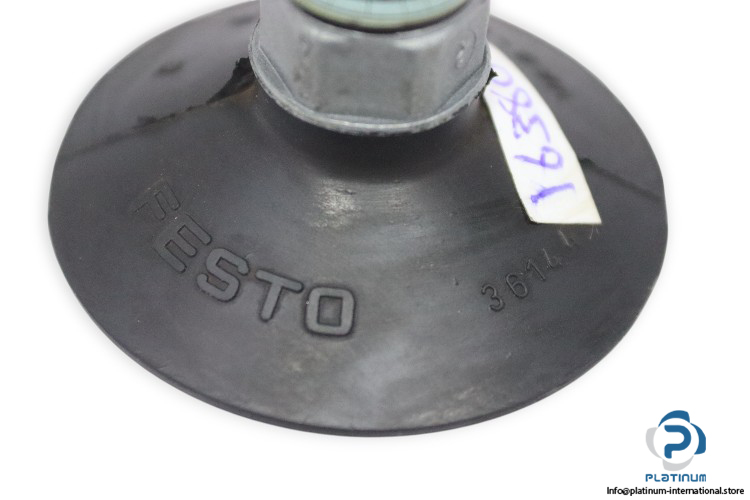

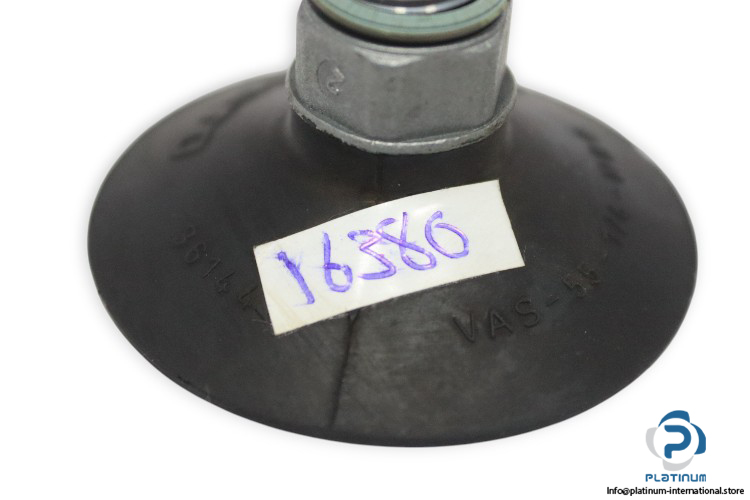

FESTO VAS-55-1/4-NBR Vacuum Suction Cup
The FESTO VAS-55-1/4-NBR Vacuum Suction Cup is a durable and efficient component designed for secure handling of smooth or flat surfaces in automation systems. Its NBR construction ensures high wear resistance and reliable performance under demanding vacuum applications.
Manufacturer: FESTO
Type: Vacuum Suction Cup
Model: VAS-55-1/4-NBR
MRN: 36144
| Suction Cup Diameter | 55 mm |
| Effective Suction Cup Diameter | 44 mm |
| Suction Cup Shape | Round, Flat |
| Suction Cup Material | NBR |
| Suction Cup Height Compensation | 3.5 mm |
| Nominal Width | 4 mm |
| Operating Pressure | -0.95 bar ... 0 bar |
| Nominal Operating Pressure | -0.7 bar |
| Operating Medium | Atmospheric Air |
| Vacuum Connection | G1/4 |
| Material of Screwed Plug | Die-cast Zinc |
