STEM ACTUATED VALVE
FESTO V-3-M5 stem actuated 3/2-way valve for mechanical pneumatic control, featuring M5 connection and die-cast zinc body.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

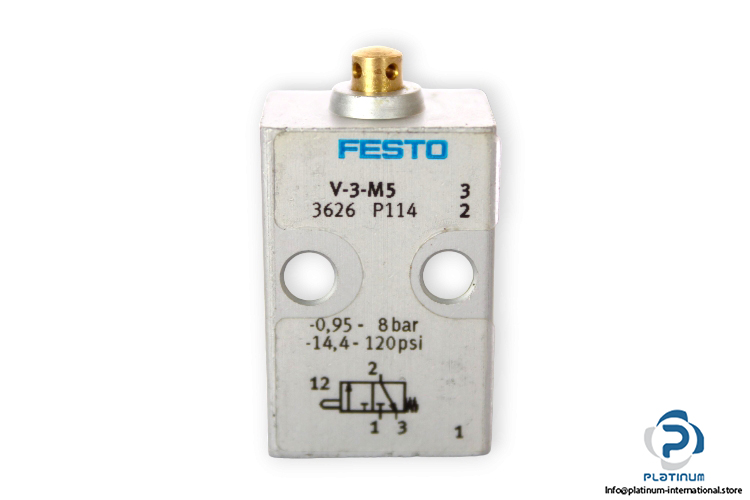

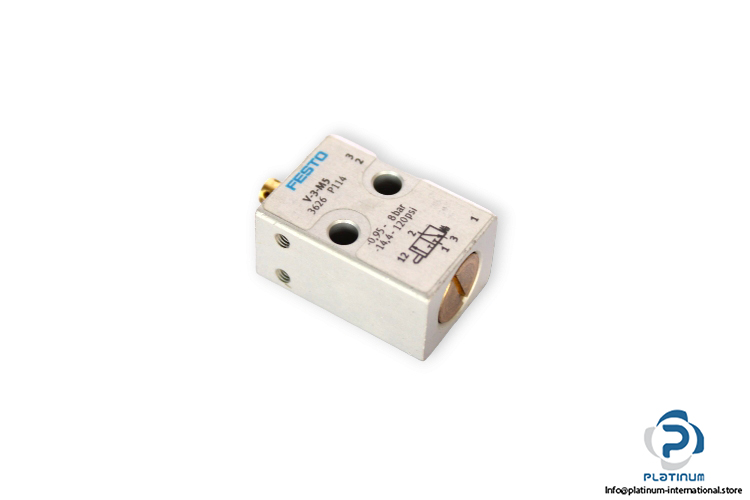

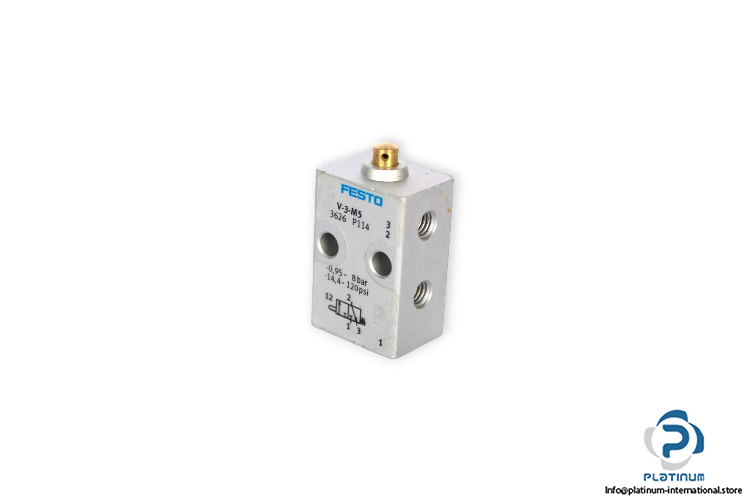

FESTO V-3-M5 STEM ACTUATED VALVE
The FESTO V3M5 is a high-performance stem actuated valve designed for reliable control in pneumatic systems. Featuring a robust die-cast zinc construction, this 3/2-way, monostable valve delivers efficient airflow regulation with a mechanical actuation mechanism.
Manufacturer: FESTO
Type: Stem Actuated Valve
Model: V-3-M5
Part No.: 3626
| Fluid | Air |
| Design | Poppet seat |
| Function | 3/2-way, closed, monostable |
| Type of Actuation | Mechanically |
| Operating Pressure | -0.95 to 8 bar |
| Nominal Flow Rate | 80 l/min |
| Actuating Force | 23 N |
| Pneumatic Connection | M5 |
| Material | Die-cast zinc |
| Ambient Temperature | -10 to 60 °C |
