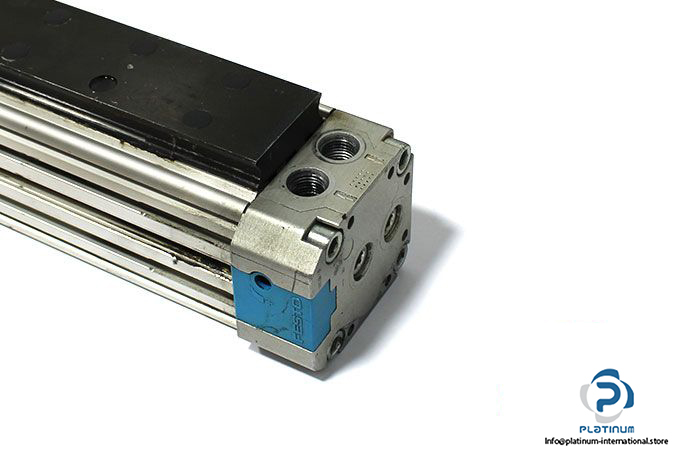

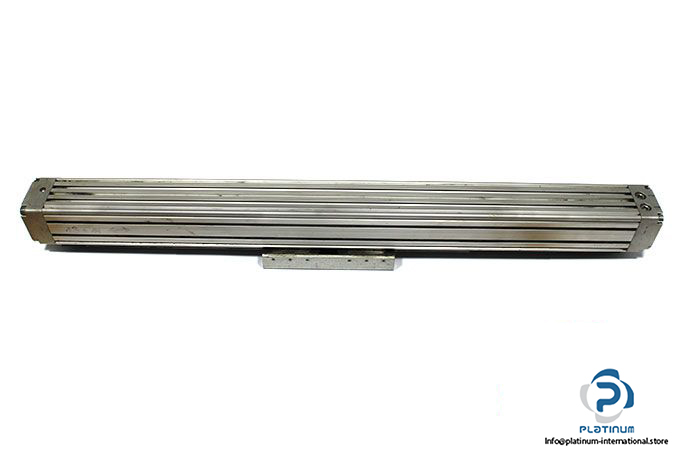

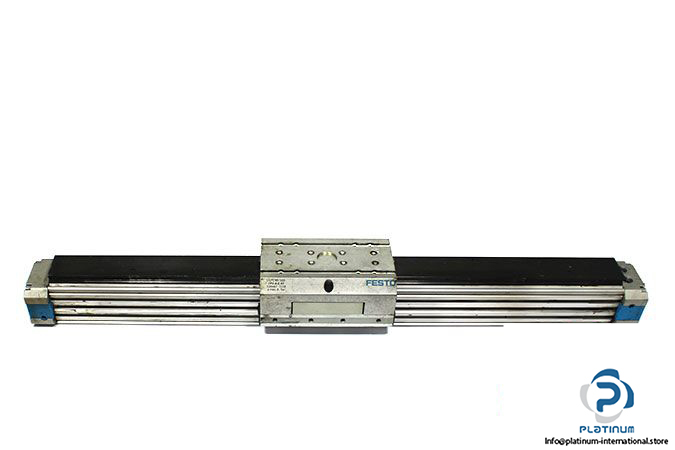

Festo 526667 Linear Actuator

Manufacturer: Festo

Type: Linear Actuator

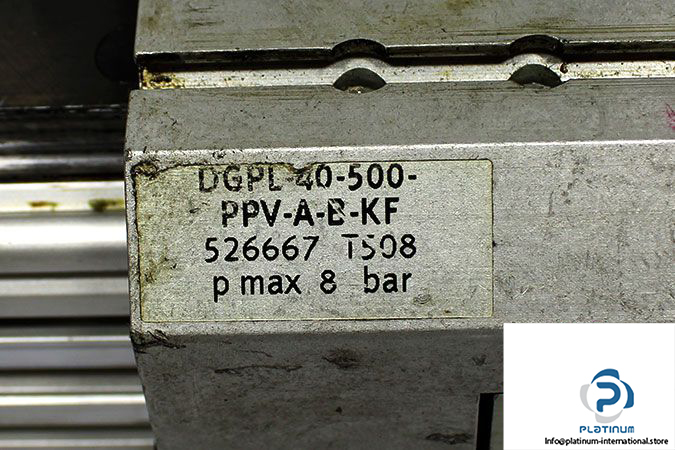

Model: DGPL-40-500-PPV-A-B-KF

Part No: 526667

Piston Diameter: 40 mm

Stroke: 500 mm

Cushioning Length: 30 mm

Operating Pressure: 1.5…8 bar

Theoretical Force At 6 Bar, Retracting: 754 N

Theoretical Force At 6 Bar, Advancing: 754 N

Ambient Temperature: -10…60 °C

Pneumatic Connection: G¼”

Mode of Operation: Double-Acting

Guide: Recirculating Ball Bearing Guide

Position Sensing: For Proximity Sensor

Magnet: with Magnet

Type of Mounting: with Accessories

Materials: Cast Aluminum

Weight: 9.57 kg
