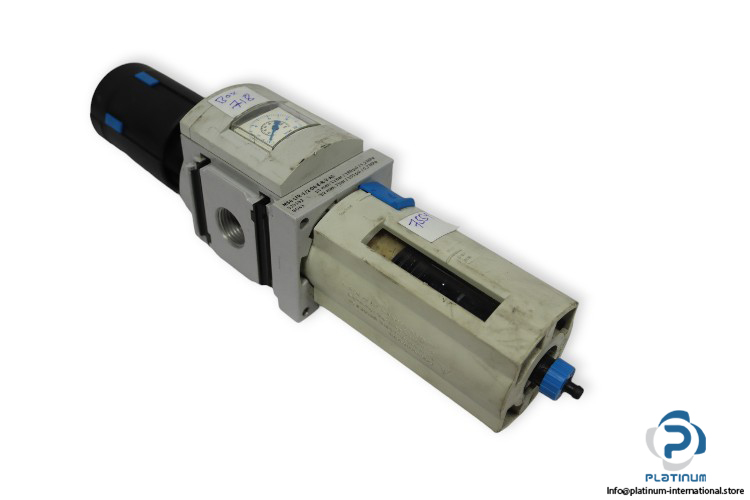

Festo 529182 Filter Regulator

Manufacturer: FESTO
Type: filter regulator

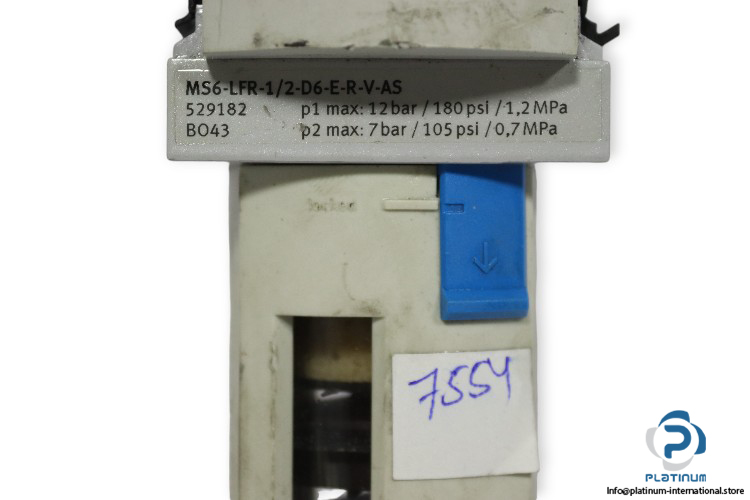

Model: MS6-LFR-1/2-D6-E-R-V-AS
part no.: 529182

Size: 6
Actuator lock: Rotary knob with detent
Mounting position: Vertical +/- 5°
Grade of filtration: 40 µm
Condensate drain: Fully automatic, Manual, non-detenting

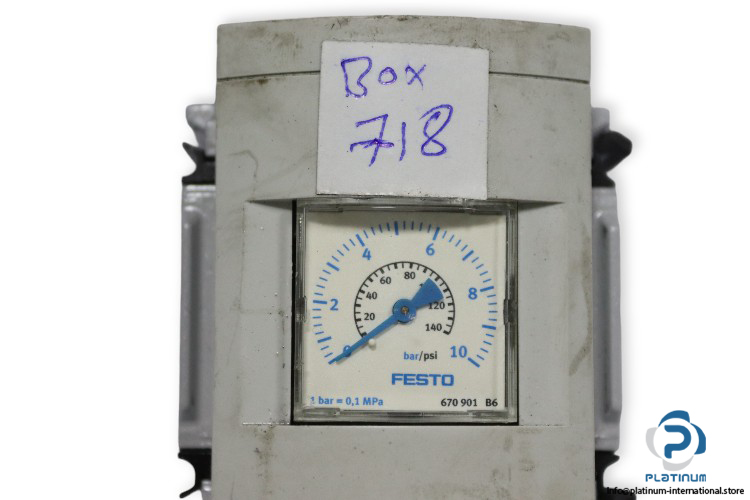

Structural design: Filter regulator with pressure gauge
Max. condensate volume: 38 ml
Controller function: Outlet pressure constant, With secondary exhausting
Bowl guard: Plastic bowl guard
Degree of condensate separation: >75 %
Operating pressure: 0.2 MPa … 1.2 MPa
Operating pressure: 2 bar … 12 bar
Pressure regulation range: 0.3 bar … 7 bar
