Festo 529854 Branching Module
Kullanılmış
Stokta1 birimSevkiyata hazır
Dal Modülü FESTO MS6-FRM-1/2-Y sıkıştırılmış hava sistemleri için dal modülü, yüksek akış kapasitesi, sağlam alüminyum muhafaza ve güvenilir pnömatik dağıtım sunar.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

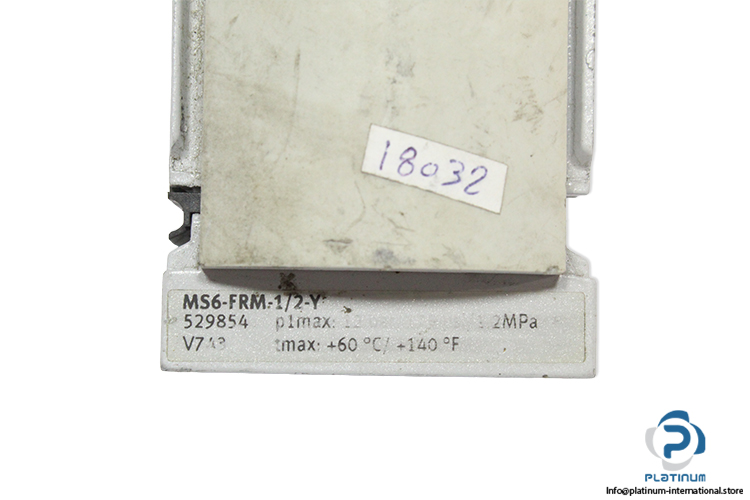

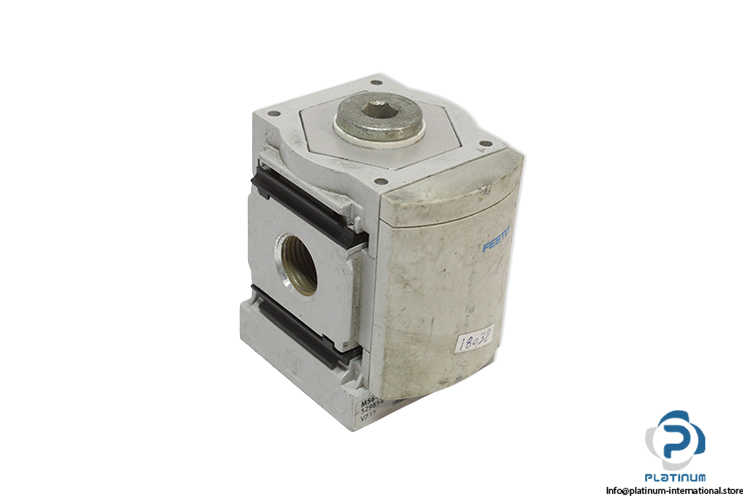

FESTO MS6-FRM-1/2-Y Branching Module
The FESTO MS6-FRM-1/2-Y is a robust branching module designed for efficient distribution of compressed air within pneumatic systems. Built with a durable die-cast aluminum housing, it ensures reliable airflow management, high flow capacity, and stable performance in industrial environments.
Manufacturer: FESTO
Type: Branching Module
Model: MS6-FRM-1/2-Y
MRN: 529854
| Operating Medium | Compressed Air |
| Structural Design | Branching Module |
| Symbol | 00995602 |
| Operating Pressure | 0 bar / 12 bar |
| Standard Nominal Flow Rate (Main Flow Direction 1 †’ 2) | 14,700 l/min |
| Standard Nominal Flow Rate (Outlet at Top) | 4,400 l/min |
| Standard Nominal Flow Rate (Outlet Down) | 4,600 l/min |
| Operating Voltage Range AC | 0 V / 250 V |
| DC Operating Voltage Range | 0 V / 125 V |
| Ambient Temperature | -10 °C / 60 °C |
| Housing Material | Die-Cast Aluminum |
| Connection | G1/2 |
