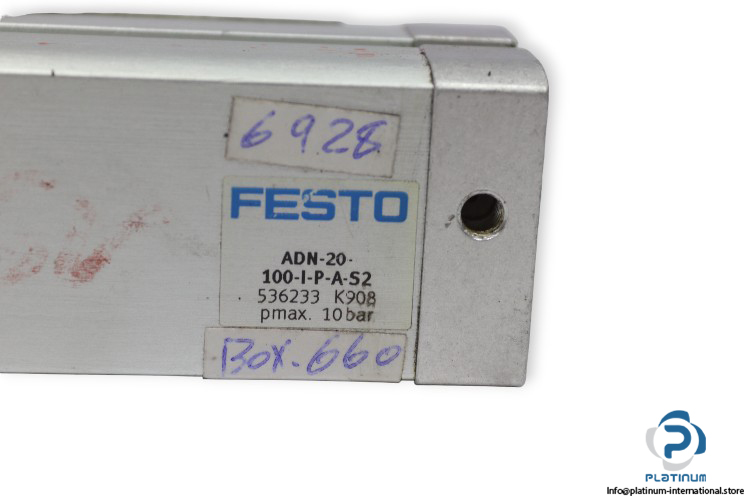

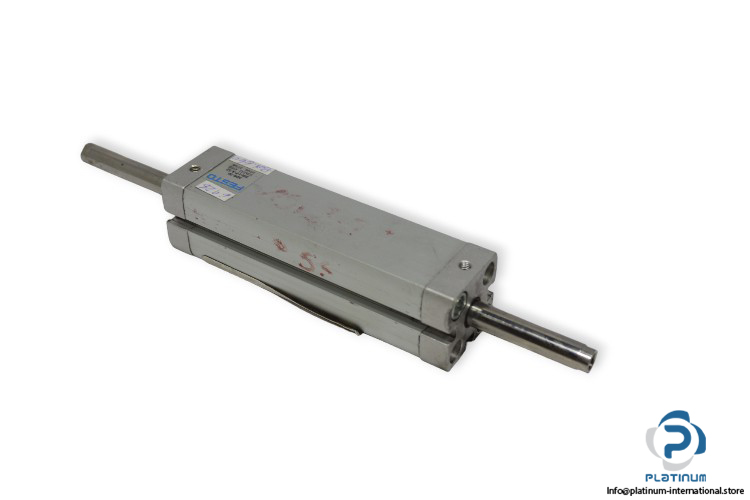

Festo 536233 Compact Cylinder

Manufacturer: FESTO
Type: Compact Cylinder
Model: ADN-20-100-I-P-A-S2
Part No.: 536233

Stroke Length: 100 mm
Piston Diameter: 20 mm
Operating medium: Compressed air
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Cushioning: Elastic cushioning rings/pads at both ends
Pneumatic Connection: 5 mm
Flange screws material: Steel
Cover material: Wrought aluminum alloy, anodized
Ambient temperature: -40 °C … 120 °C
