Festo 536303 Compact Cylinder
Compact Cylinder

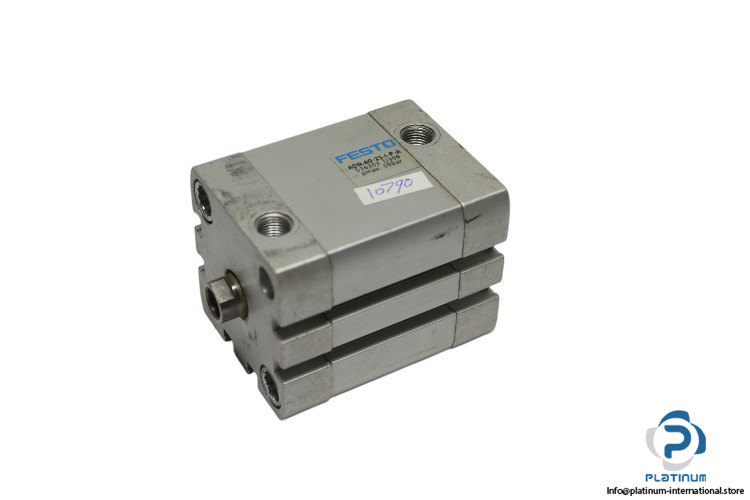

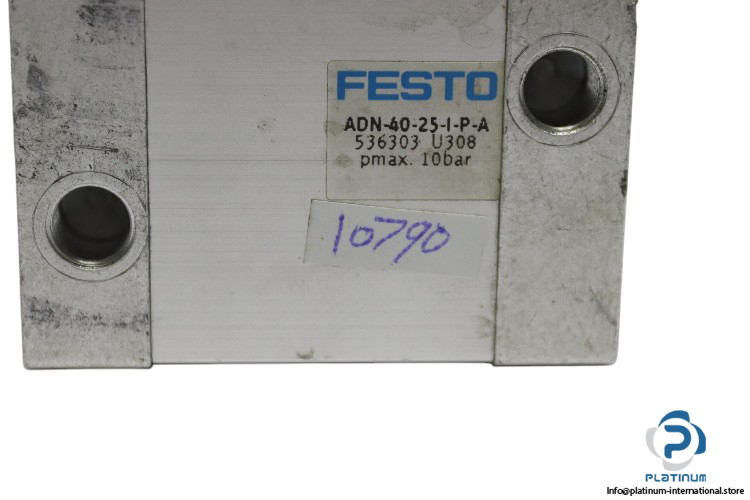

FESTO ADN-40-25-I-P-A Compact Cylinder is a high-performance pneumatic actuator with a 25 mm stroke and a 40 mm piston diameter. Designed for precision motion, it features a smooth-anodized aluminum barrel, elastic cushioning, and a double-acting operation for enhanced efficiency.FESTO ADN-40-25-I-P-A Compact Cylinder
The FESTO ADN-40-25-I-P-A Compact Cylinder is a high-performance pneumatic actuator designed for precise and efficient motion control. Its compact and lightweight design, combined with smooth-anodized aluminum construction, ensures durability and reliability in various industrial applications. Featuring a double-acting mode of operation and elastic cushioning rings, it delivers smooth and controlled movement under high-pressure conditions.
- Manufacturer: FESTO
- Type: Compact Cylinder
- Model: ADN-40-25-I-P-A
- Part No.: 536303
Technical Specifications
- Stroke Length: 25 mm
- Piston Diameter: 40 mm
- Piston Rod Thread: M8
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensing
- Variant: Piston rod at one end
- Material of Cylinder Barrel: Wrought aluminum alloy, smooth-anodized
- Pneumatic Connection: G1/8
- Temperature Range: -20 … 80 °C
