Festo 537984 Electronics Module
Kullanılmış
Stokta2 ünitelerSevkiyata hazır
55,55$
ELECTRONICS MODULE
FESTO VMPA2-FB-EMG-4 electronics module for pneumatic valve diagnostics and efficient control of up to 4 solenoid coils.AircoilControlCurrentDiagnosticsElectronicsFestoIndustrialInterfacelowModulePneumaticsolenoidValveVMPA2-FB-EMG-4
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

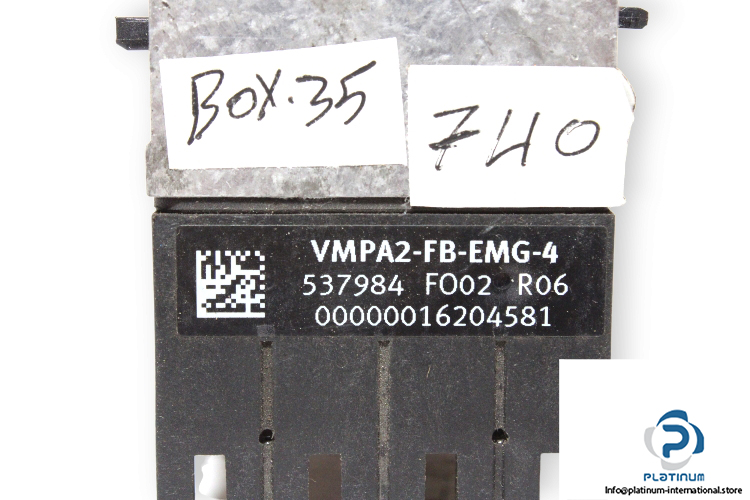

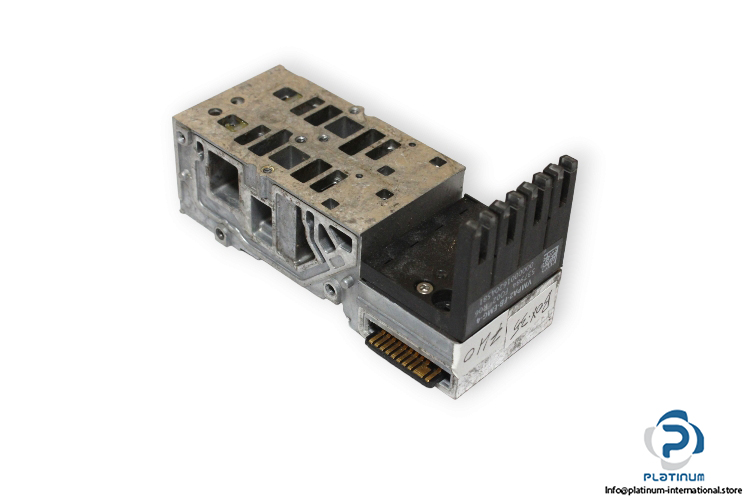

FESTO VMPA2-FB-EMG-4 ELECTRONICS MODULE
The FESTO VMPA2-FB-EMG-4 is a high-performance electronics module designed for precise pneumatic control. With diagnostic capabilities and low current consumption, it efficiently manages solenoid valve operations in industrial air systems.
Manufacturer: FESTO
Type: Electronics Module
Model: VMPA2-FB-EMG-4
Part No.: 537984
| Fluid | Air |
| Diagnostics | Undervoltage of Pneumatic Valves |
| Valve Positions No. Max. | 2 |
| Solenoid Coils No. Max. | 4 |
| Intrinsic Current Consumption at Operating Voltage | 8 mA |
| Nominal Pick-Up Current Per Solenoid Coil | 99 mA to 24 ms |
| Nominal Current with Current Reduction | 18 mA after 24 ms |
