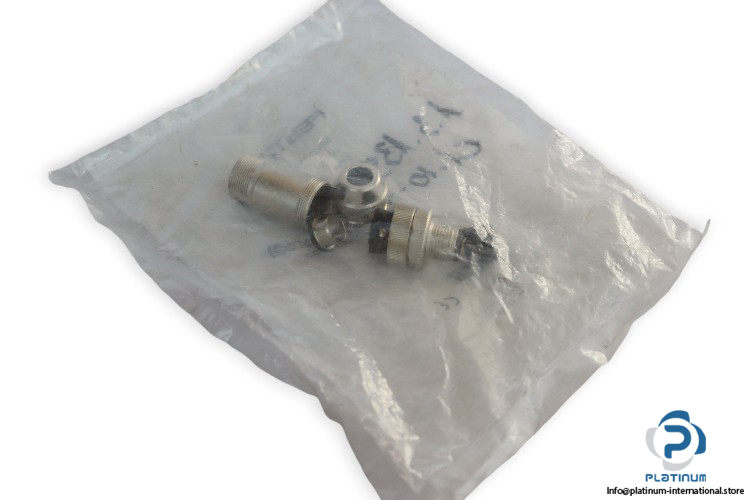

Festo 543109 Plug Connector
Yeni
Talep üzerine mevcut

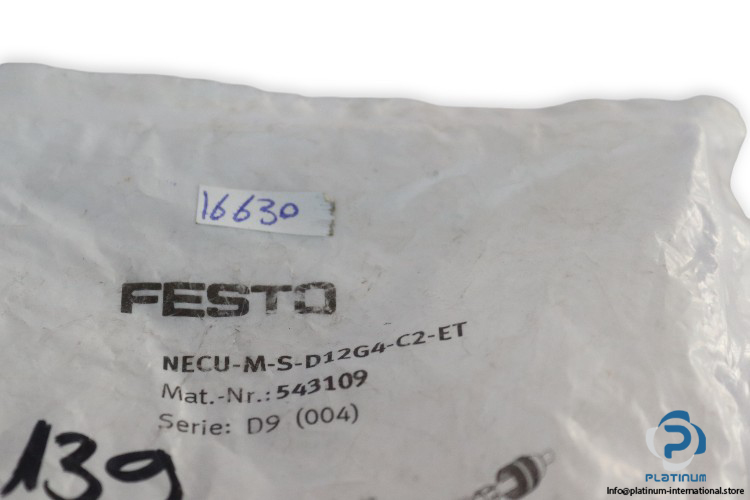

Üretici: FESTO Tip: Fiş Konnektörü Model: NECU-M-S-D12G4-C2-ET MRN: 543109
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
Manufacturer: FESTO
Type: Plug Connector
Model: NECU-M-S-D12G4-C2-ET
MRN: 543109
Electrical connection 1: Straight plug connector, M12x1, 4-pin, D-coded, screenable
Plug encoding: D
Electrical connection 2: Screw terminal, can be screened
Operational voltage range DC: 0 V … 250 V
Operational voltage range AC: 0 V … 250 V
Connection cross section: 0.14 mm² … 0.75 mm²
Degree of protection: IP67
Ambient temperature: –25 °C … 85 °C
Material housing: Die-cast zinc, nickel-plated
Material electrical contact: Gold-plated brass
