Festo 546188 Electrical Interface
Kullanılmış
Stokta1 birimSevkiyata hazır
ELECTRICAL INTERFACE
Fieldbus-compatible electrical interface with diagnostics and I/O capabilities. Supports up to 48 valve coils with extension and operates in harsh industrial environments with IP65 protection.24v325-pin533118AutomationBUSComponentConnectorCPV10CPV10-GE-DI02-8DiagnosticsElectricalFestoFieldbusIndustrialinputsInterfaceIP65M12Moduleoutputs
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

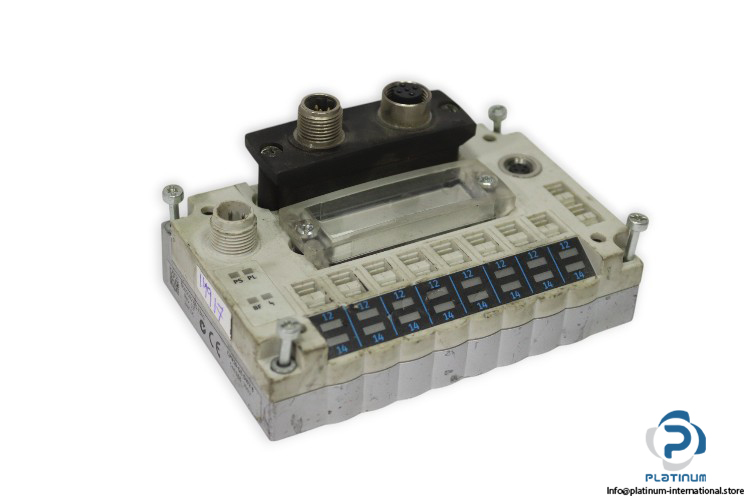

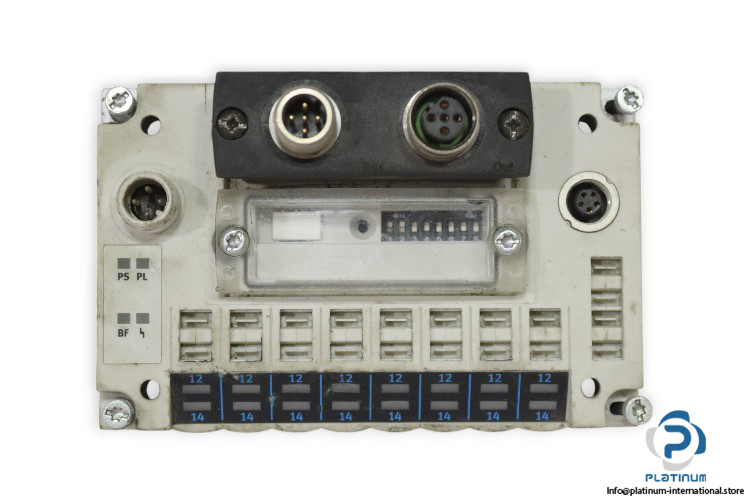

FESTO CPV10-GE-DI02-8 ELECTRICAL INTERFACE
Compact and intelligent electrical interface for industrial automation systems. This advanced unit allows seamless communication via fieldbus and provides direct control of valve terminals and I/O signals. Optimized for diagnostics and modular system integration.
Manufacturer: Festo
Type: Electrical Interface

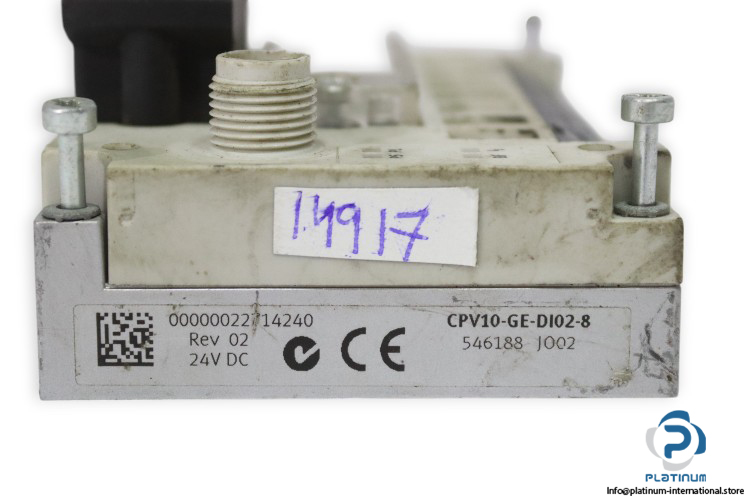

Model: CPV10-GE-DI02-8
Part No.: 546188
Ref. No.: 00000022 14240
Ref. Code: JO02
Rev.: 02
| Nominal Voltage | 24¯V¯DC (operating range: 20.4“26.4¯V) |
| Max Valve Coils | 16 directly, up to 48 with CP-string extension |
| Inputs / Outputs | 32 inputs & 32 outputs |
| Communication Bus | Cyclic fieldbus (Baud rate: 9.6¯kBaud“12¯MBaud) |
| Diagnostics | Device-specific diagnostics (DPV0) including short-circuit, undervoltage, missing module warnings |
| Electronics Current | 100¯mA (plus sensor/load-dependent supply) |
| Degree of Protection | IP65 |
| Temperature Ambient Range | -5 to 50¯°C |
| Housing Material | Die-cast aluminum; Cover: PA-reinforced; Seals: CR/NBR |

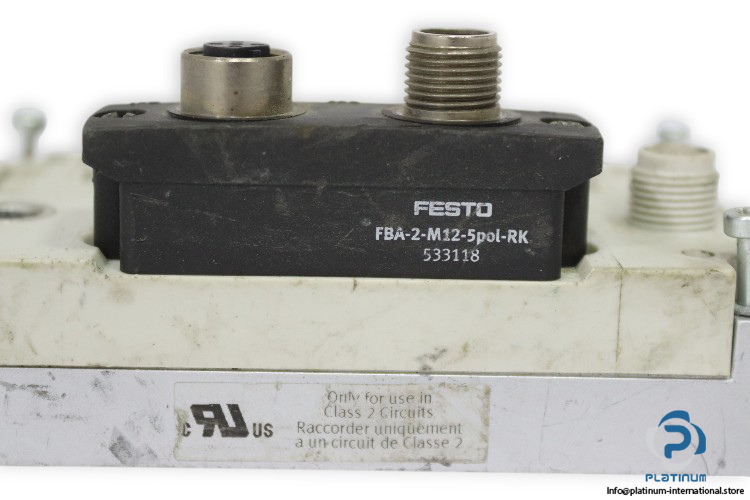

| Included Attachment | FESTO 533118 BUS CONNECTION |
| Part No. | 533118 |
| Fieldbus Interface | Socket and plug, M12×1, 5‘pin, B‘coded |
| Protection Rating | IP65 (IEC¯60529) |
| Ambient Temp | 0 to 50¯°C |
| Humidity | Up to 95¯% non‘condensing |
| Sealing Material | NBR |
| Corrosion Resistance | CRC¯1 (Low stress) |
