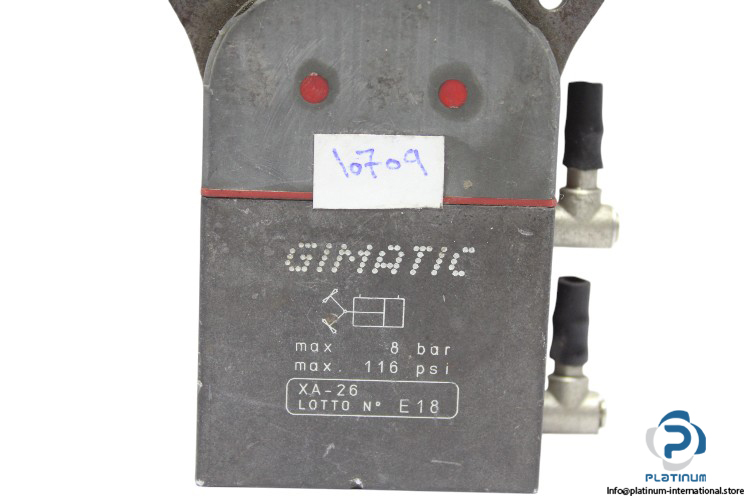

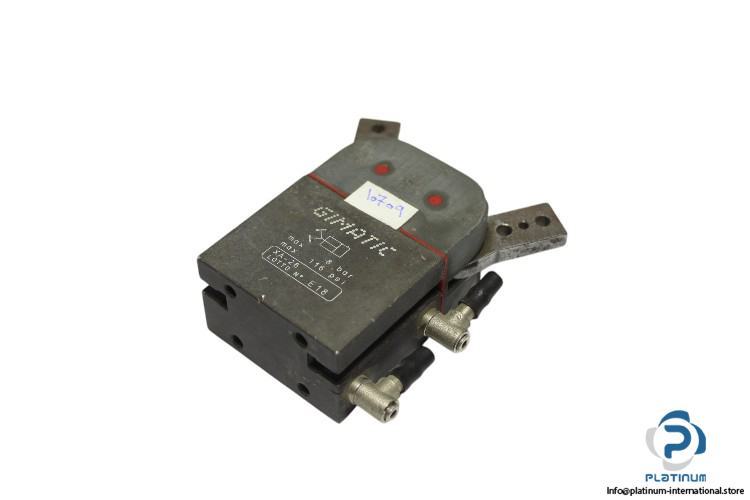

Gimatic XA-26 Angular Self-Centering Pneumatic 2 JAW Gripper
Angular Self-Centering Pneumatic Gripper
GIMATIC Angular Self-Centering Pneumatic Gripper XA-26 with 158 / 170 Ncm torque, 2 x 32° stroke, and double-acting actuation. Features a 5 mm pneumatic connection and operates within a temperature range of 5 / 60 °C, ideal for industrial applications.GIMATIC Angular Self-Centering Pneumatic Gripper XA-26
The GIMATIC Angular Self-Centering Pneumatic Gripper XA26 is designed for precision handling and reliable performance in industrial automation applications. This double-acting gripper operates with compressed air and provides a torque range of 158 / 170 Ncm, making it ideal for tasks that require secure and consistent gripping. The gripper features a 2 x 32° stroke, ensuring efficient and accurate actuation. Constructed from lightweight aluminium, it ensures durability while maintaining a compact form. It supports pneumatic connections of 5 mm and operates within a temperature range of 5 / 60°C.
Manufacturer: GIMATIC
Type: Angular Self-Centering Pneumatic Gripper
Model: XA-26
Part No.: E18
Technical Specifications
- Fluid: Compressed Air
- Torque: 158 / 170 Ncm
- Stroke: 2 x 32°
- Operating Pressure Max.: 2 / 8 bar
- Actuation: Double Acting
- Material: Aluminium
- Pneumatic Connection: 5 mm
- Temperature: 5 / 60 °C
