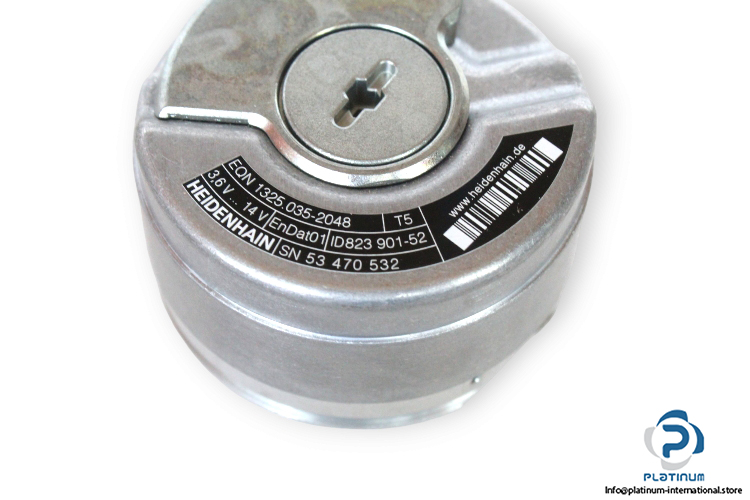

Heidenhain EQN 1325.035-2048 Absolute Rotary Encoder
Yeni
Stokta1 birimSevkiyata hazır
900,00$
ABSOLUT ROTARY ENCODER HEIDENHAIN EQN1325.035-2048, EnDat01 protokolü, 9,25 mm konik mil, 2048 hat ve 4096 tur ile yüksek hızlı mutlak kodlayıcıdır, endüstriyel ortamlarda hassas kontrol için tasarlanmıştır.
122048AbsoluteAutomationBitEncoderEnDat01EQN1325.035-2048HeidenhainHigh-SpeedIndustrialLinePrecisionRotarySensorshafttapered
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
HEIDENHAIN EQN1325.035-2048 ABSOLUTE ROTARY ENCODER
The HEIDENHAIN EQN1325.035-2048 is a high-precision absolute rotary encoder designed for demanding industrial automation and motion control systems. With advanced EnDat01 communication and a tapered shaft design, it ensures accuracy and stability in high-speed operations.
Manufacturer: HEIDENHAIN
Type: Absolute Rotary Encoder
Model: EQN1325.035-2048
ID NO: 823 901-52
SN: 53 470 532
| Designation | EnDat01 |
| Shaft Type | Tapered Shaft |
| Shaft Size | 9.25 mm |
| Shaft Speed | 12000 rpm |
| Revolutions | 4096 (12 bits) |
| Rated Voltage | 3.6 / 14 V DC |
| Rated Current | 105 mA |
| Power Consumption | 0.7 / 0.8 W |
| Outer Diameter | 58 mm |
| Electrical Connection | 12 Pin |
| Line Count | 2048 |
| Protection Class | IP40 |
| Operating Temperature | -40 / 115 °C |
