Heidenhain ROD 426 500 C5 Rotary Encoder
Kullanılmış
Stokta1 birimSevkiyata hazır
99,99$
ROTARY ENCODER
High-speed HEIDENHAIN rotary encoder with 6 mm shaft, 5V DC input, IP67 rating, and M23 flange socket for accurate and robust motion feedback.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

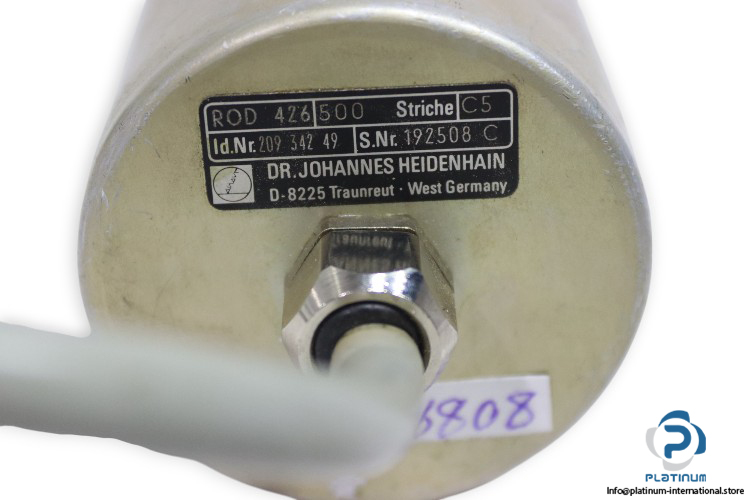

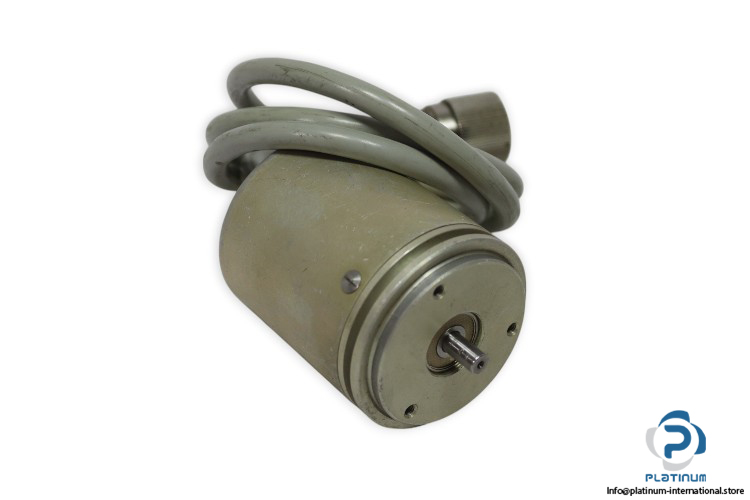

HEIDENHAIN ROD 426 500 C5 ROTARY ENCODER
The HEIDENHAIN ROD 426 500 C5 Rotary Encoder is a high-performance motion control component designed for precision feedback in demanding industrial environments. With robust mechanical design, high-speed operation, and IP67 protection, it ensures reliable performance in harsh conditions.
Manufacturer: HEIDENHAIN
Type: Rotary Encoder
Model: ROD 426 500 C5
Part No.: 209 342 49
Electrical Connection:

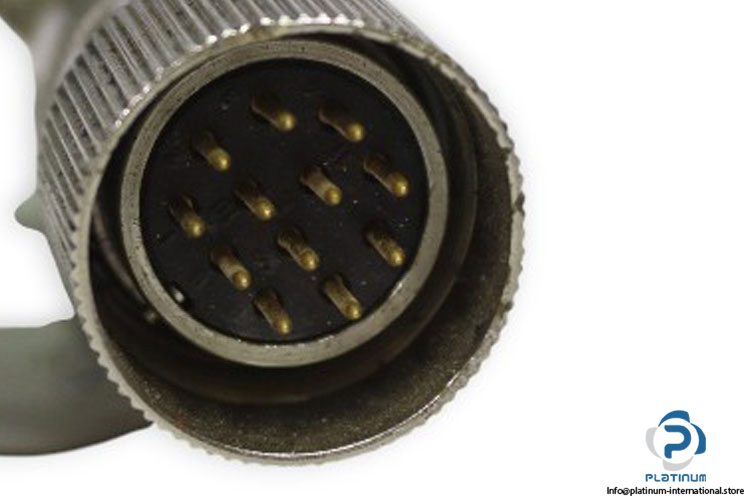

Flange socket M23, radial and axial
Cable 1 m/5 m, with or without M23 coupling
Operating Temperature:
| Shaft Diameter | 6 mm |
| Voltage Supply | 5V DC |
| Current Consumption (No Load) | 120 mA |
| Mechanical Permissible Speed (n) | 16000 rpm |
| Starting Torque | 0.01 Nm (at 20 °C) |
| Degree of Protection | IP67 |
| Flange socket or fixed cable | -40 / 100 °C |
| Moving cable | -10 / 100 °C |
