Motion Control Rotary Encoders

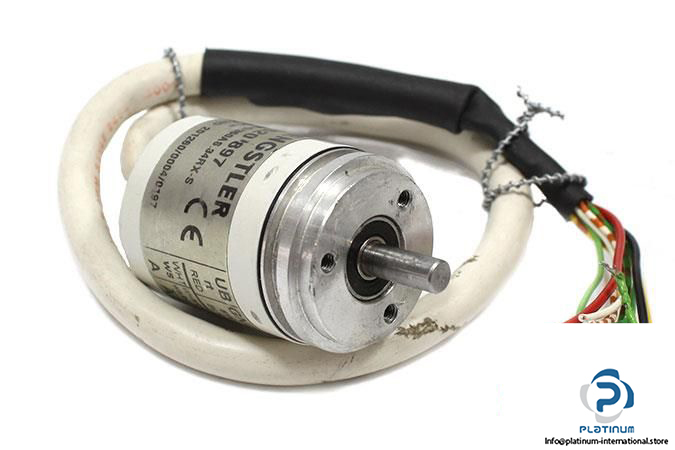

Hengstler RI30-O/360AS.34RX-S Incremental Encoder

Name: HENGSTLER RI30-O/360AS.34RX-S INCREMENTAL ENCODER
Brand: HENGSTLER
SKU: 965608
Price: 195.00 USD
Availability: InStock




HENGSTLER-RI30-O360AS34RX-S-INCREMENTAL-ENCODER5

hengstler-ri30-o360as34rx-s-incremental-encoder6

Kullanılmış

Stokta1 birimSevkiyata hazır

195,00$

ARTIMLI ENKODER Hengstler RI30-O/360AS.34RX-S, RS 422+Alarm çıkışlı, sağlam mil ve 5 mm çaplı yüksek hassasiyetli 360 PPR artımlı enkoder olup, kompakt otomasyon sistemleri için uygundur.

Üretici

HENGSTLER

SKU

965608

Kategori

Rotary Encoders

Koşul

Kullanılmış

360 5VDC Compact Encoder Flange Hengstler Incremental Industrial PPR RI30-O/360AS.34RX-S RS422 shaft Solid Synchro

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

HENGSTLER RI30-O/360AS.34RX-S INCREMENTAL ENCODER

The Hengstler RI30-O/360AS.34RX-S is a compact, high-resolution incremental encoder designed for precise positioning and speed control in demanding automation and industrial applications. With a 360 PPR resolution and RS 422+Alarm output, it delivers reliable signal transmission and performance in compact systems.

Manufacturer: HENGSTLER

Type: Incremental Encoder

Model: RI30-O/360AS.34RX-S

Part No: 0520897

SE NO: 201260/0004

Flange Type	Synchro Flange
Shaft Type	Solid Shaft
Shaft Diameter	5 mm
Resolution	360 Pulse Per Revolution (PPR)
Voltage Supply	5VDC
Output Circuits	RS 422+Alarm
Output Frequency	0 / 100 KHz
Connection Type	Cable, Axial
Housing Diameter	30 mm
Material Housing	Aluminum
Temperature Range	-10 / 70 °C
