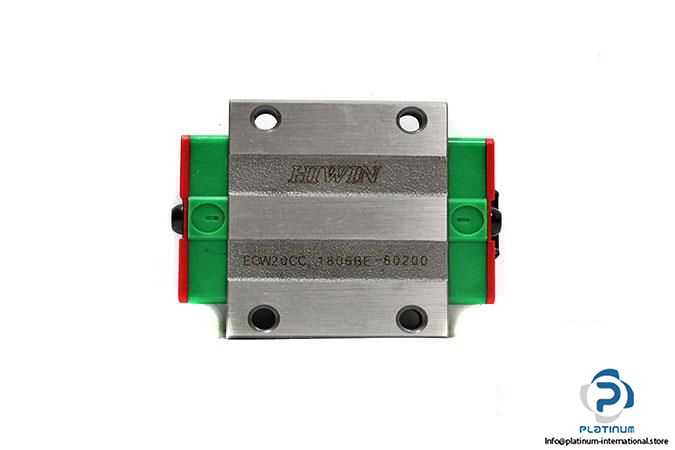

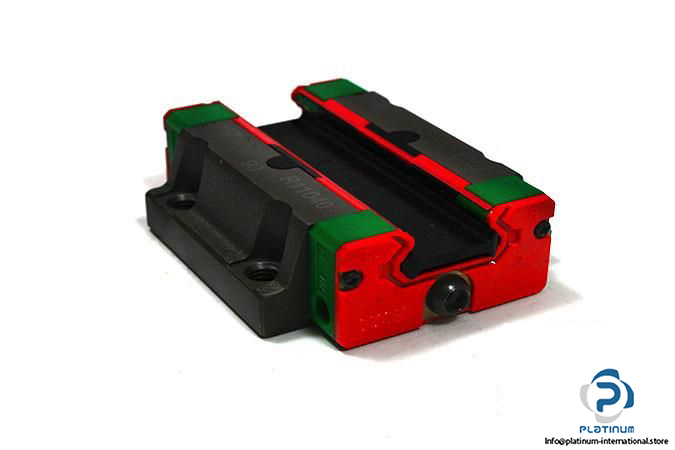

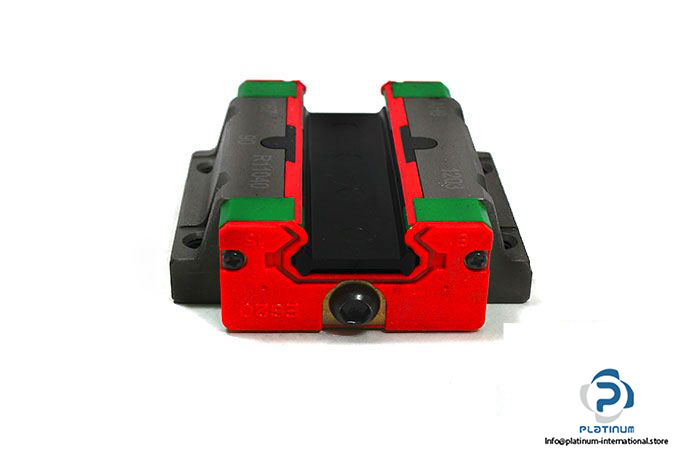

Hiwin EGW20CC Linear Guideway Block
Yeni
Stokta24 ünitelerSevkiyata hazır
56,34$
DOĞRUSAL RAY BLOĞU Hiwin EGW20CC flanş tip doğrusal ray bloğu, 20 mm boyutta, çift yönlü montaj ve ağır yük kapasitesine sahip, hassas ve sağlam doğrusal hareket uygulamaları için idealdir.
20BlockCarriageEGW20CCFlangeGuideGuidewayHeavyHiwinIndustrialLinearLoadM6mmMotionPrecisionrailSystem
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
HIWIN EGW20CC LINEAR GUIDEWAY BLOCK
The Hiwin EGW20CC linear guideway block is a precision-engineered flange-type carriage designed for high-load applications. With its compact 20 mm profile and dual-direction mounting flexibility, it ensures durability, accuracy, and smooth motion in demanding linear automation systems.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGW20CC 1806BE-60200
Size: 20 mm
| Block Height | 22 mm |
| System Height | 28 mm |
| Block Width (W) | 59 mm |
| Block Length (L) | 69.1 mm |
| Distances Between Holes | 49 mm, 32 mm |
| Thread Size | M6 |
| Rail Width | 20 mm |
| Rail Height | 15.5 mm |
| Block Type | Flange |
| Load Type | Heavy Load |
| Block Mounting Type | From Above or Below |
| Basic Dynamic Load Rating | 10.31 kN |
| Basic Static Load Rating | 21.13 kN |
