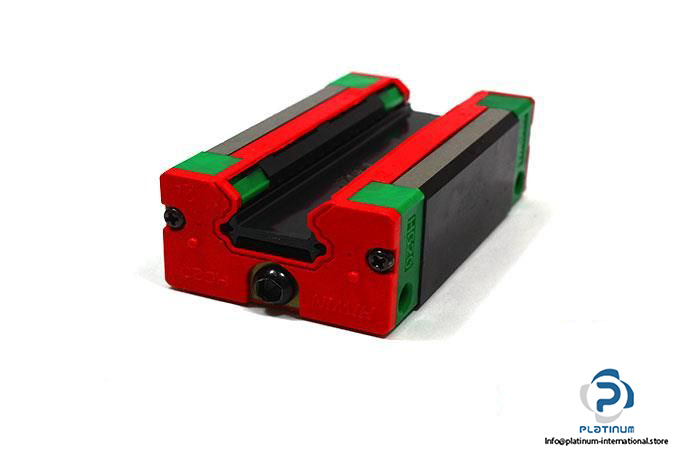

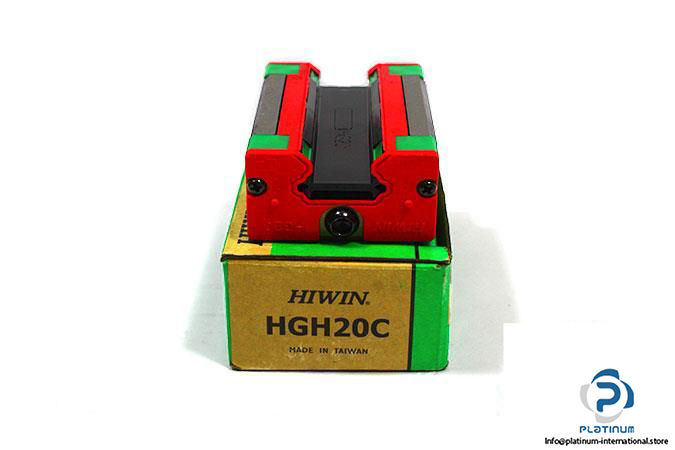

Hiwin HGH20CA Linear Guideway Block
Yeni
Stokta72 ünitelerSevkiyata hazır
55,28$
Hiwin'dan ağır yüklü kare lineer kılavuz blok, model HGH 20CAC, 20 mm boyutlu, üstten montajlı ve hassas hareket uygulamaları için yüksek dinamik/statik yük kapasiteli.
Kullanılmış
Stokta
Bu ürün ayrıca ikinci el olarak da mevcuttur
Kullanılmış Sürümü Görüntüle →
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
HIWIN HGH 20CAC LINEAR GUIDEWAY BLOCK
The Hiwin HGH 20CAC linear guideway block is built for precision linear motion in demanding industrial applications. Engineered for heavy load conditions, this square-type block offers high rigidity and smooth movement along 20 mm rails. Suitable for automation, CNC systems, and mechanical assemblies requiring top-mount stability and long-lasting performance.
Manufacturer: Hiwin
Type: Linear Guideway Block

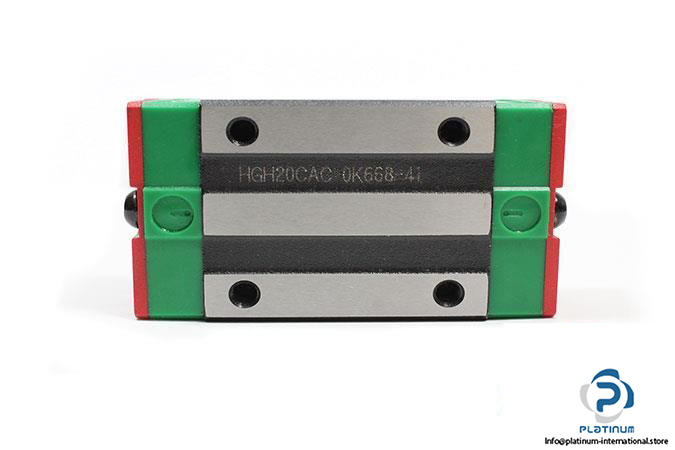

MNR: HGH 20CAC 0K668-41
| Size | 20 mm |
| Total Height H | 30 mm |
| Block Width W | 44 mm |
| Block Length L | 77.5 mm |
| Block Height | 25.4 mm |
| Rail Width | 20 mm |
| Rail Height | 17.5 mm |
| Distance Between Holes | 32, 36 mm |
| Block Type | Square |
| Load Type | Heavy Load |
| Block Mounting Type | From Top |
| Thread Size | M5 x 6 |
| Basic Dynamic Load Rating C | 27.1 kN |
| Basic Static Load Rating C‚ | 36.68 kN |
